Playback

Listening to FM/AM broadcasts

Connect the antenna. (Connecting FM/AM antennaslink)
Press TUNER to switch the input source to “Tuner”.

Bracket Open TV screen Bracket Close

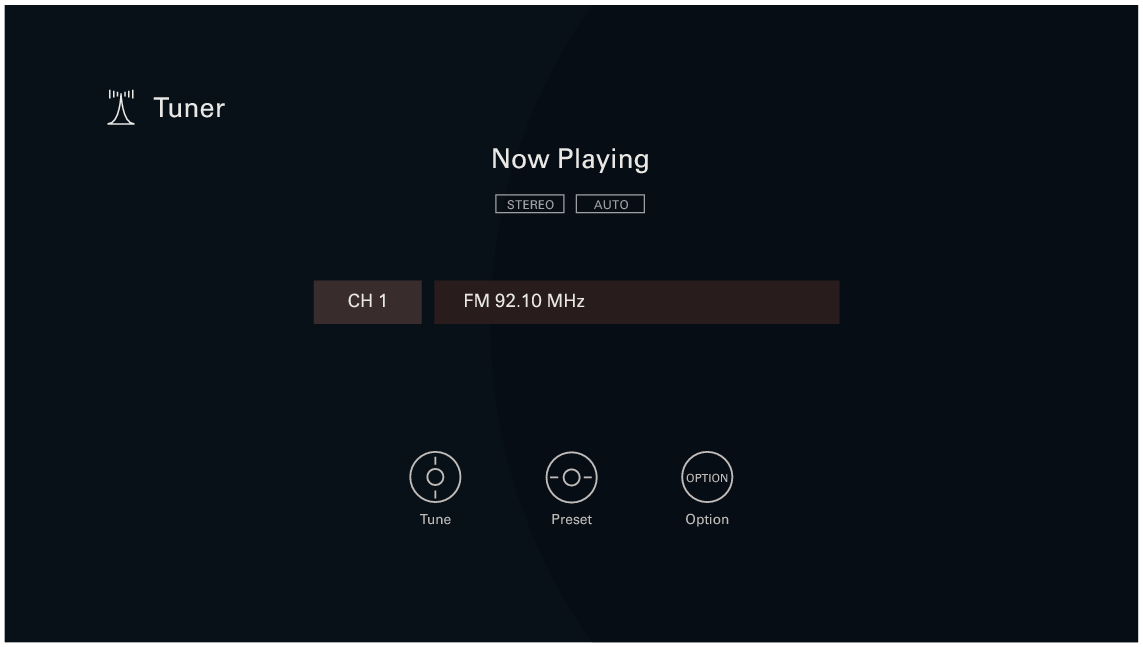

GUI Tuner Mz
Disp FM 92.10MHz Mz
Press OPTION.

The option menu screen is displayed.

Use cursor Up/Down to select “FM/AM”, then press ENTER.

This displays the reception band input screen.

Use cursor Left/Right to select “FM” or “AM”, then press ENTER.

FM:

When listening to an FM broadcast.

AM:

When listening to an AM broadcast.

Press TUNE + or TUNE – to select the station you want listen to.

Scanning is performed until it finds an available radio station. When it finds a radio station, it stops the scan automatically and tunes in.

The modes for receiving FM broadcasts consists of “Auto” mode that automatically searches available broadcast stations and “Manual” mode that lets you tune in using buttons to change the frequency. The default setting is “Auto”. You can also use “Direct Tune” to tune in by entering the frequency directly.

In “Auto” mode, you cannot tune in to radio stations if the reception is not good.
If this is the case, then use the “Manual” mode or “Direct Tune” mode to tune in.

Operation buttons

Function

TUNE +, –

Selects the radio station (up/down)

CH/PAGE  kurosankaku2 Sankaku-Reverse2

Selects preset radio stations

Cursor Up/Down

Selects the radio station (up/down)

Cursor Left/Right

Selects preset radio stations

Operations accessible through the option menu

Changing the “Dirac Live Filter” ( Finger See the Dirac Live Manual.)
