Remote control unit

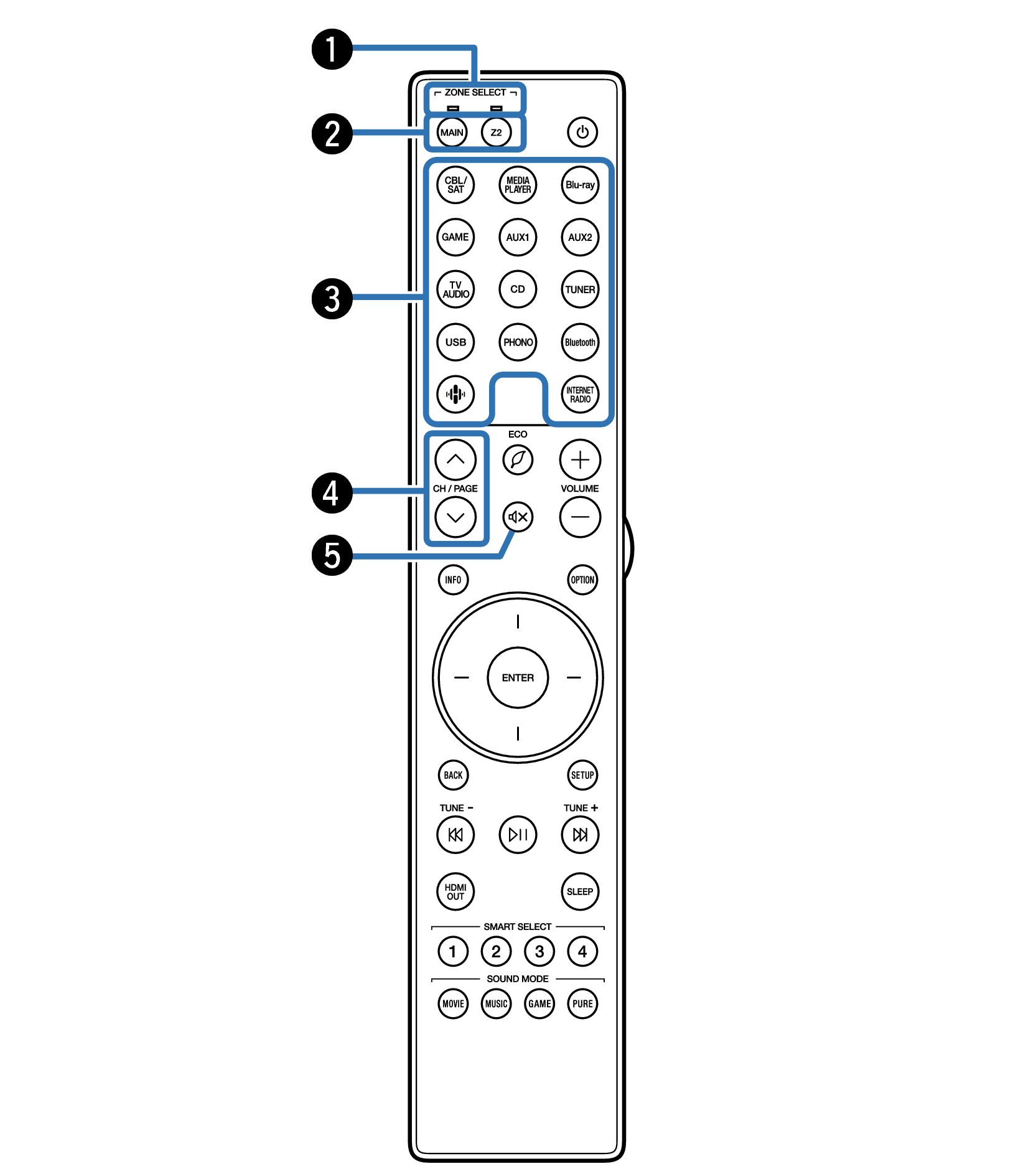

Zone mode indicators
The indicator of the zone that you are operating lights up.
ZONE SELECT buttons (MAIN, Z2)
These switch the zone (MAIN ZONE, ZONE2) that is operated through the remote control unit.
Input source select buttons
These selects the input source.
Channel/page search buttons (CH/PAGE
)
These select radio stations registered to presets or switch pages. link
MUTE button (
)
This mutes the output audio.

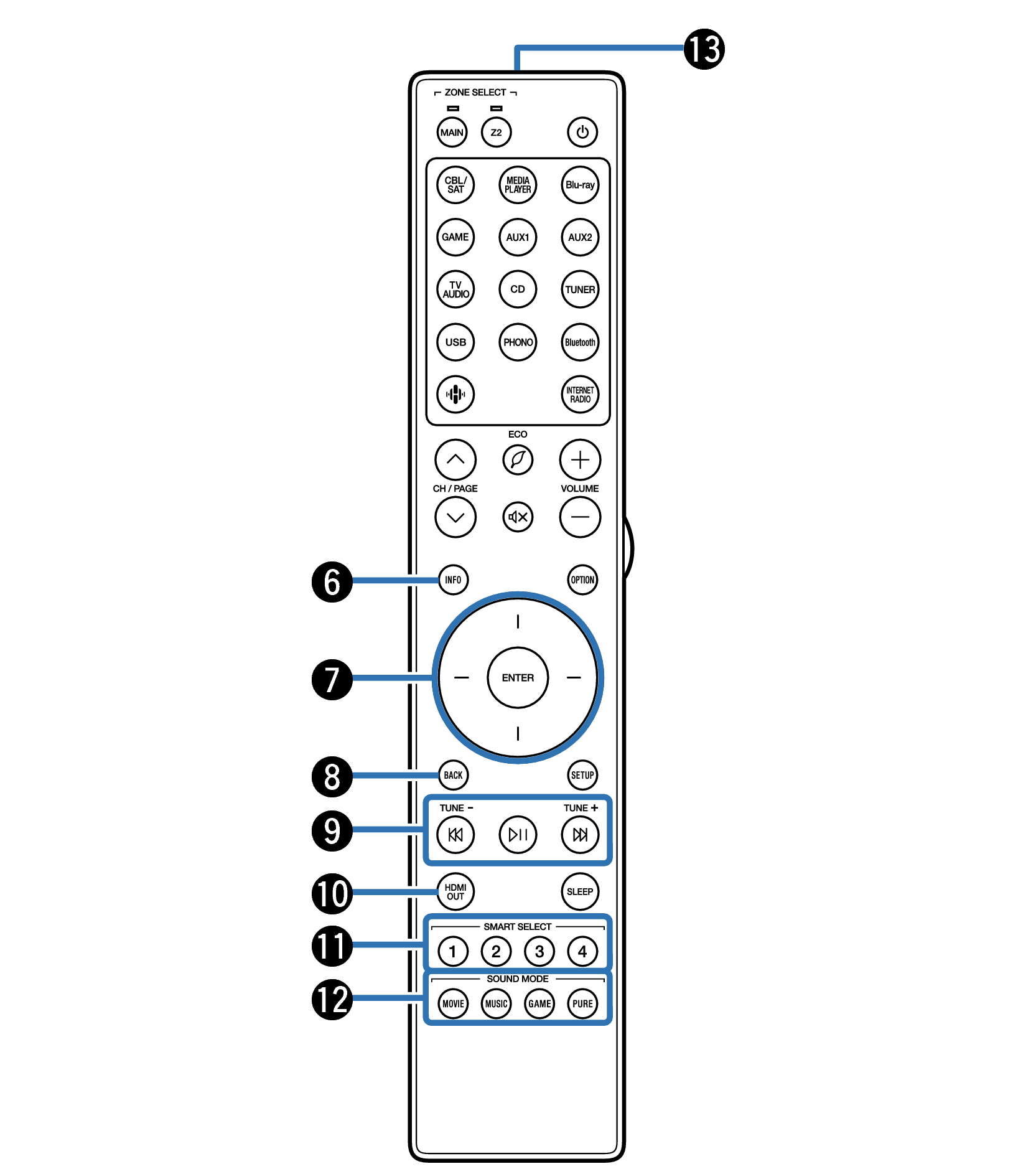

Information button (INFO)
This displays the status information on the TV screen. link
Cursor buttons
These select items.
BACK button
This returns to the previous screen.
System buttons
These perform playback related operations.
Tuning up / Tuning down buttons (TUNE +, –)
These select either FM broadcast or AM broadcast. link
HDMI OUT button
This sets the HDMI monitor output. link
SMART SELECT buttons (1 – 4)
These call up settings registered to each button, such as input source, volume level and sound mode settings. link
SOUND MODE buttons
These select the sound mode. link
Remote control signal transmitter
This transmits signals from the remote control unit. link
POWER button (
)
This turns the power on/off.
ECO Mode button (
)
This switches to ECO Mode. link
VOLUME buttons (
)
These adjusts the volume level.
Light button
This turns on the backlight for approx. 5 seconds. link
OPTION button
This displays the option menu on the TV screen.
ENTER button
This determines the selection.
SETUP button
This displays the menu on the TV screen. link
SLEEP button
This sets the sleep timer. link
