Standard (A, B, or A+B) connection (BTL connection)

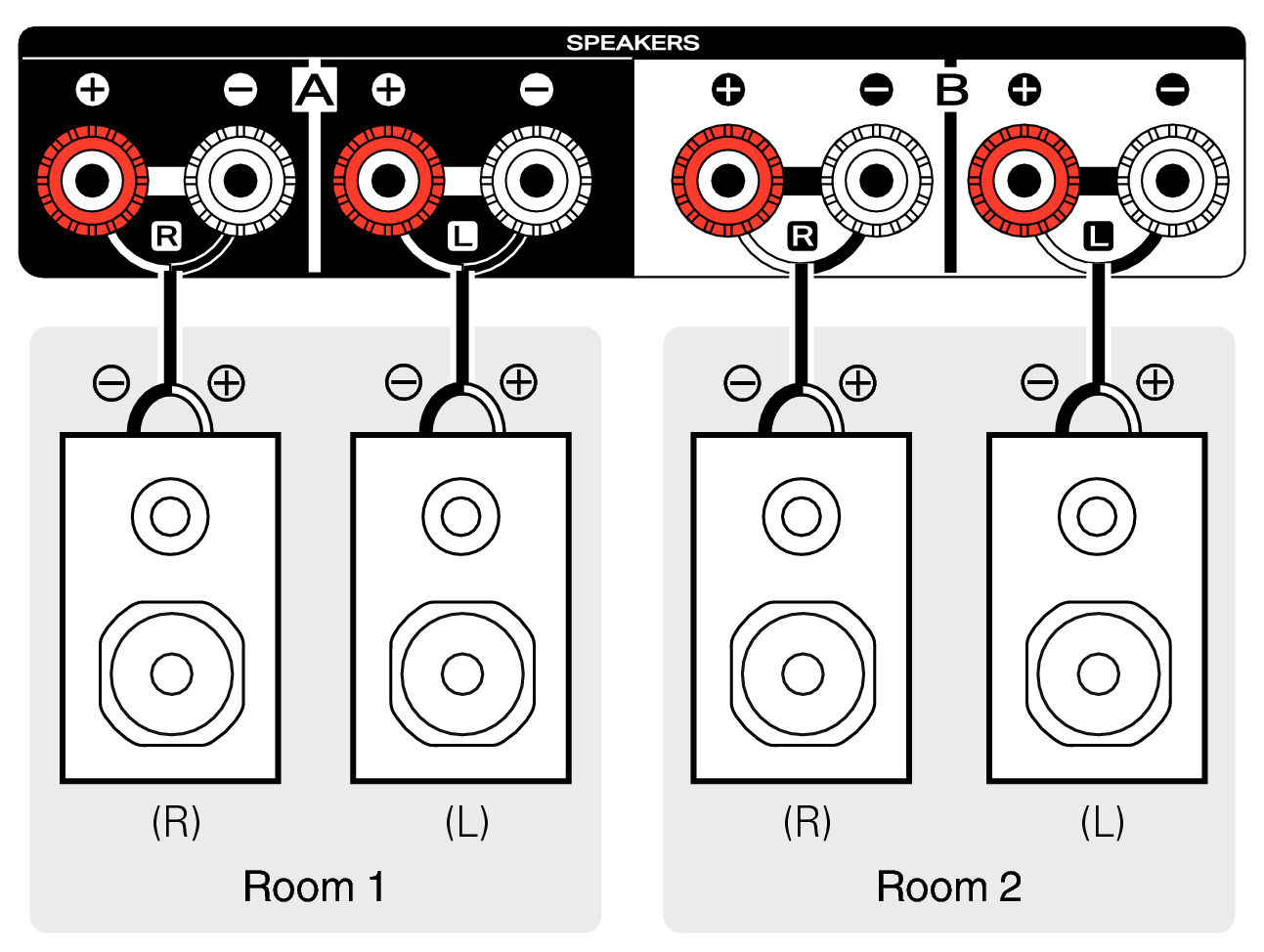

Conne SP AB MCR60n

When using this connection, set “Speakers” – “Amplifier Mode” in the settings menu to “Standard (A, B, or A+B)”. link

A pair of speakers can also be connected to the SPEAKERS A terminals.

By connecting speaker B in addition to speaker A, multi-drive connection can be performed to enjoy audio output separately or from both speakers. link

In this connection, you can connect one or two pairs of speakers to the unit. One pair of speakers can be driven by a two-channel amplifier, while the remaining two-channel amplifier can be used to drive the other pair of speakers. When connected to two pairs of speakers, you can play sound on all four speakers simultaneously or switch between them, and you can control the volume independently.

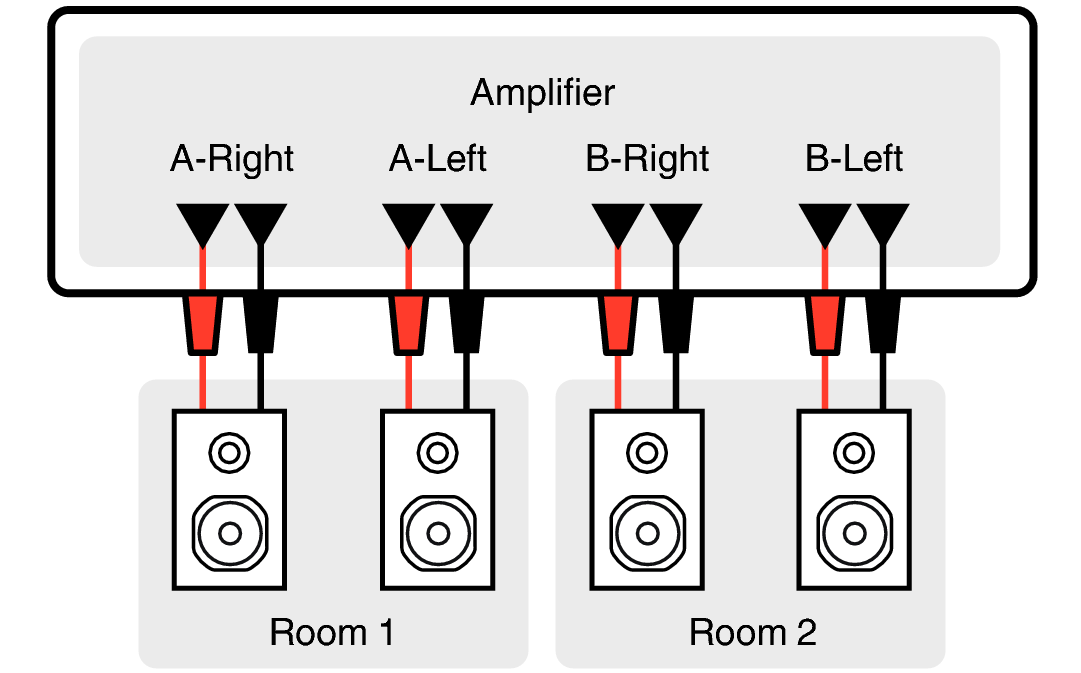

Pict Amp Mode Standard
NOTE

The same sound is output from both pairs. You cannot play two different sources on each pair.
