Parallel BTL connection

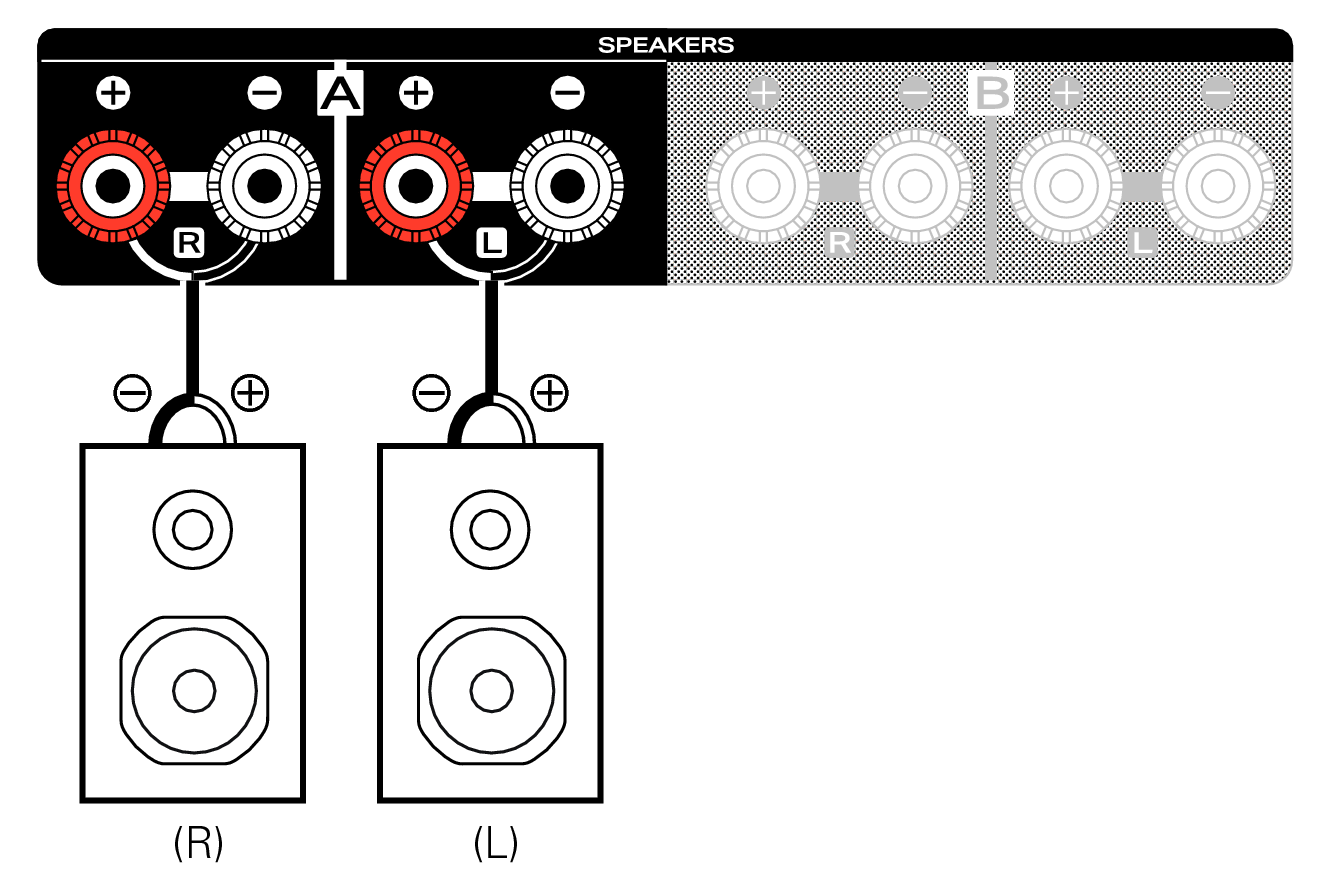

Conne SP A MCR60n 2

When using this connection, set “Speakers” – “Amplifier Mode” in the settings menu to “Parallel BTL”. link

In this connection, a pair of speakers connected to the SPEAKERS A terminals are driven by all four-channel amplifiers, achieving approximately twice the driving power. This improves control of the low-frequency range and enables you to enjoy more powerful, clearer sound. In this connection, only one pair of speakers can be connected.

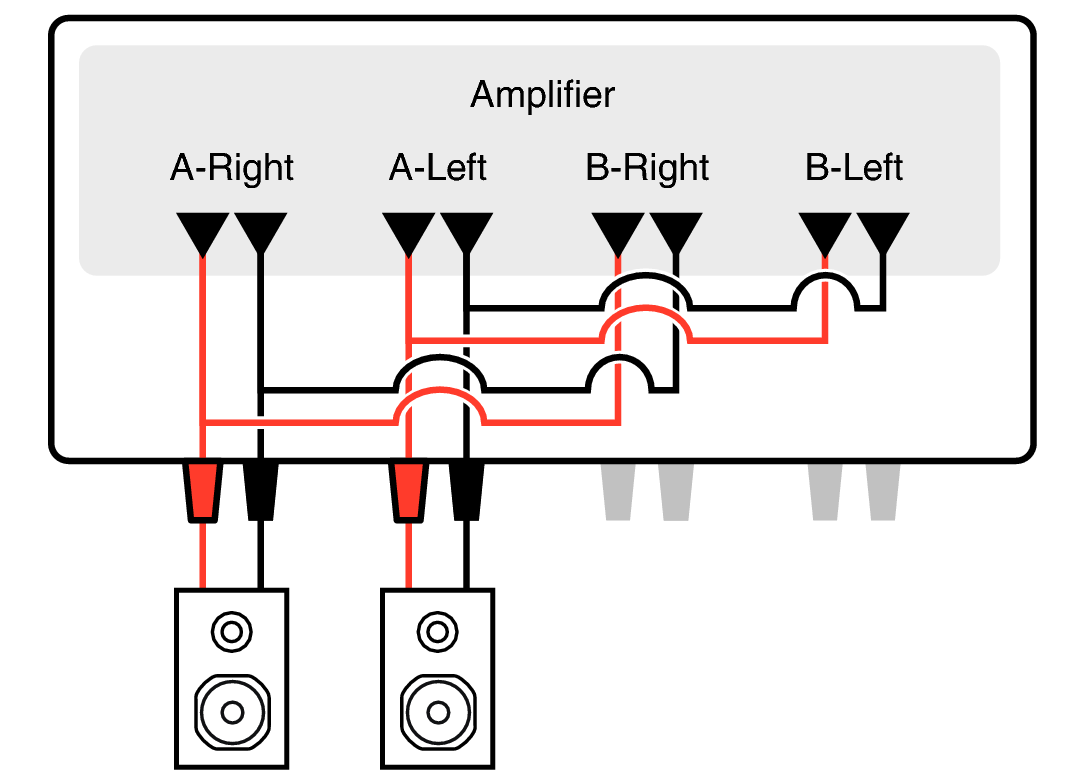

Pict Amp Mode Parallel BTL
