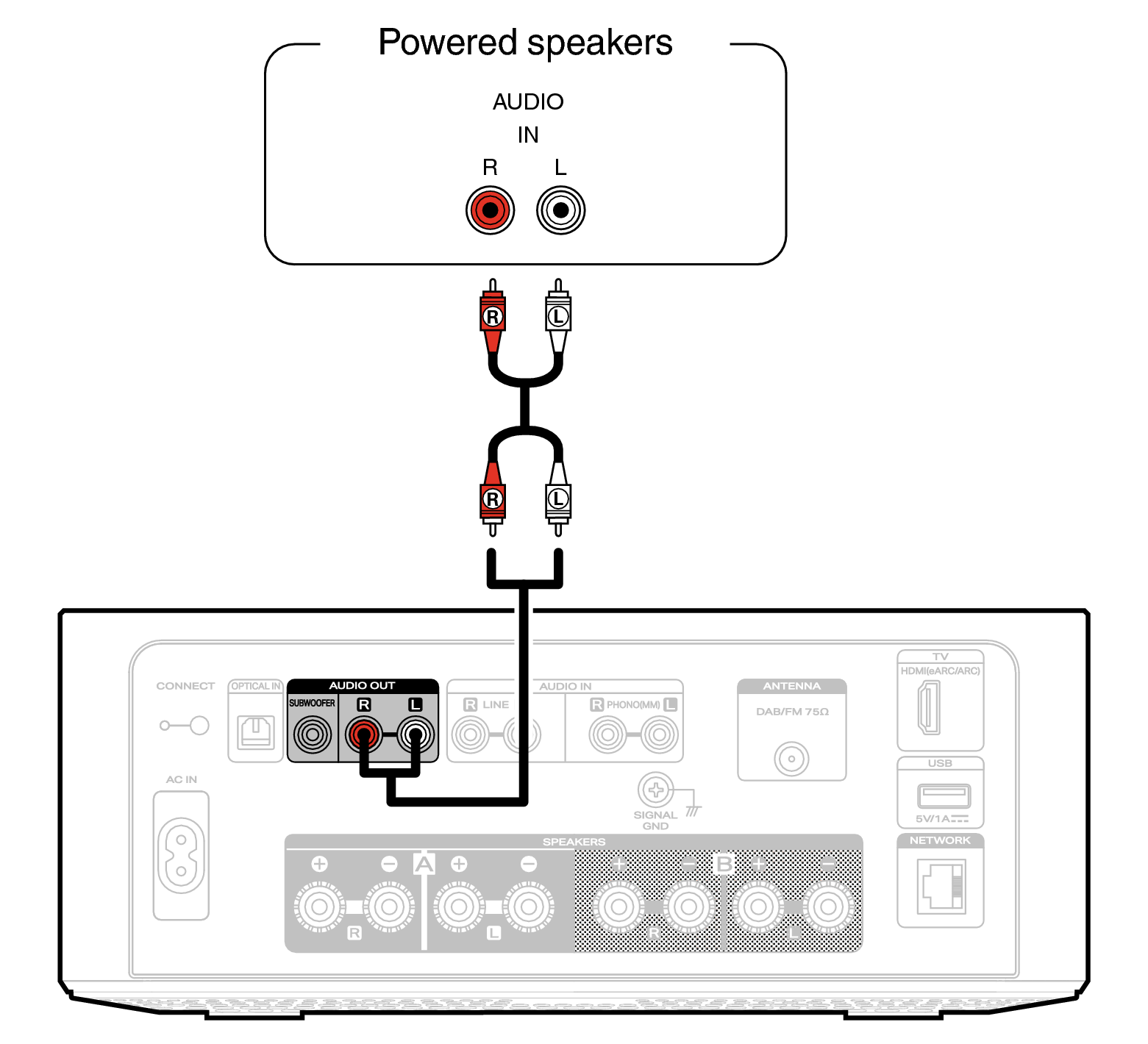

Connecting powered speakers

Conne Powered SP MCR60n

Volume control of analog audio output can be switched between “Variable” and “Fixed”. link

When the analog audio output is set to “Variable”, that volume is linked to speaker A volume. link

When the speaker for audio output is set to “Speaker B = On”, this unit does not perform analog audio output. link

When connecting powered speakers to this unit, see the owner’s manual of your powered speakers for details.
