Connecting a digital device

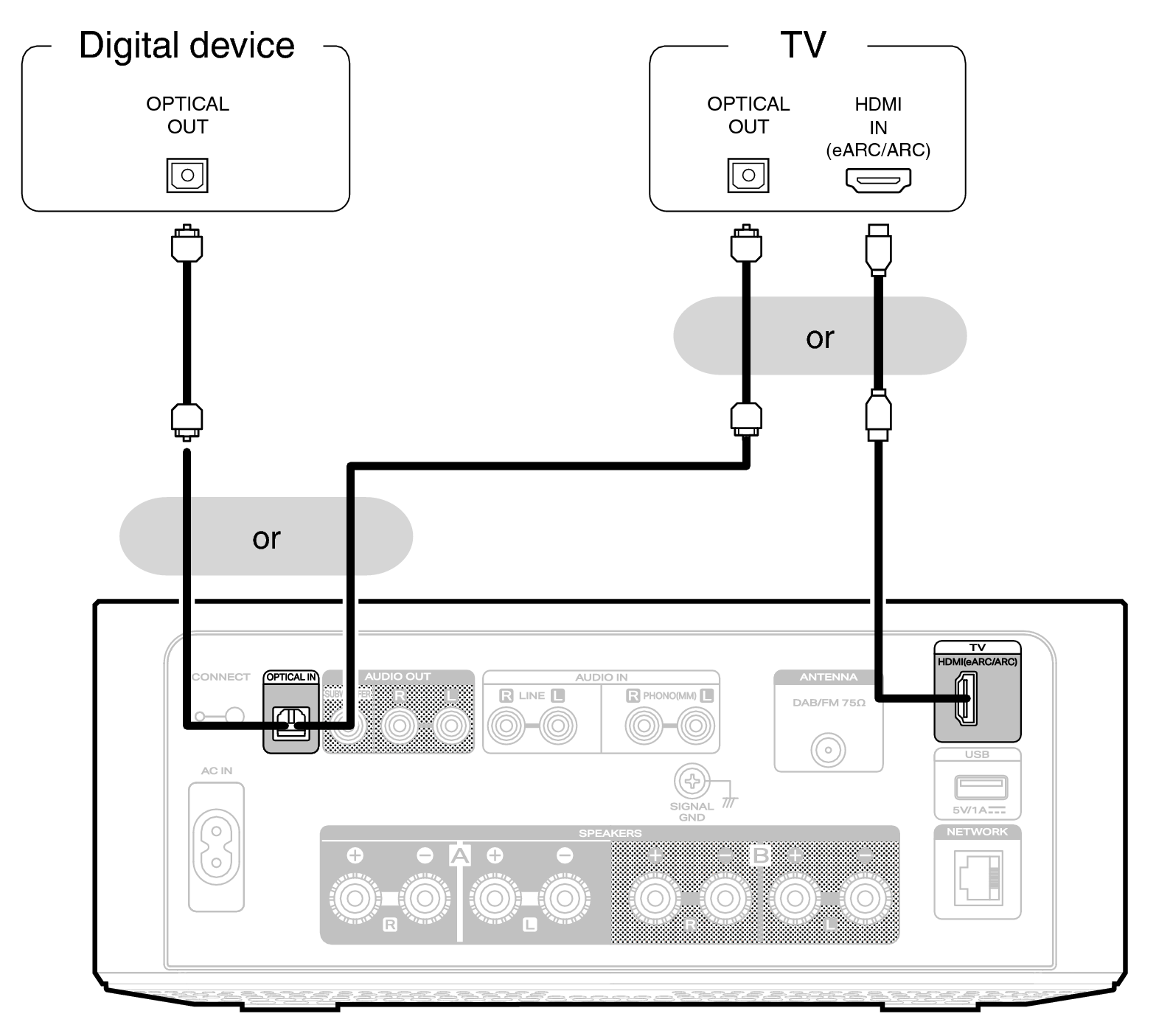

Connect this unit to a device with digital output connectors, such as a TV.

Conne Digital MCR60n

When connecting a TV to this unit, turn off the audio output of the TV’s internal speakers. See the owner’s manual of your TV for details.

When connecting the HDMI eARC/ARC terminal of this unit to your TV, connect it to the HDMI input terminal of your TV that supports the eARC/ARC function.

When connecting to a TV that does not support the eARC/ARC function, use an Optical connection to play the TV audio.

Specifications of supported audio formats

See Digital inputlink.
