Rear panel

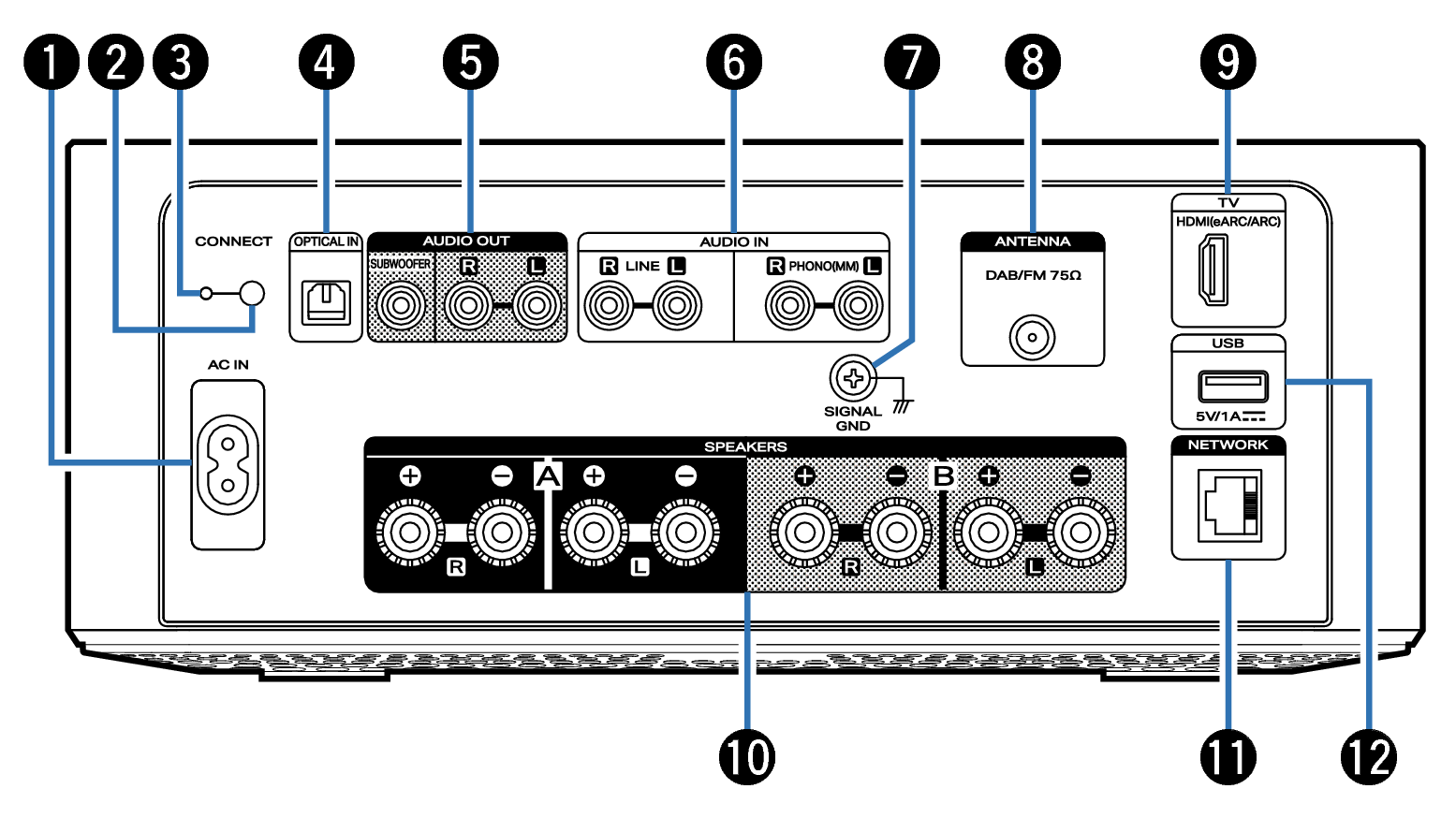

Name Rear Small MCR60n

AC inlet (AC IN)

Used to connect the power cord. link

CONNECT button

Used for Wi-Fi setup.

CONNECT LED

Indicates the status of this unit. link

OPTICAL IN connector

Connecting to a device with optical digital audio output connector. link

AUDIO OUT connectors

Used to connect a subwoofer or powered speakers.

“Connecting the subwoofer” link

“Connecting powered speakers” link

AUDIO IN connectors

Connecting to a device with analog audio output connectors. link

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

DAB/FM antenna terminal (ANTENNA)

Used to connect a DAB/FM antenna. link

TV connector (HDMI (eARC/ARC))

Used to connect an eARC/ARC function-compatible TV. link

Speaker terminals (SPEAKERS)

Used to connect speakers. link

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

USB port

Used to connect USB storage devices (such as USB flash drives).
