Remote control unit

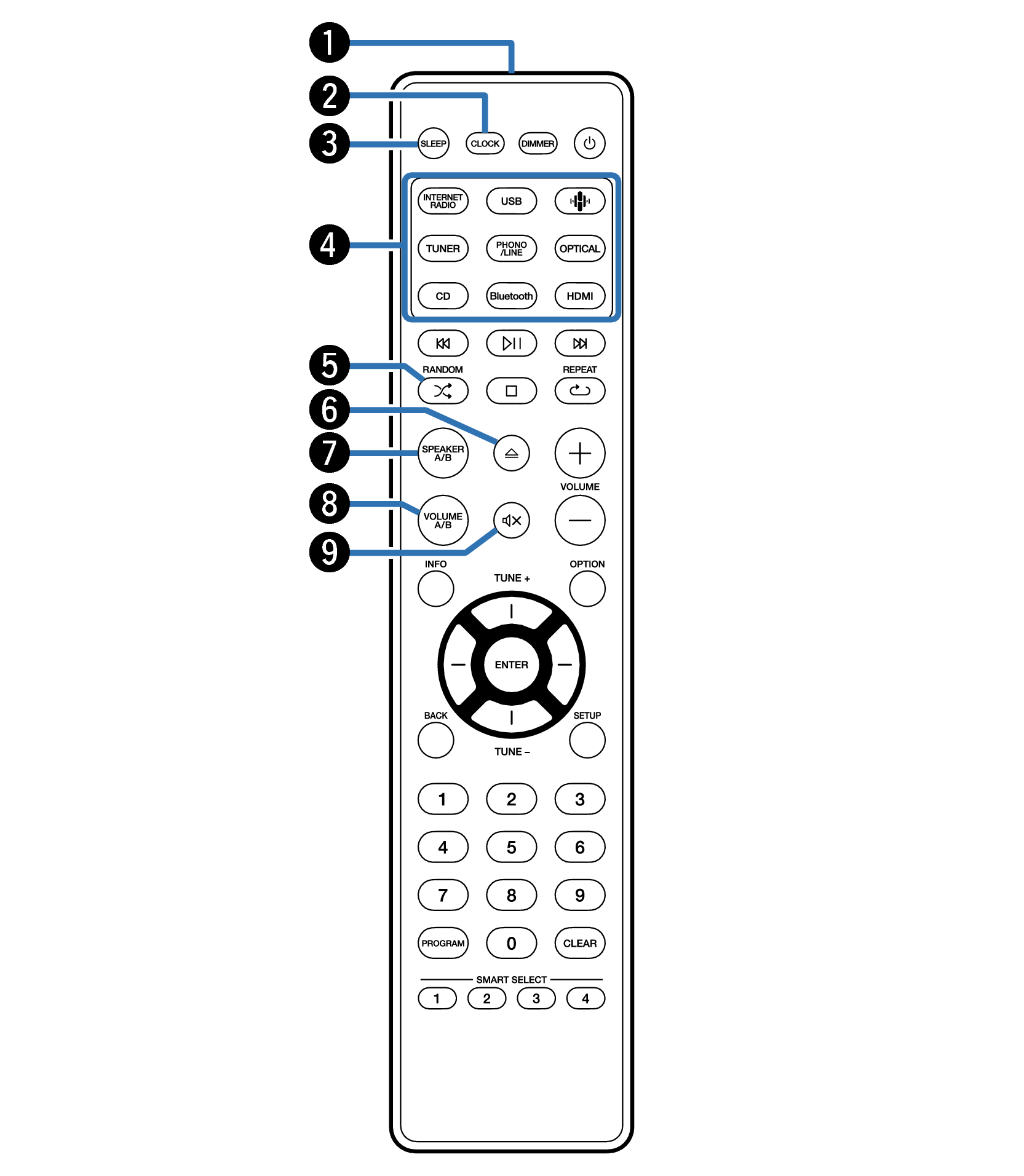

Remote control signal transmitter

This transmits signals from the remote control unit. link

CLOCK button

The current time appear on the unit. link

SLEEP button

This sets the sleep timer. link

Input source select buttons

These select the input source. link

RANDOM button ( )

Switches the random playback.

Disc tray open/close button ( )

Opens and closes the disc tray. link

SPEAKER A/B button

Used to switch the speaker for audio output when “Amplifier Mode” is set to “Standard (A, B, or A+B)”. link

VOLUME A/B button

Used to select the speaker for volume adjustment when both speaker A and speaker B are enabled. link

Mute button ( )

This mutes the output audio. link

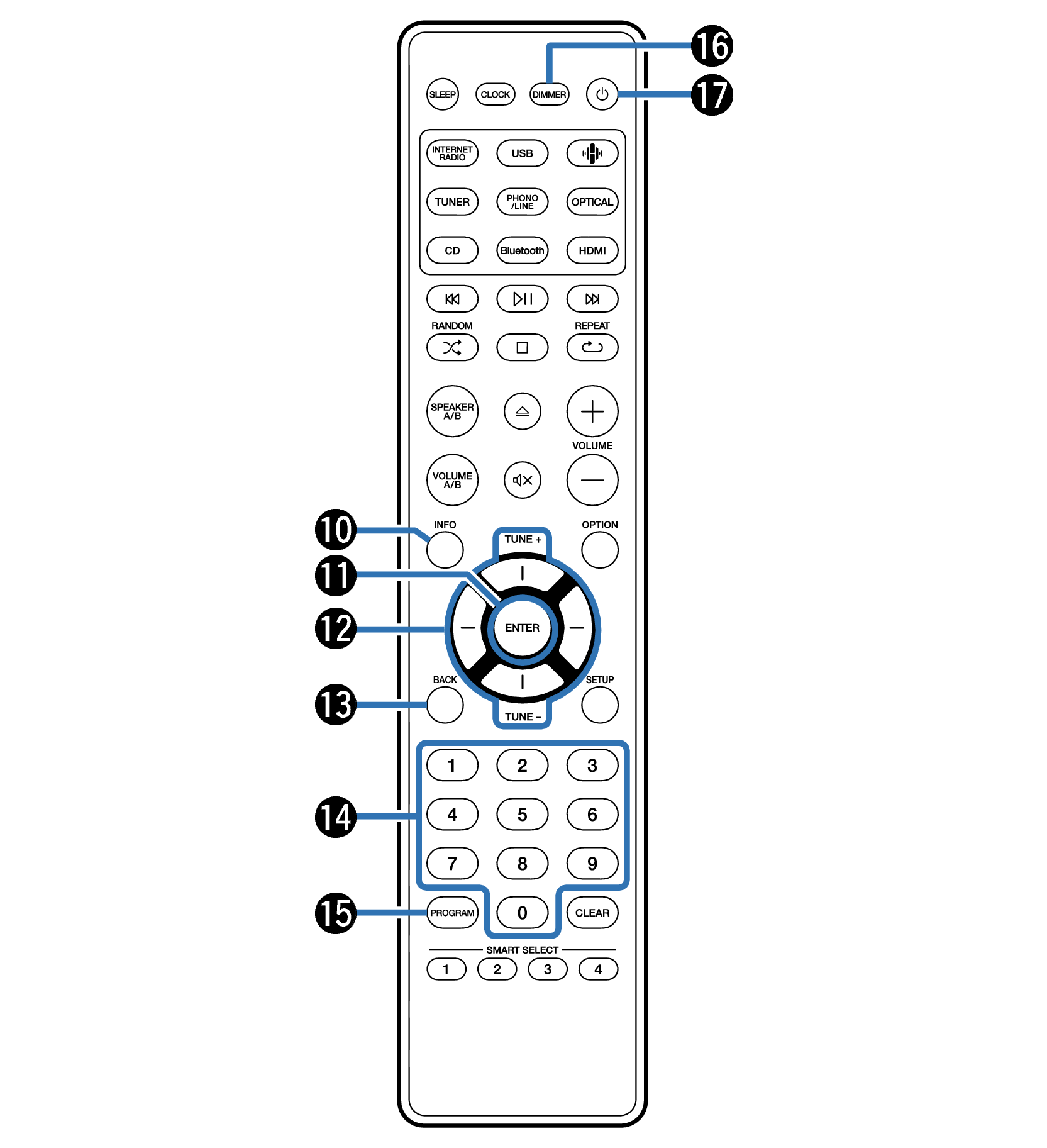

Information button (INFO)

This switches the track information shown in the display during playback.

ENTER button

This determines the selection.

Cursor buttons

These select items.

Tuning buttons (TUNE +, –)

These operate the tuner. link

BACK button

Returns to the previous item.

Number buttons (0 – 9)

These enter numbers into the unit.

PROGRAM button

This sets program playback. link

This switches the playback range on a data CD. link

DIMMER button

Adjust the display brightness of this unit. link

Power ( ) button

This turns the power on/off (standby). link

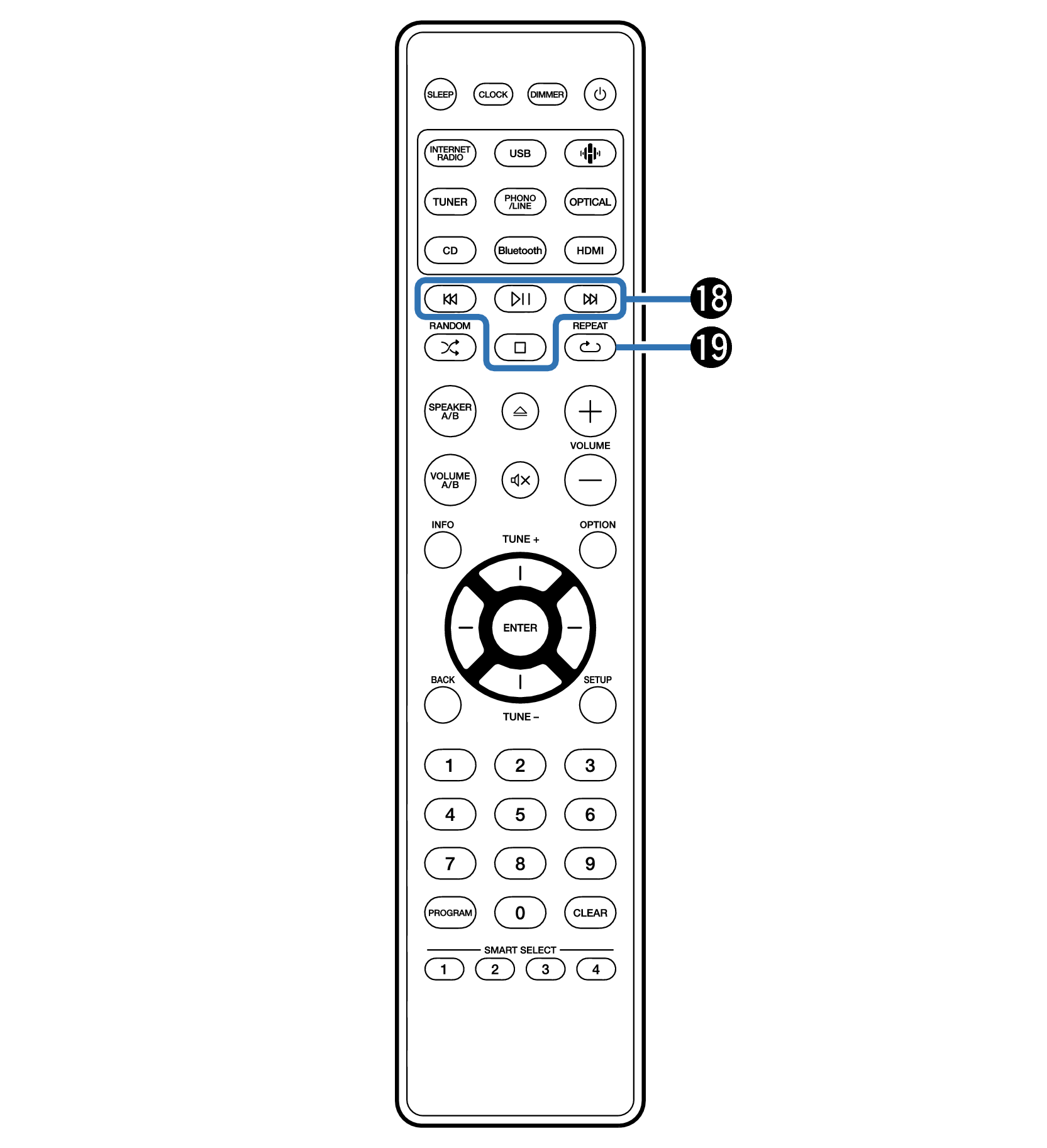

System buttons

These perform playback related operations.

Play/Pause button ( Button_PlayPause Mz )

Press this button to pause during playback. If pressed while paused or stopped, resumes playback from the last track played.

Forward-skip button ( Button_Skip Right Mz )

Press this button during playback to play the next track.

Press this button during tuner playback to select stations registered to the preset list. link

Reverse-skip button ( Button_Skip Left Mz )

Press this button during playback to restart the current track or play the previous track.

Press this button during tuner playback to select stations registered to the preset list. link

Stop button ( Button_Square White Mz )

Press this button to stop during playback.

Depending on the input source and online service, the operation cannot be performed.

REPEAT button ( )

Switches the repeat playback.

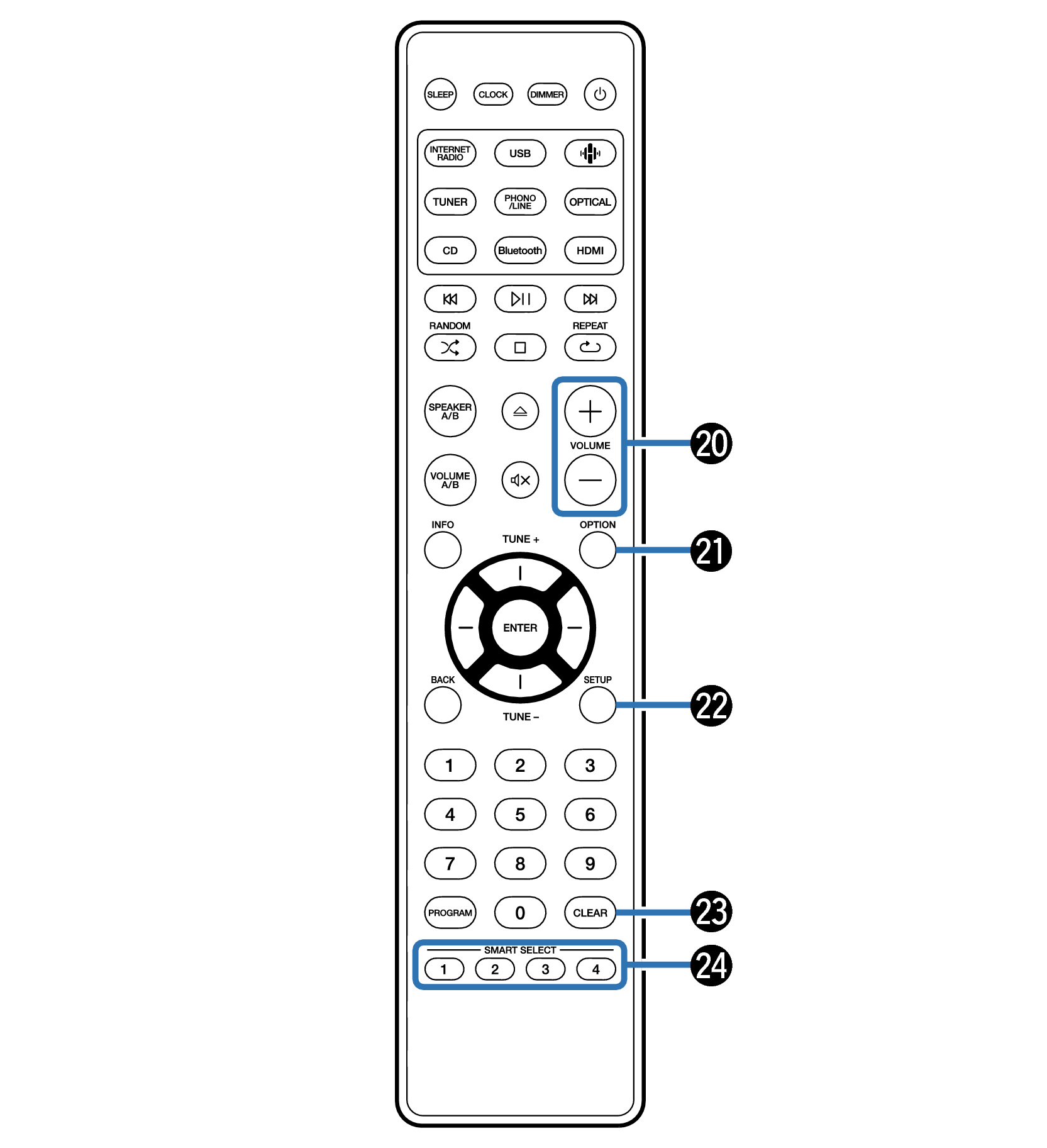

VOLUME buttons ( )

Adjusts the volume. link

OPTION button

This displays the option menu on the display.

SETUP button

The setting menu is displayed on the display. link

CLEAR button

This clears the entered number.

This clears the program registration. link

SMART SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and audio related settings. link
