Playing songs from Windows PC

Install iTunes 10, or later, on a Windows PC that is connected to the same network as this unit.

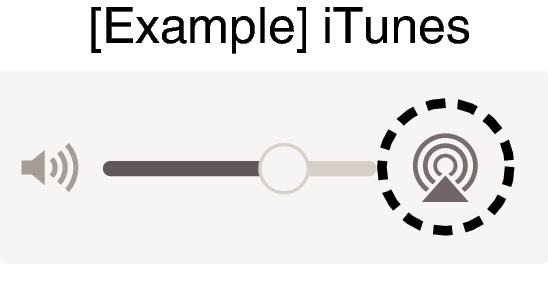

Start iTunes and click the AirPlay icon to select this unit.

AirPlay iTunes1

Choose a song and click play in iTunes.

The music will stream to this unit.

When “Network Control” is set to “On”, you can turn on this unit by operating iTunes. link

For information about how to use iTunes, also see the Help for iTunes.
