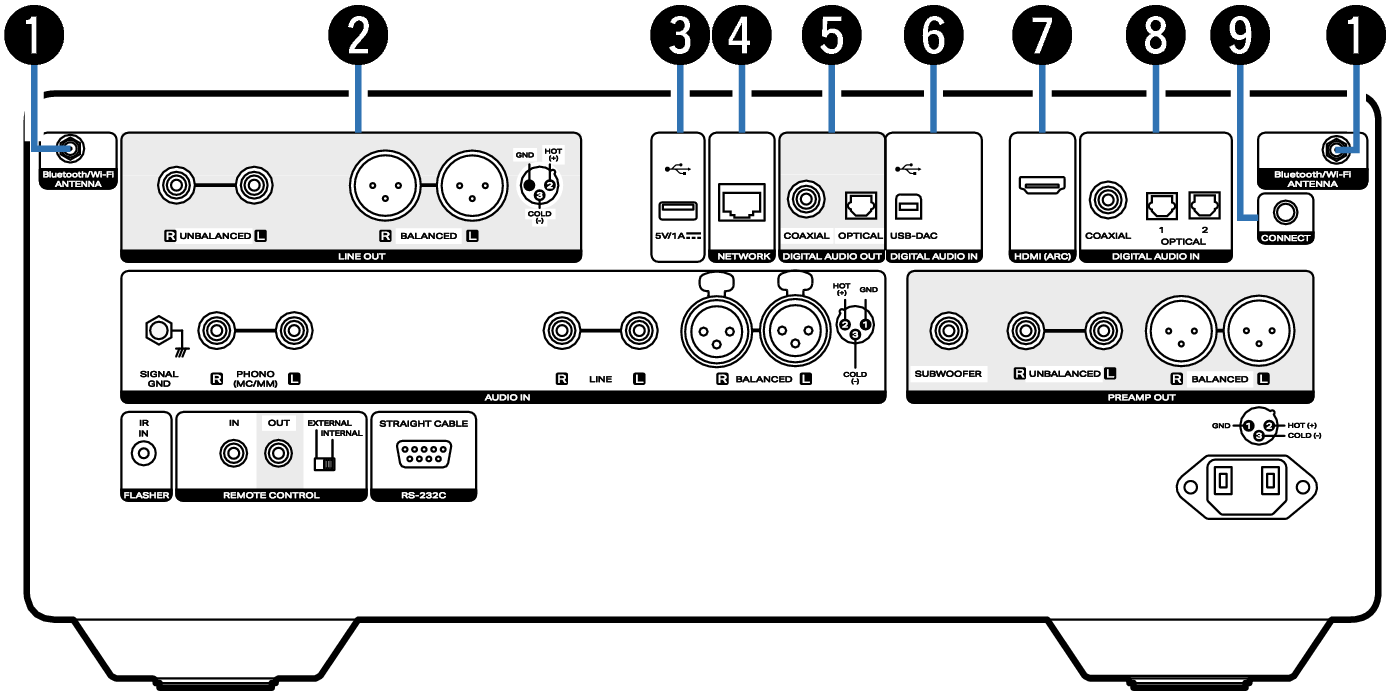

Rear panel
Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

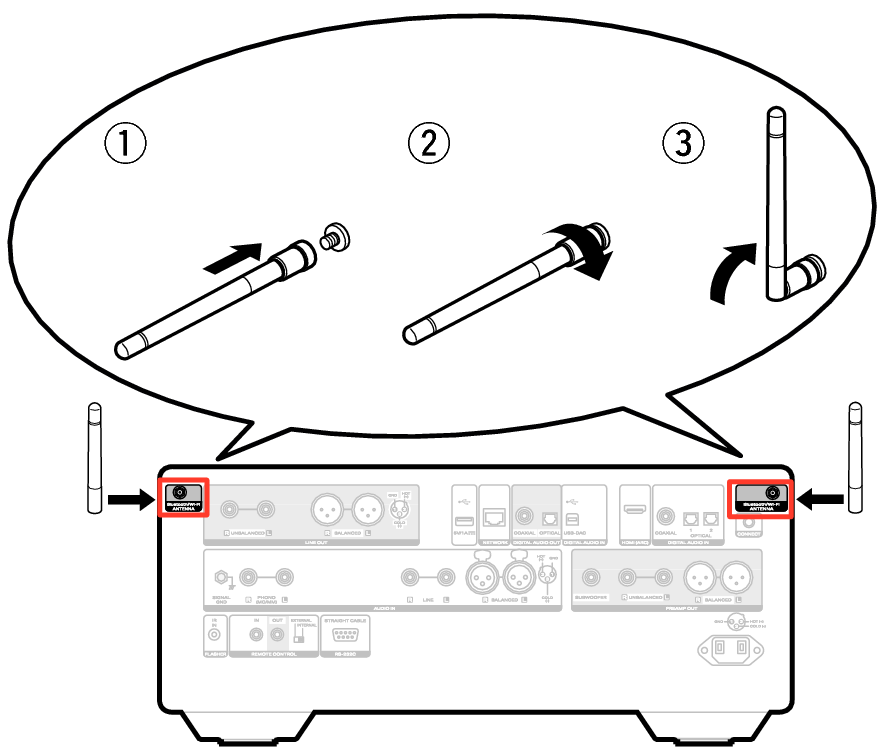

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
LINE OUT connectors
Used to connect devices equipped with analog audio inputs connectors. link
USB port (
)
This is used to connect USB storages (such as USB flash drives).
link
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN network. link
DIGITAL AUDIO OUT connectors
Used to connect an amplifier or D/A converter that has a digital input connectors. link
DIGITAL AUDIO IN connectors (USB-DAC)
Used to connect a computer. link
HDMI connector (HDMI (ARC))
Used to connect an ARC function-compatible TV. link
DIGITAL AUDIO IN connectors (COAXIAL/OPTICAL)
Used to connect a TV with an optical or coaxial digital terminal. link
Used to connect devices equipped with digital audio output connectors. link
CONNECT button
Used for Wi-Fi setup. link

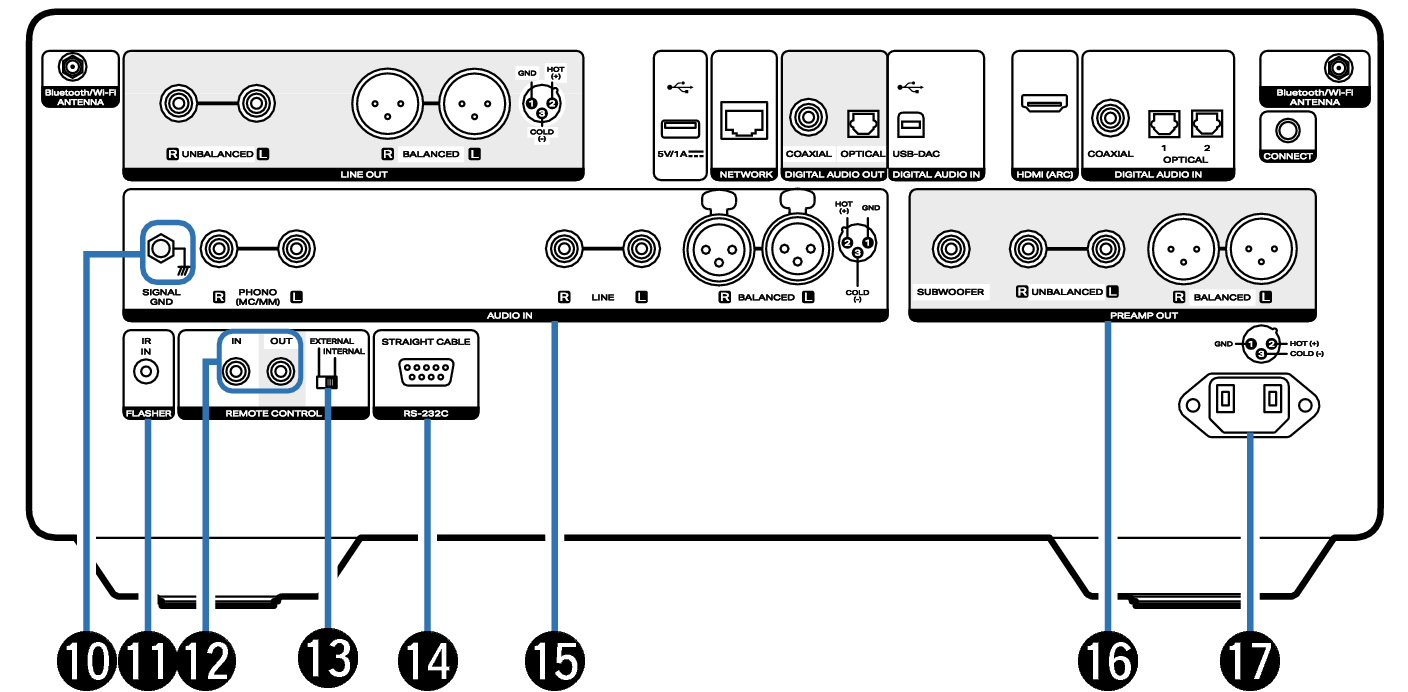

SIGNAL GND terminal
Used to connect a ground wire for the turntable. link
FLASHER IR IN jack
Used to connect a control box, etc. link
REMOTE CONTROL connectors
Used to connect to a Marantz audio device that is compatible with the remote control function. link
EXTERNAL/INTERNAL switch
Turn this switch to “INTERNAL”, this unit receives the remote control signal and the Marantz audio device connected to this unit using the remote control connection operates by receiving the remote control signal from this unit. link
RS-232C connector
Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner’s manual of the home automation controller for more information about serial control of this unit.
Perform the operation below beforehand.
Turn on the power of this unit.
Turn off the power of this unit from the external controller.
Check that the unit is in the standby mode.
Analog audio input connectors (AUDIO IN)
Used to connect devices equipped with analog audio output connectors. link
PREAMP OUT connectors
Use this to add such equipment as a power amplifier or subwoofer.
When connecting a subwoofer, also consult the subwoofer instruction manual.
AC inlet (AC IN)
Used to connect the power cord. link
