Disabling amplifier/SACD player operating mode on remote control

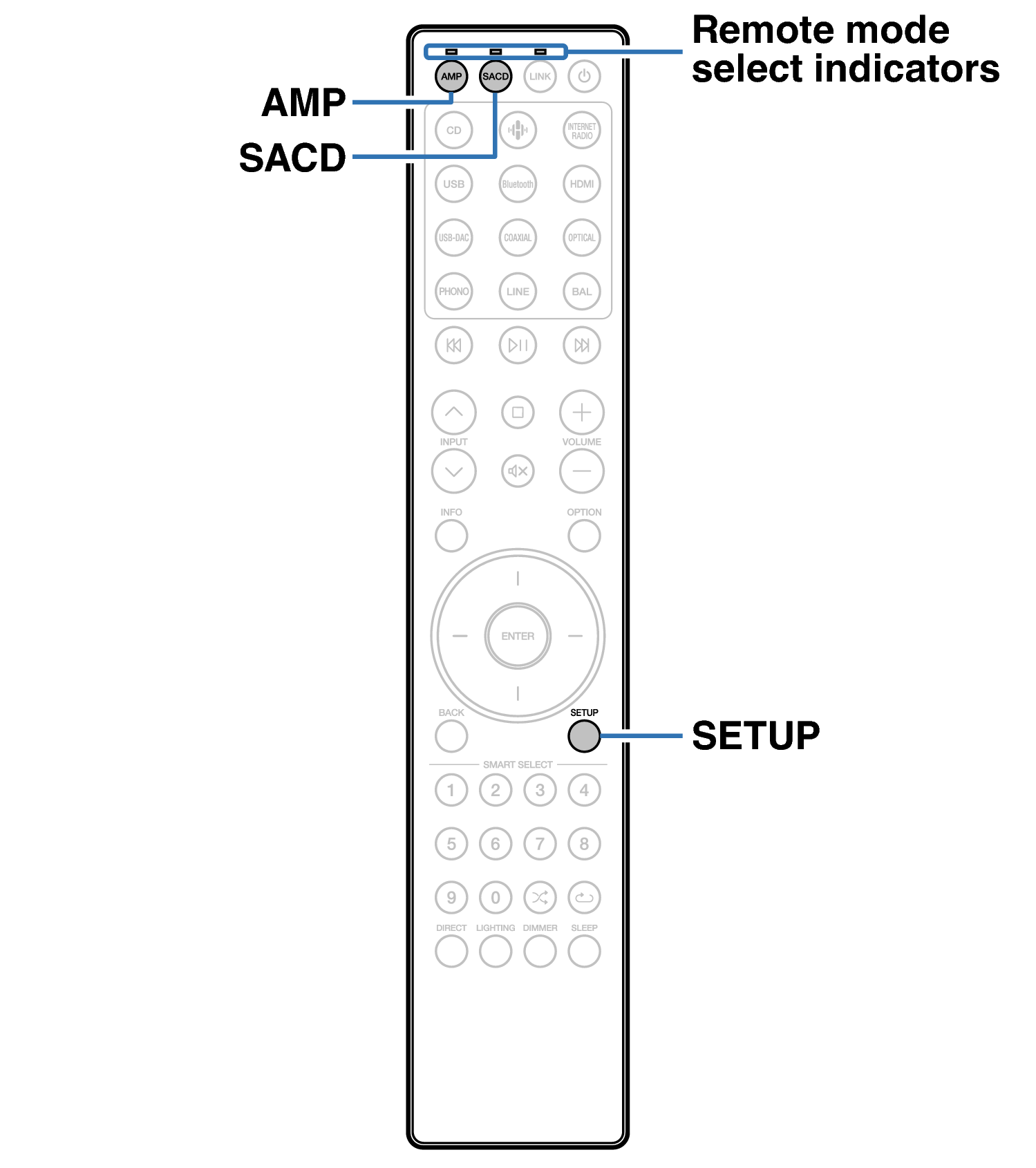

Ope Remote mode LINK RC004PMND

If you do not want to use this unit in combination with MODEL 10 or SACD 10, you can disable the remote control operating mode of the device that you are not using. By default, all remote control operating modes are enabled.

When remote control operating mode is enabled, be sure to check the operation of your device.
