Menu map

For menu operations, see the following page.
By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences.

Setting items	Detailed items	Description	Page
Audio	Filter	This unit is equipped with a sound quality adjusting function which allows users to enjoy the desired playback sound quality.	link
	Dither	This function adds audio data to minimize quantization error. Audio data to be added can be set on this unit. The sound quality changes. Set as desired.	link
	Noise Shaper	Improves linearity and noise characteristics in the audible range using digital feedback. The measurements are the same but the sound quality changes. Set as desired.	link
	Preamp Out	Switches on/off the audio signal output from the PREAMP OUT connectors.	link
	Volume Scale	Set how the volume is displayed.	link
	Volume Limit	Make a setting for maximum volume. The volume cannot be increased above this setting.	link
	Digital Out	Stopping digital audio output reduces a source of noise that affects sound quality, enabling higher sound quality playback.	link
	HP Amplifier Gain	Set the gain of the headphone amplifier. By setting according to the impedance of your headphone, you can enjoy playing headphones at an appropriate volume.	link
	Phono	Sets the phono equalizer of this unit according to the type or impedance of the turntable cartridge to be connected.	link
	Low Pass Filter	Sets the low pass filter for the subwoofer output. Set this according to your speakers and subwoofer.	link

Setting items	Detailed items	Description	Page
TV	TV Input	Set this when playing audio from a TV on this unit.	link
TV	HDMI Power Off Control	Set the “HDMI Power Off Control” function that is keyed to the power off operation of your TV to turn the device’s power to standby.	link
General	Illumination	You can adjust the brightness of the illumination and display. You can also link the illumination to the brightness of the display. When the brightness is turned “Off”, the noise source affecting the sound quality is suppressed, and high-quality sound playback is possible.	link
	Language	Sets the language for display the menu.	link
	Auto-Standby	Sets the unit power to standby when the unit is not in use.	link
	Reset	Various settings are reset to the factory default values.	link
Network	Network Information	Displays various information about the network.	link
	Wi-Fi	The Wi-Fi function can be stopped to prevent noise that affects the sound quality.	link
	Bluetooth	Stopping Bluetooth function reduces a source of noise that affects sound quality, enabling higher sound quality playback. It also sets the Bluetooth transmitter settings.	link
	Network Control	Performs the on/off settings for the network function when in standby mode.	link
	AirPlay Setup	Set this unit to WAC mode. Perform this setup when connecting to a network using an iOS device.	link

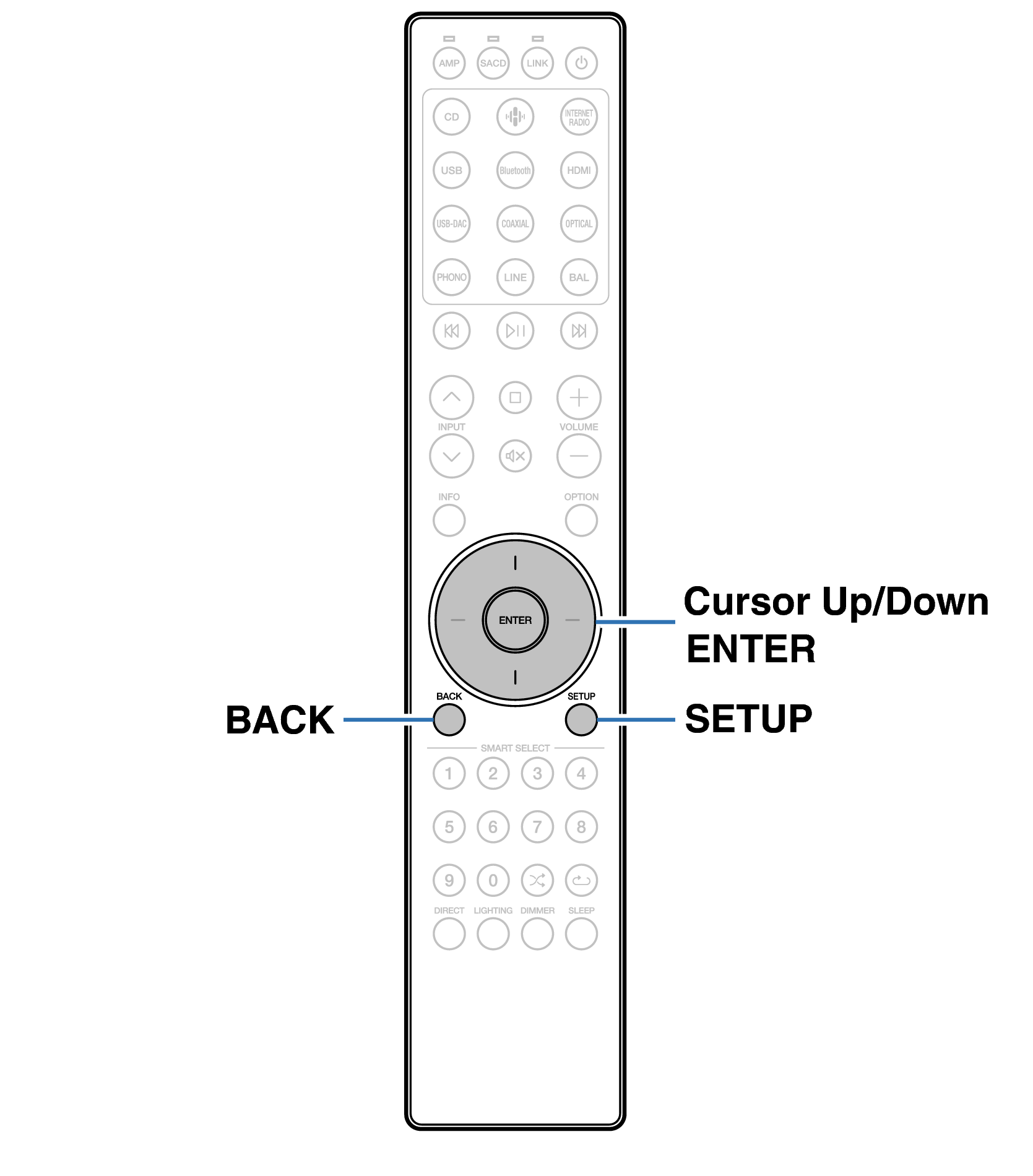

Remote control unit illustration

Ope Menu LINK RC004PMND
