You can enjoy high-quality audio playback from the D/A converter built in to this unit by inputting music files into this unit from a computer via USB connection.

Before USB connecting this unit to your computer, install the driver software in your computer.

Drivers do not need to be installed for macOS.

Also, you can use whichever commercially available or downloadable player software you like to playback files on your computer.

Computer (system requirements)

Windows 10 or Windows 11

macOS 13 or 14

USB

USB 2.0: USB High speed/USB Audio Class Ver. 2.0

NOTE

This unit was checked the operation using the system requirements by us, but it does not guarantee the operation of all systems.

DSD is a registered trademark.

Microsoft, Windows 10 and Windows 11 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

ASIO is a trademark and software of Steinberg Media Technologies GmbH.

Apple, Macintosh and macOS are trademarks of Apple Inc., registered in the U.S. and other countries.

Installing the dedicated driver(Windows OS only)

Disconnect the USB cable between your PC and the unit.

The driver software cannot be installed correctly if your PC is connected to the unit by a USB cable.

If the unit and your computer are connected by a USB cable and the computer is switched on before installation, disconnect the USB and restart the computer.

Download the dedicated driver from the “Download” section of the LINK 10n page of the Marantz website onto your PC.

Unzip the downloaded file, and double-click the exe file.

Install the driver.

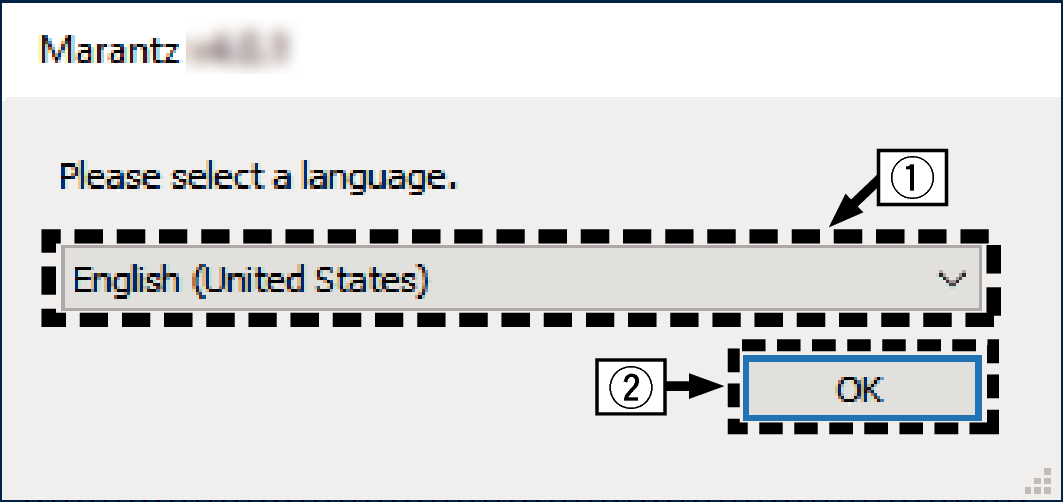

Select the language to use for the installation.

Click “OK”.

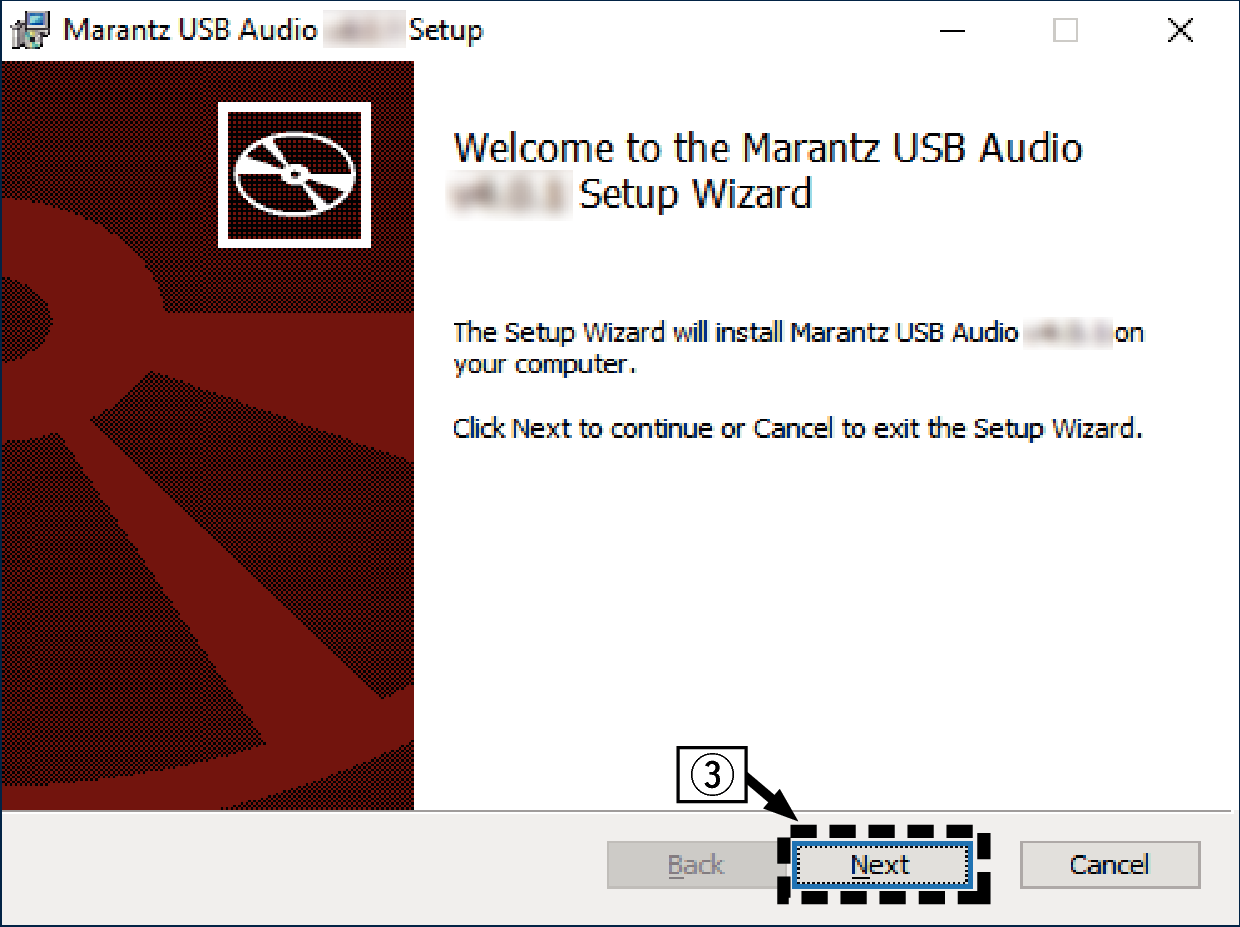

The wizard menu is displayed. Click “Next”.

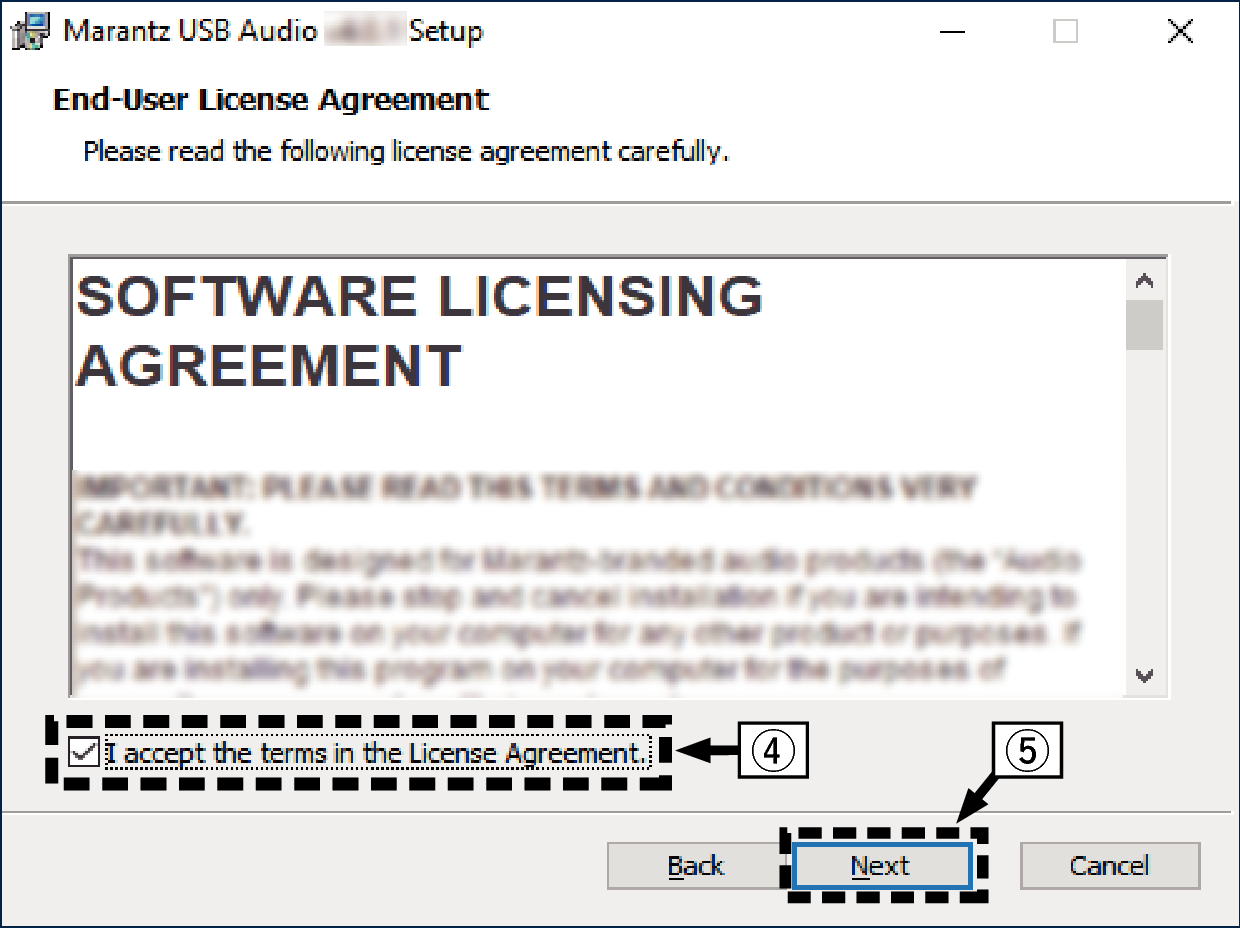

Read the Software Licensing Agreement, and click “I accept the terms in the License Agreement.”.

Click “Next”.

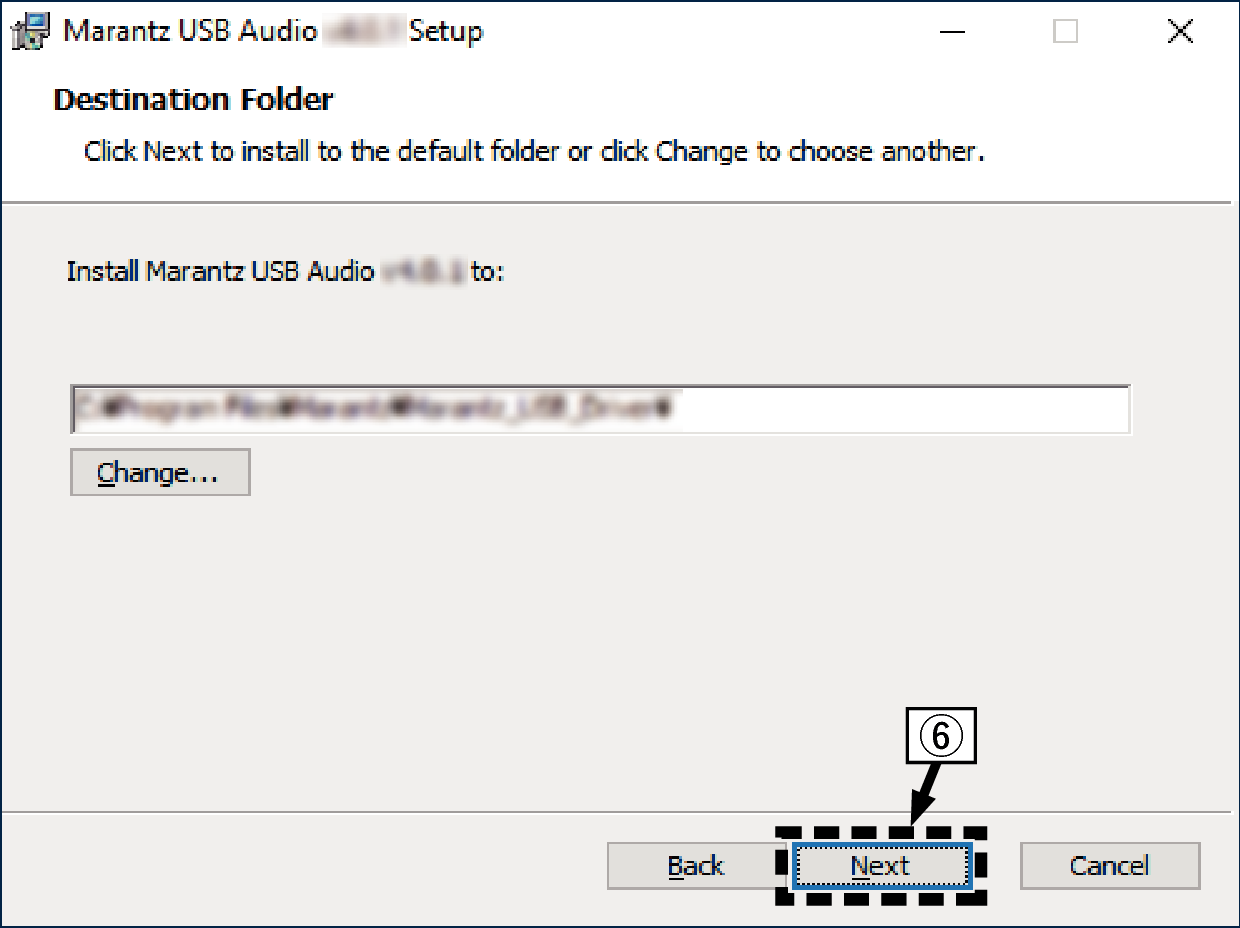

Select the installation destination and click “Next”.

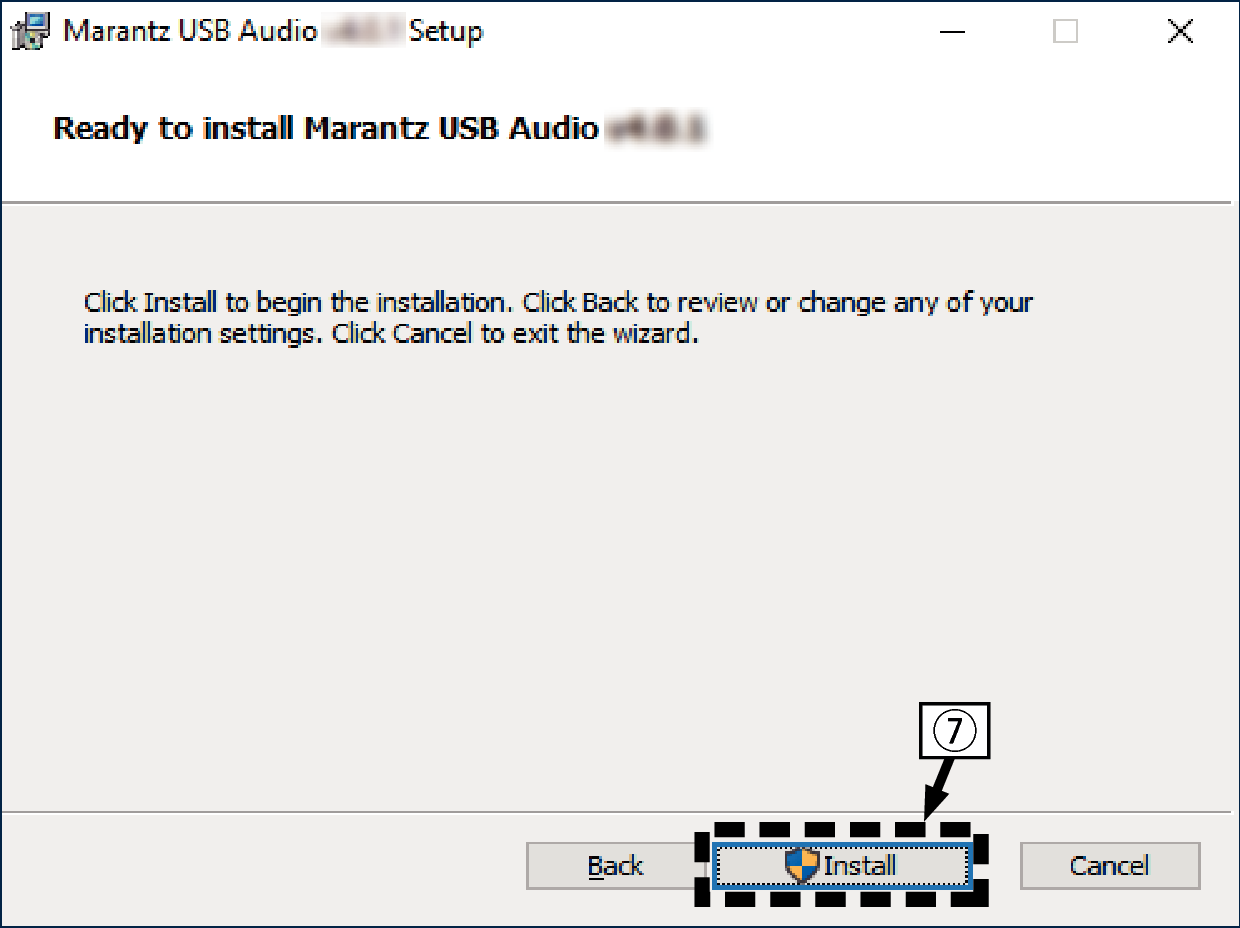

Click “Install” on the installation start dialog.

The installation starts. Do not perform any operation on the PC until the installation is completed.

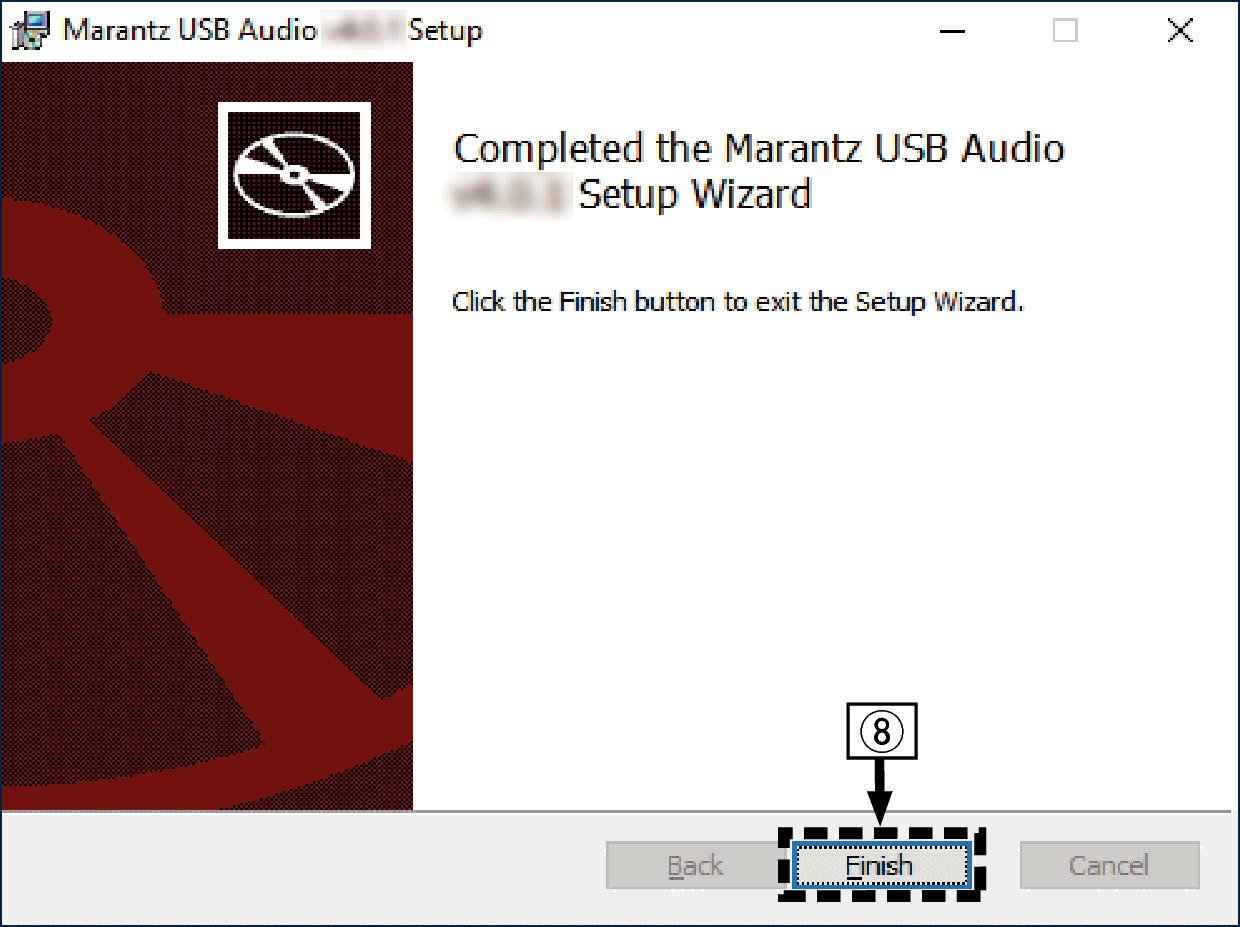

When the installation is completed, click “Finish”.

With the unit power off, connect the unit and PC using a USB cable (not included).

For details on connections, see Connecting a PC or Maclink.

Press

When the unit power is turned on, the PC automatically finds and connects to the unit.

Press USB-DAC to switch the input source to “USB-DAC”.

Checking the installed driver.

Open the “Control Panel” on the PC.

The control panel setting list is displayed.

Click “Sound”.

The sound menu window is displayed.

Check that there is a checkmark next to “Default Device” under in “LINK 10n” of the “Playback” tab.

When there is a checkmark for a different device, click “LINK 10n” and “Set Default”.

Checking audio output.

Outputs a TEST signal from the PC and checks the audio output from the USB-DAC function.

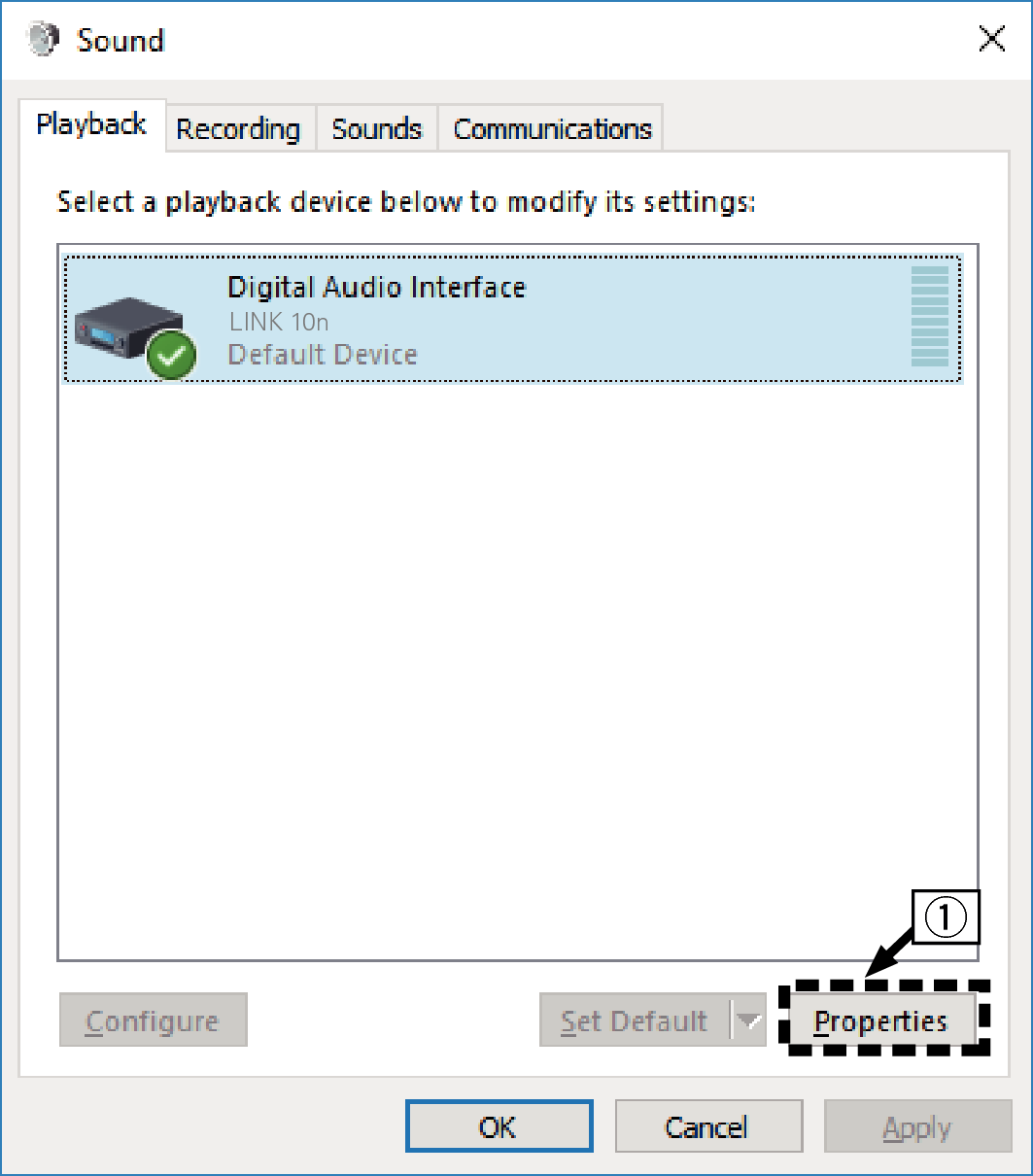

Select “LINK 10n” and click “Properties”.

The Properties window is displayed.

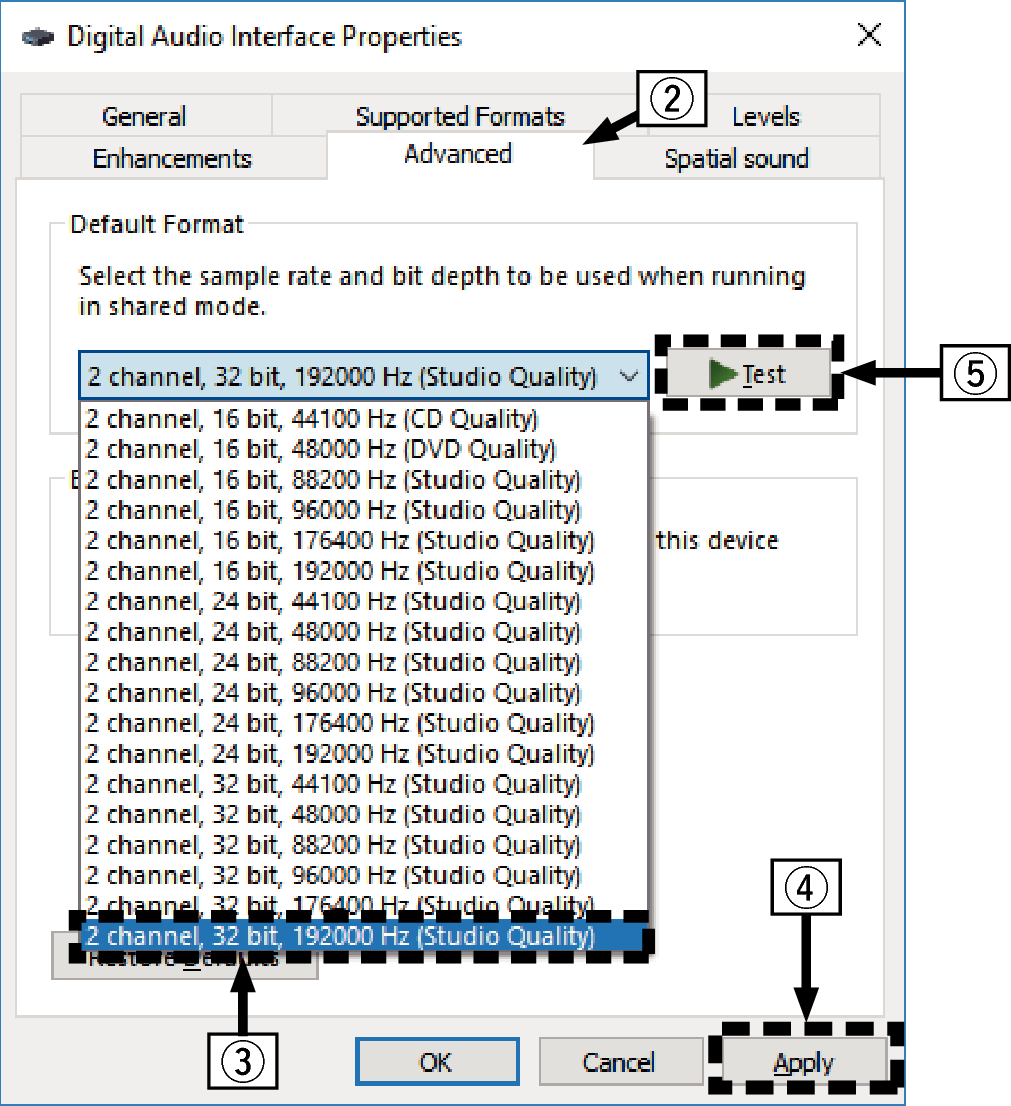

Click the “Advanced” tab.

Select the sampling rate and bit rate to be applied to the D/A converter.

It is recommended that “2 channel, 32 bit, 192000 Hz (Studio Quality)” is selected.

Click “Apply”.

Click “Test”.

Check that audio from this unit is output from the PC.

The dedicated driver must be installed in the PC before this unit is connected to a PC. Operation will not occur correctly if connected to the PC before the dedicated driver has been installed.

Operation may fail in some PC hardware and software configurations.

Player software supporting the Audio Stream Input Output (ASIO) driver is required to play files with a sampling frequency of 352.8 kHz/384 kHz without downsampling. Check your player software before playing files with the ASIO driver.

Please see the FAQ at www.marantz.com if you experience any issues getting audio to play from your computer through this unit. You may also want to check the support pages for your audio player application.

Audio Device Settings (macOS only)

With the unit power off, connect the unit and Mac using a USB cable (not included).

For the connection procedure, refer to the “Connecting a PC or Mac” section. link

Press

Press USB-DAC to switch the input source to “USB-DAC”.

Move the cursor to “Go” on the computer screen, and then click “Utilities”.

The utility list is displayed.

Double-click “Audio MIDI Setup”.

The “Audio Devices” window is displayed.

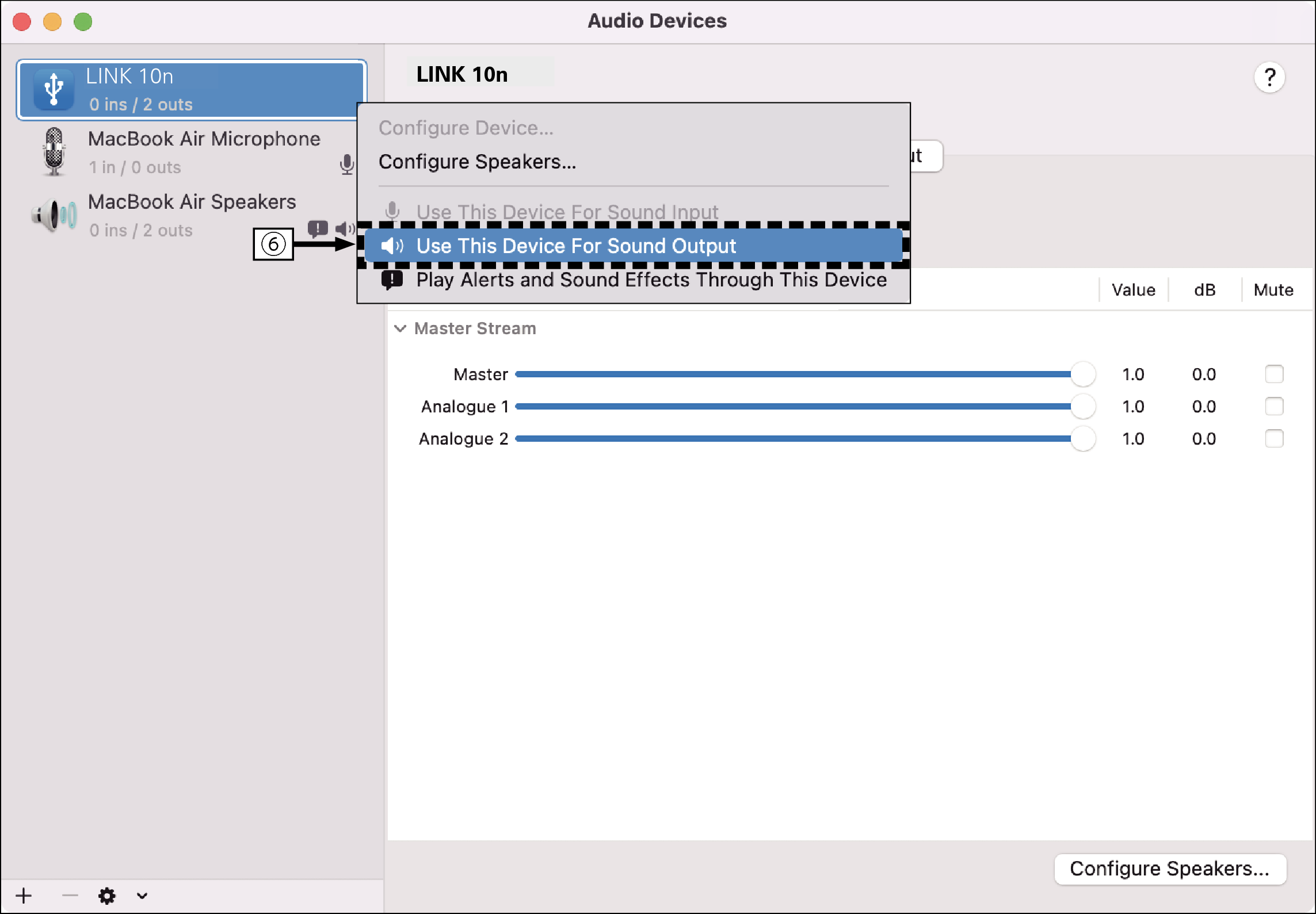

Secondary click on “LINK 10n”, and then check that “Use This Device For Sound Output” is checked.

If a different device is checked, select and secondary click on “LINK 10n”, and then select “Use This Device For Sound Output”.

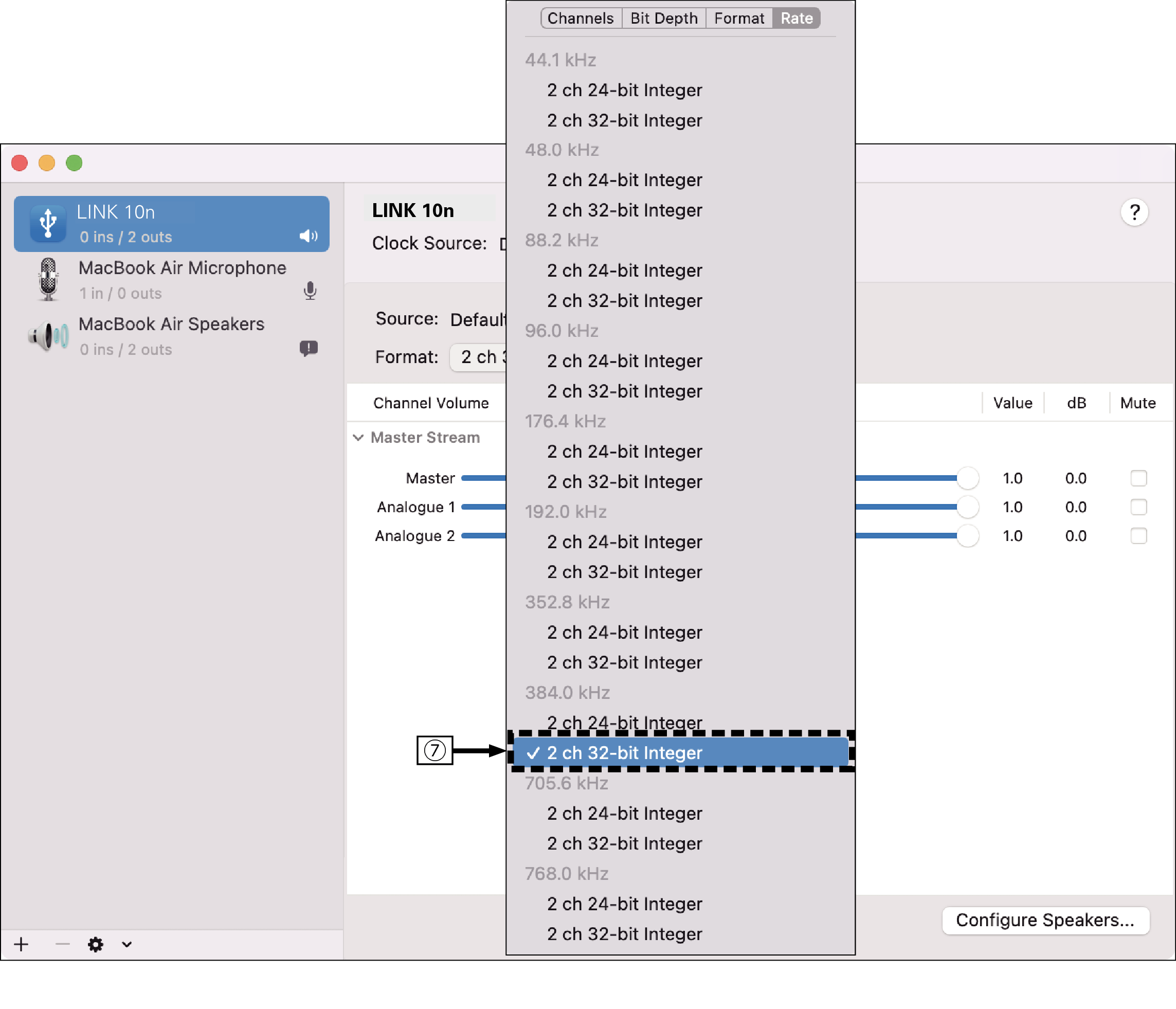

Select the “LINK 10n” format.

It is normally recommended to set the format to “2 ch 32-bit Integer 384.0 kHz”.

Quit Audio MIDI Setup.

Playback

Install the desired player software on your computer beforehand.

Use the rear panel USB-DAC port to connect this unit to a computer. link

Press USB-DAC to switch the input source to “USB-DAC”.

Start playback on the computer’s player software.

If the sampling frequency cannot be detected, “Signal Unlock” will be displayed.

“Unsupported Format” is displayed when audio signals that are not supported by this unit are input.

Display format and sample rate

During playback, press INFO.

Each time the button is pressed, switches the display on and off.

Specifications of supported audio formats

See Digital inputlink.

Perform operations such as playback and pause on the computer. At this time, you cannot perform operations with buttons on this unit or the remote control.

When this unit is functioning as a D/A converter, sound is not output from the computer’s speakers.

If the computer is disconnected from this unit while the computer music playback software is running, the playback software may freeze. Always exit the playback software before disconnecting the computer.

When an error occurs on the computer, disconnect the USB cable and restart the computer.

The sampling frequency of the music playback software and sampling frequency displayed on this unit may differ.

Use a cable that is 10 ft (3 m) or less to connect to the computer.
