Factory Restore

When the unit or the network functions do not work properly, operation may be improved by restoring the firmware to the factory defaults.

Perform this operation if it does not work after attempting “General” - “Reset” of the settings menu. link

After performing the Factory Restore, various settings are reset to the default settings. Configure the network settings and update the firmware again.

Ope FW Restore LINK10n

WARNING

By initiating Factory Restore mode, you will be installing limited recovery firmware on this unit. Functionality will remain limited until a firmware update is performed over the Internet. Do not perform a Factory Restore if you do not have this unit connected to your home network.

Unplug the power cord from the power outlet.

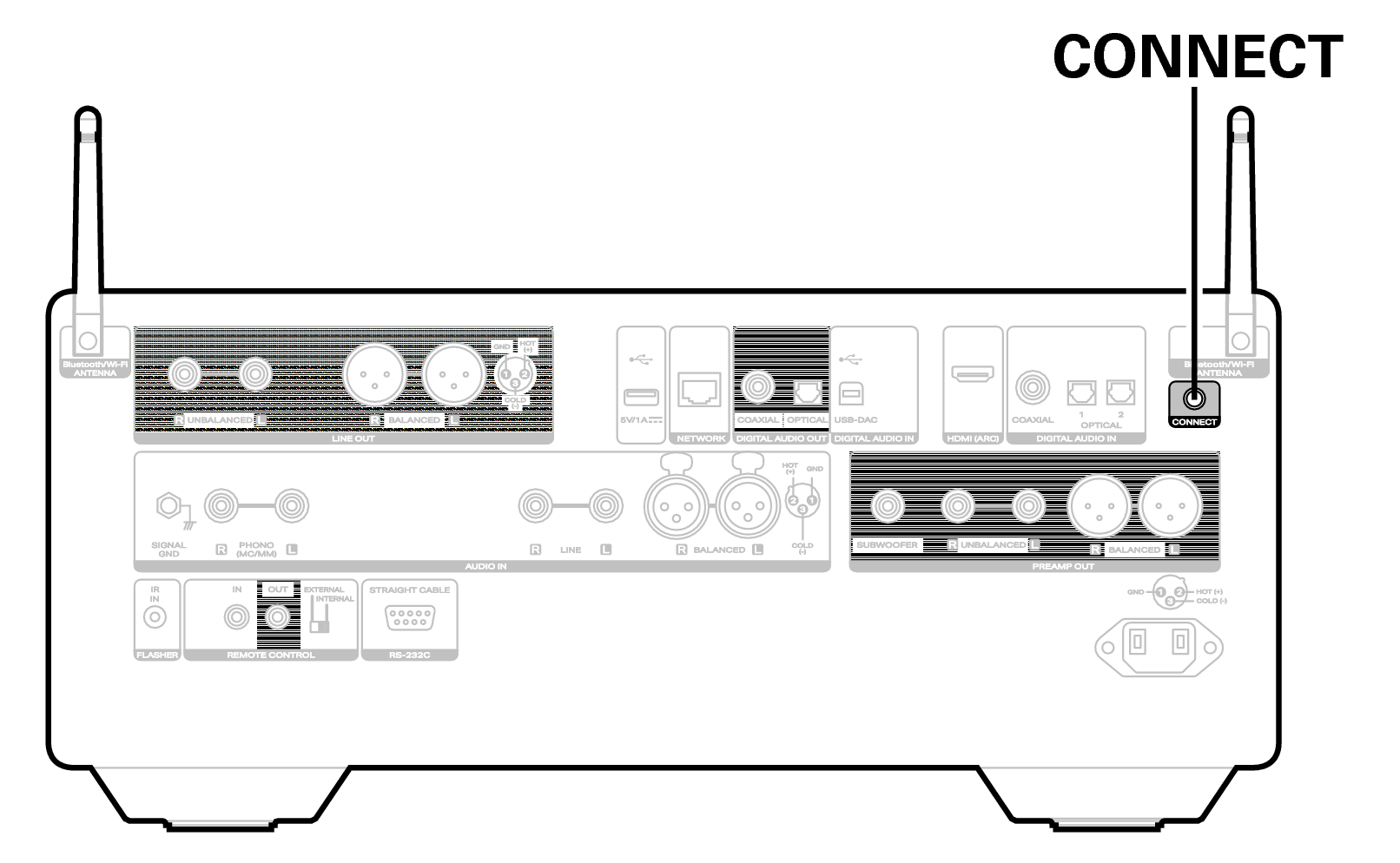

Plug in the power cord while holding down CONNECT.

When “Factory Restore” appears on the display, release the buttons.

When the Factory Restore is complete, this unit automatically restarts.

This operation takes time because it requires reconnecting to the network, restoring and updating the firmware.

If this operation does not improve the problem, contact our customer service center.

NOTE

Do not turn off the power until the Factory Restore is complete.
