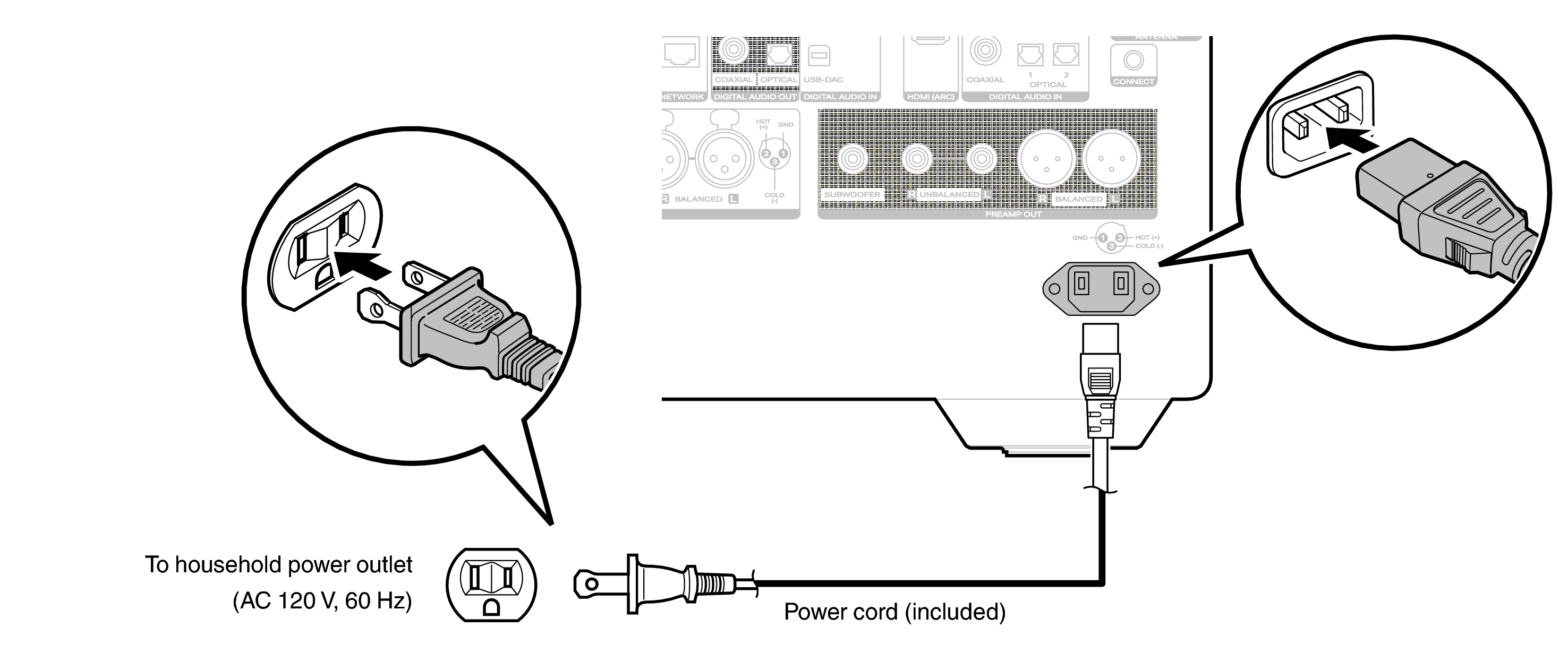

Connecting the power cord

After completing all the connections, insert the power plug into the power outlet.

Conne AC LINK10nU
