Remote control unit

The remote control provided with this unit can control a Marantz amplifier and SACD player.

Amplifier operationslink

SACD player operationslink

Operating this unit

To operate this unit, press LINK button to switch the remote control operating mode to this unit.

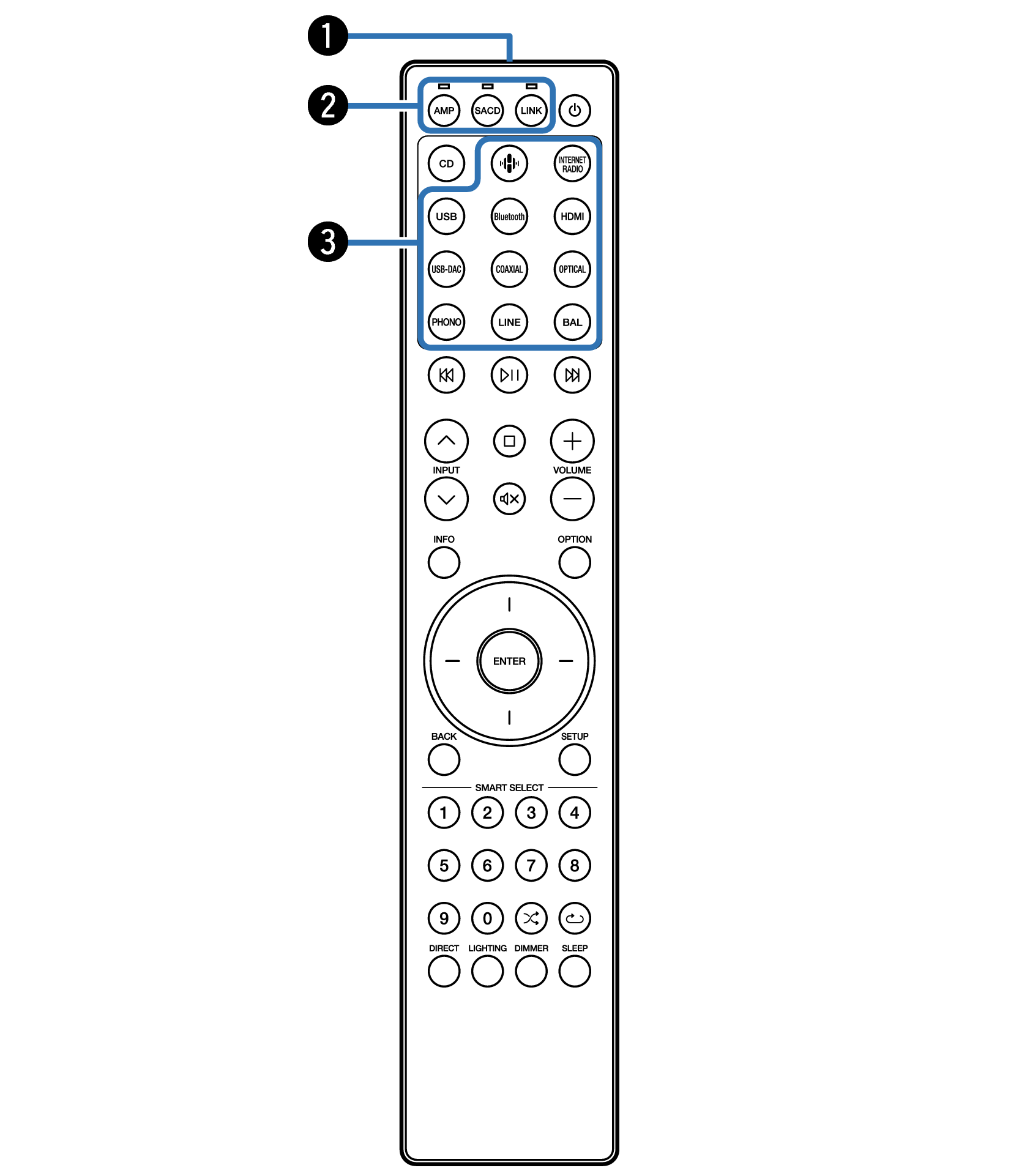

Name RC004PMND LINK10n 1

Remote control signal transmitter

This transmits signals from the remote control unit. link

Remote mode select buttons/indicators (AMP/SACD/LINK)

These switch the remote control operating mode (AMP/SACD/LINK).

The indicator will light up according to the device being operated.

Input source select buttons

These select the input source. link

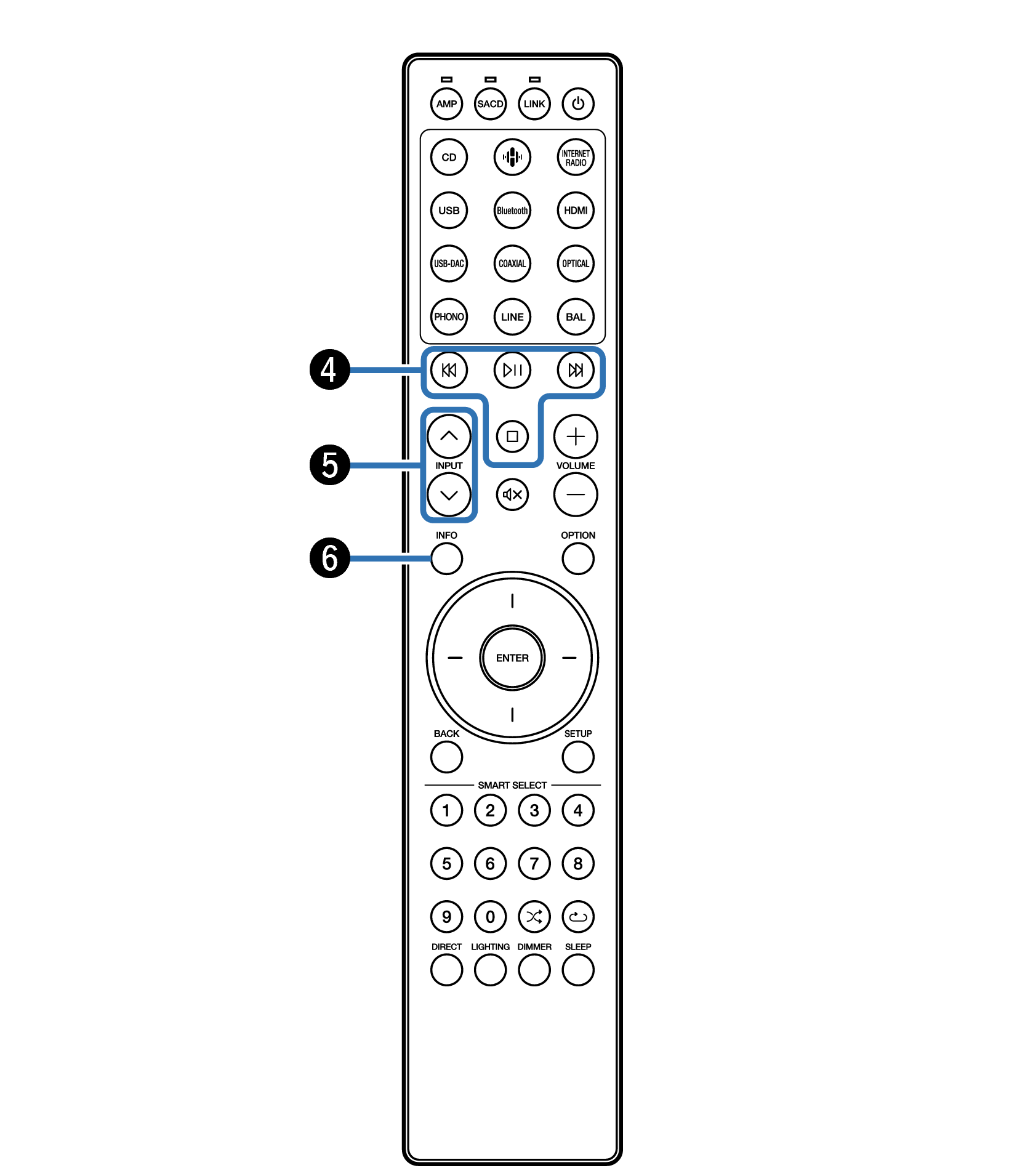

Name RC004PMND LINK10n 2

System buttons

These perform playback related operations.

Play/Pause button ( Button_PlayPause Mz )

Press this button to pause during playback. If pressed while paused or stopped, resumes playback.

Forward-skip button ( Button_Skip Right Mz )

Press this button during playback to play the next track.

Reverse-skip button ( Button_Skip Left Mz )

Press this button during playback to restart the current track or play the previous track.

Stop button ( Button_Square White Mz )

Press this button to stop during playback.

Depending on the input source and online service, the operation cannot be performed.

INPUT buttons ( )

This selects the input source. link

Information button (INFO)

This switches the contents information shown in the display during playback.

ENTER button

This determines the selection.

Cursor buttons

These select items.

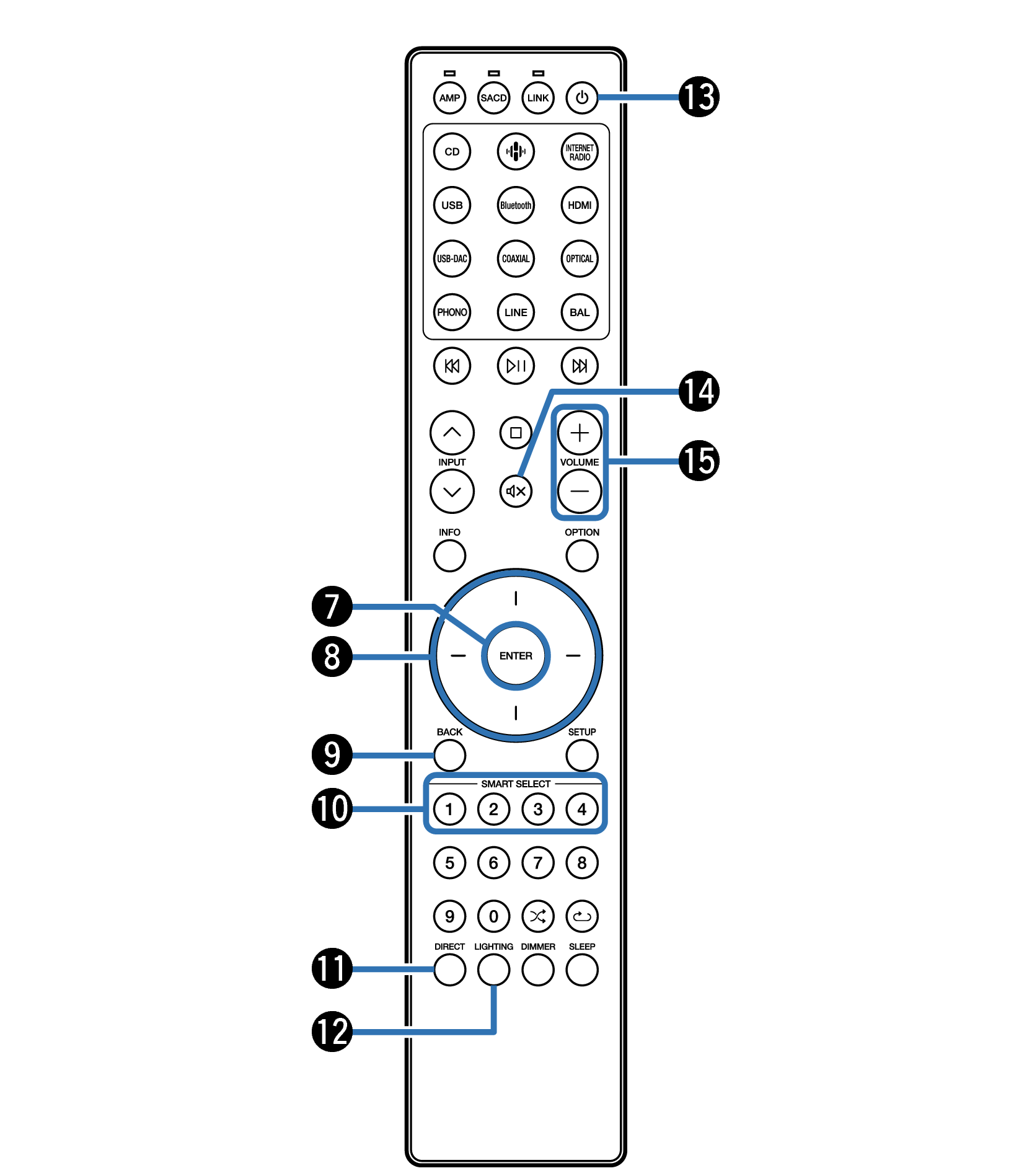

Name RC004PMND LINK10n 3

BACK button

Returns to the previous item.

SMART SELECT buttons (1 - 4)

These call up settings registered to each button, such as input source, volume level, source direct settings and tone settings in the option menu. link

DIRECT button

This turns source direct mode on/off. link

LIGHTING button

This turns the illumination and display on/off. link

Power ( ) button

This turns the power on/off (standby). link

Mute button ( )

This mutes the output audio. link

VOLUME buttons ( )

These adjust the volume level. link

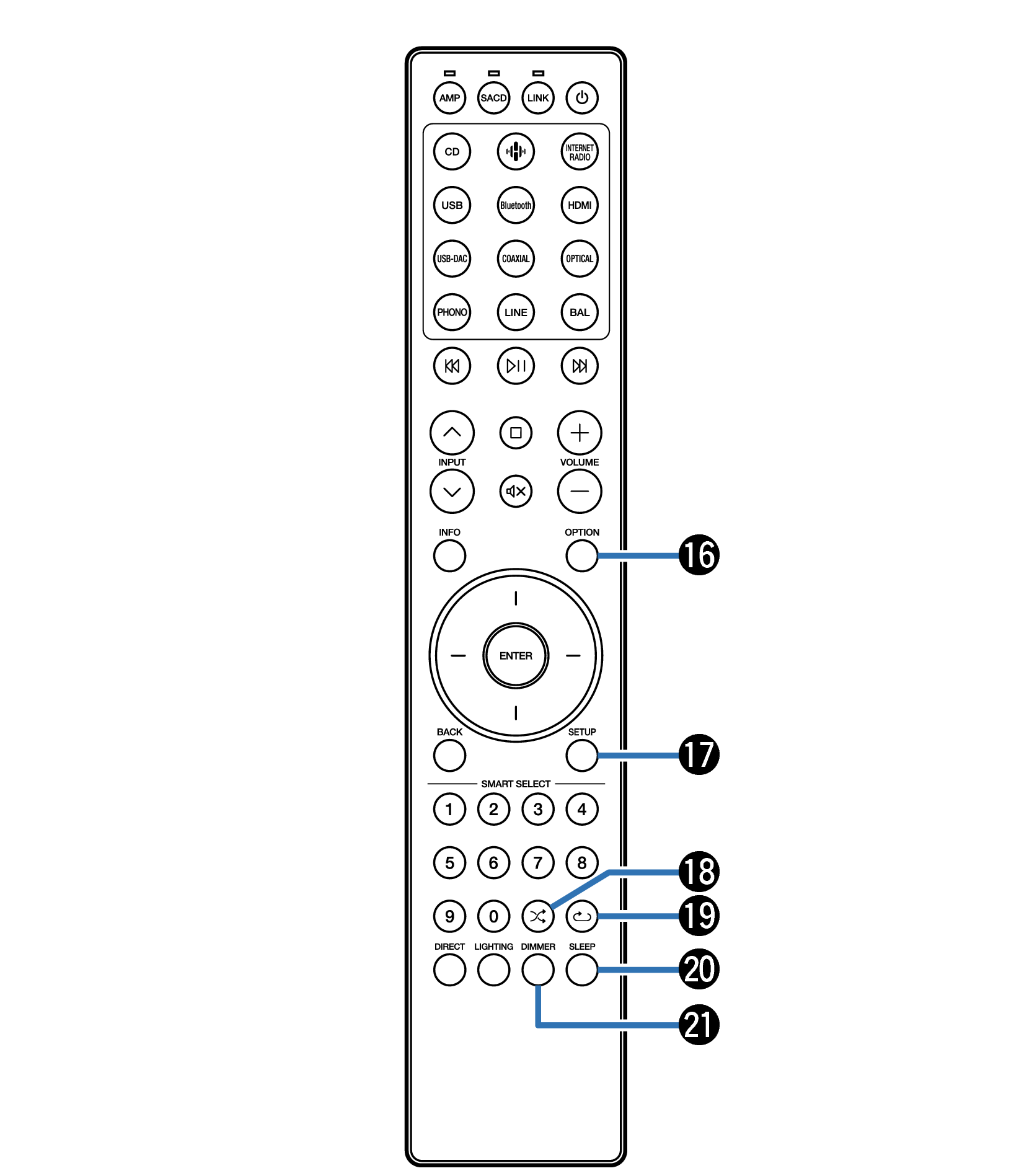

Name RC004PMND LINK10n 4

OPTION button

This displays the option menu on the display.

An option menu is not displayed for some input sources.

SETUP button

The setting menu is displayed on the display. link

Random button ( )

Switches the random playback.

Repeat button ( )

Switches the repeat playback.

SLEEP button

This sets the sleep timer. link

DIMMER button

Adjust the display brightness of this unit. link

Amplifier operations

A Marantz amplifier can be operated.

To operate amplifier, press AMP button to switch the remote control to the amplifier operation mode.

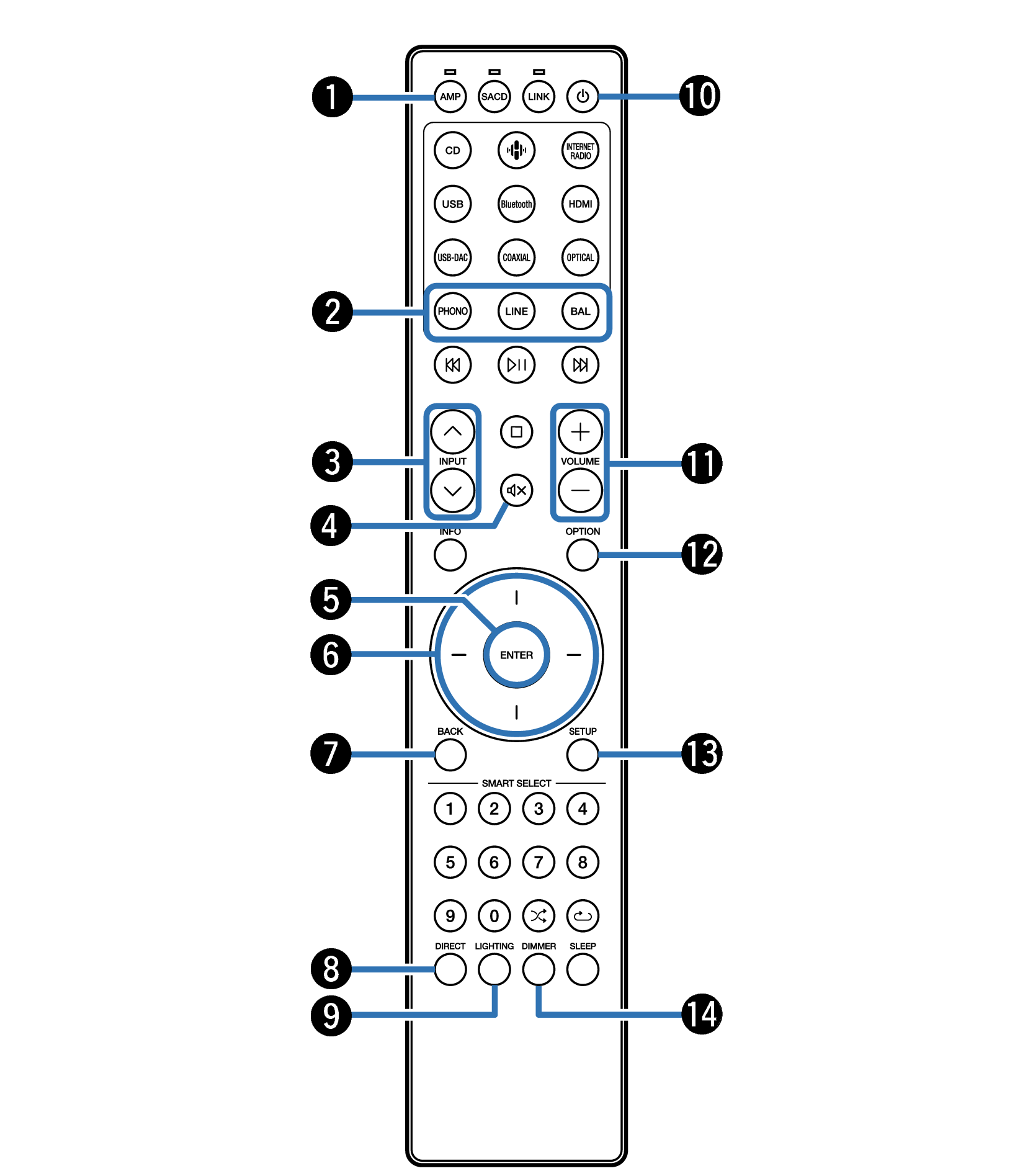

Name RC004PMND SACD10 AMP 1

Remote mode select button (AMP)

Input source select buttons (PHONO/LINE/BAL)

INPUT buttons ( )

Mute button ( )

ENTER button

Cursor buttons

BACK button

DIRECT button

LIGHTING button

Power ( ) button

VOLUME buttons ( )

OPTION button

SETUP button

DIMMER button

The remote control may not operate some products.

SACD player operations

A Marantz SACD player can be operated.

To operate SACD player, press SACD button to switch the remote control to the SACD player operation mode.

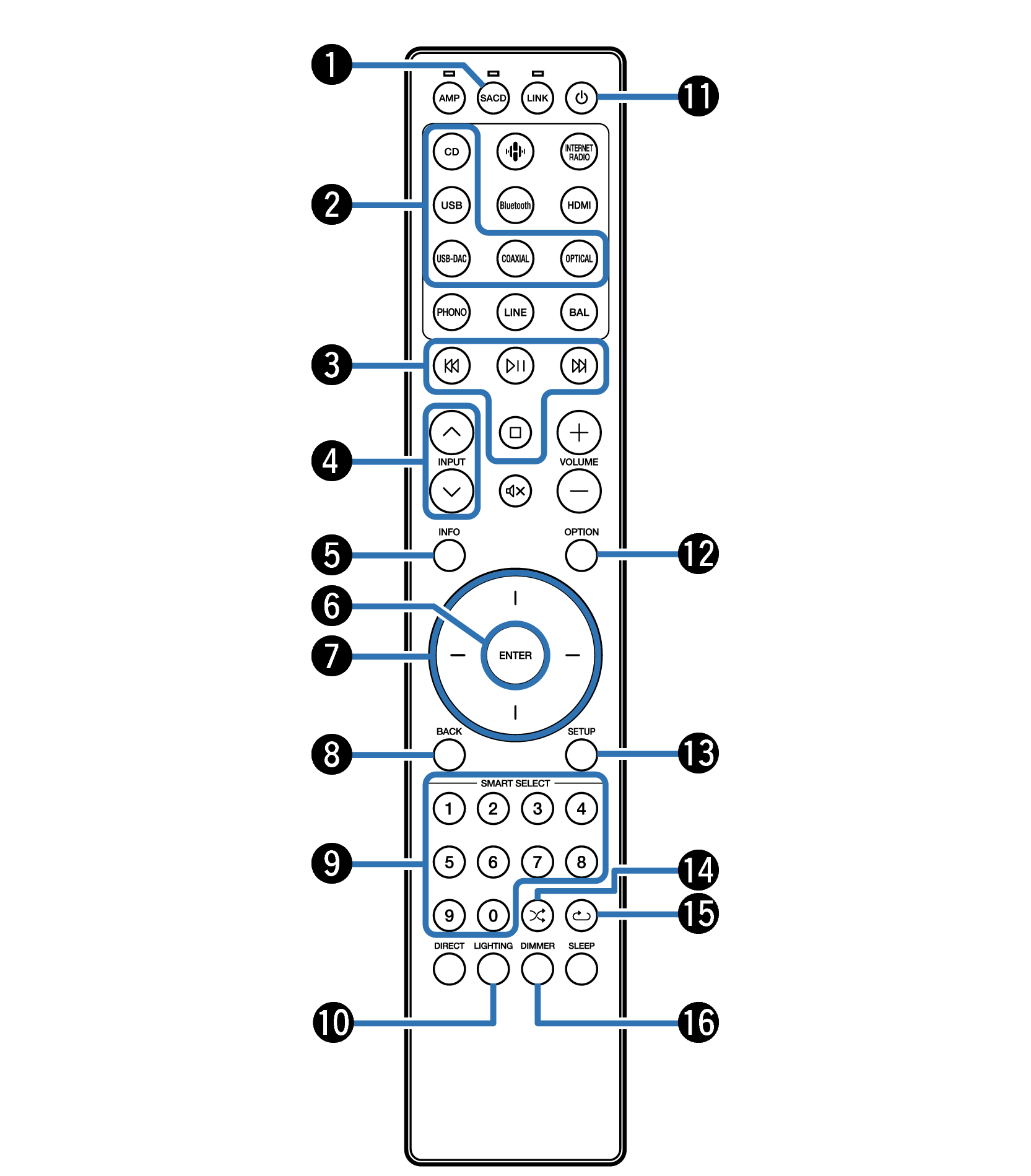

Name RC004PMND SACD 1

Remote mode select button (SACD)

Input source select buttons

System buttons

INPUT buttons ( )

Information button (INFO)

ENTER button

Cursor buttons

BACK button

Number buttons (0 – 9)

LIGHTING button

Power ( ) button

OPTION button

SETUP button

Random button ( )

Repeat button ( )

DIMMER button

The remote control may not operate some products.
