Playing analog input

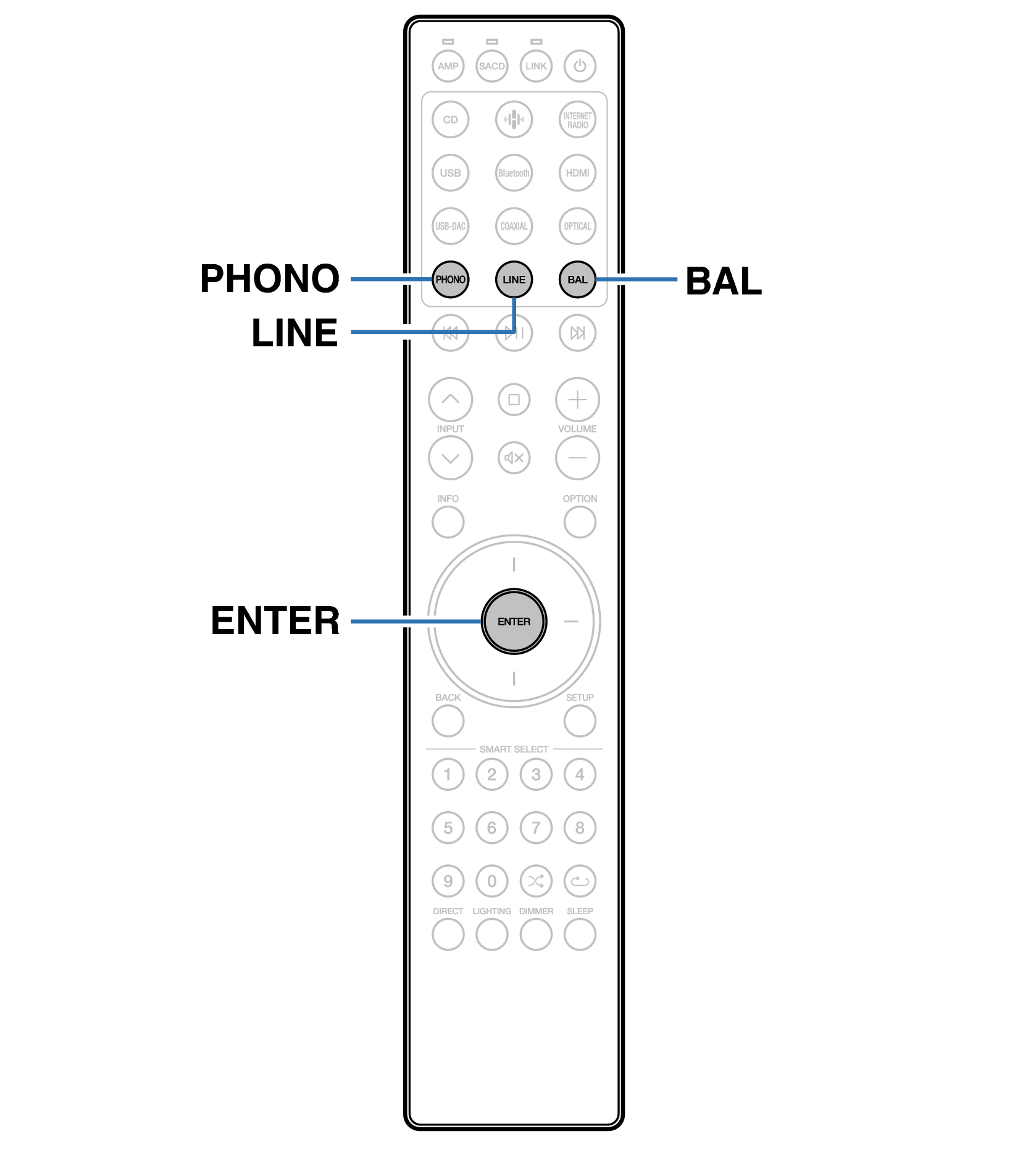

Ope Analog In RC004PMND
Prepare for playback.

Check the connection, then turn on this units. (Connecting a playback devicelink)

Press LINE, BAL or PHONO to switch the input source to “Line”, “Balanced” or “Phono”.
Play the component connected to this unit.

Switching the display on the playback screen

During playback, press ENTER.
