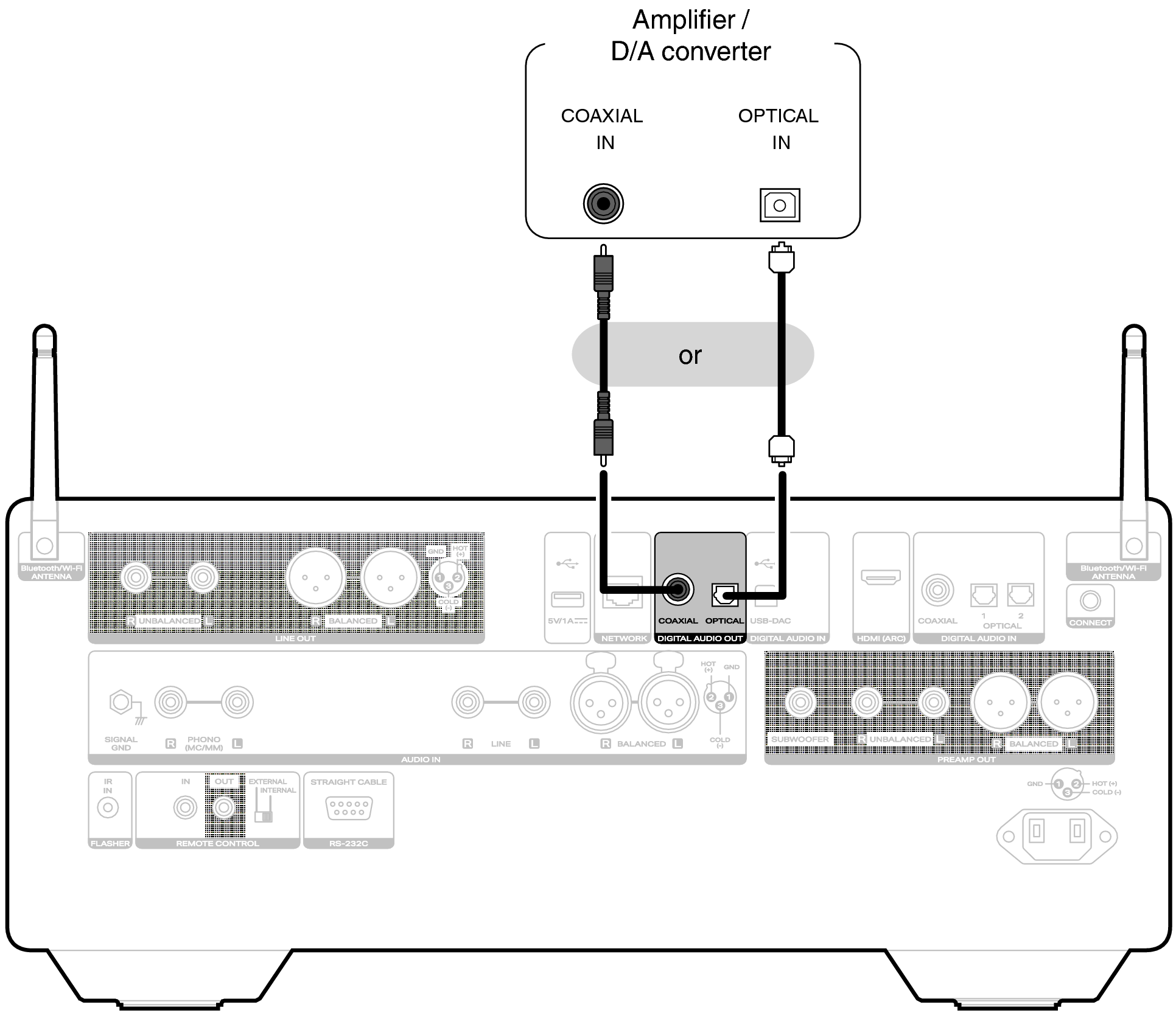

Connecting to a device with digital audio input connectors

You can enjoy digital audio playback by connecting an amplifier or D/A converter that has a digital audio connector to this unit.

Conne DigitalOut LINK10n

NOTE

Digital audio output stops during playback of the DSD signals and linear PCM signals with a sampling frequency of 352.8/384 kHz using this unit’s USB-DAC.

Digital audio output stops during playback of the DSD files and sampling frequency of 352.8/384 kHz files via USB and networks.

Digital audio output can be set on/off using “Digital Out” in the setup menu. link

Digital audio output stops during playback of the analog input.
