Listening to audio on Bluetooth headphones

You can listen to the sounds that are played back in this device from Bluetooth headphones.

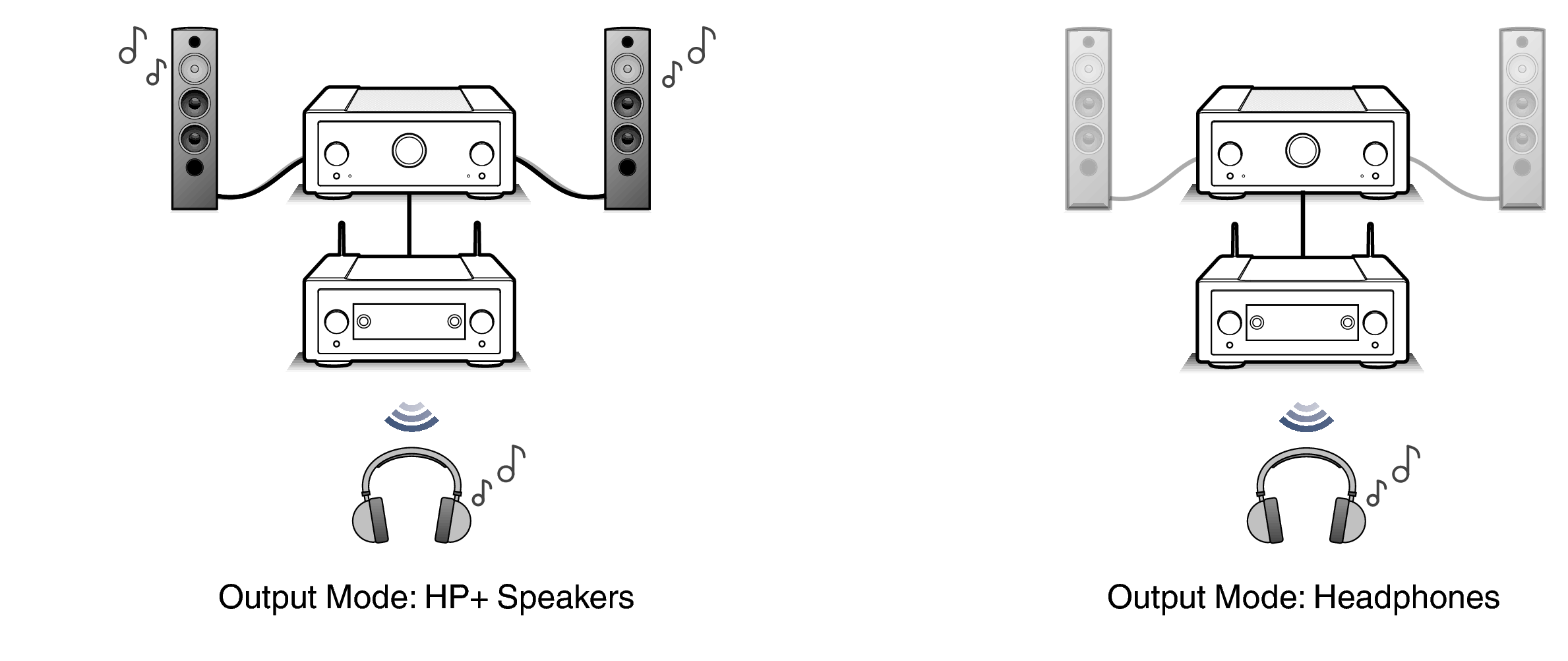

Output audio from connected speakers and Bluetooth headphones simultaneously, or only using Bluetooth headphones.

Pict BT OutMode LINK10n
NOTE

If you want to output audio only from Bluetooth headphones while your amplifier with speakers is connected to this unit, connect the amplifier to the PREAMP OUT connectors on this unit.
