AirPlay function

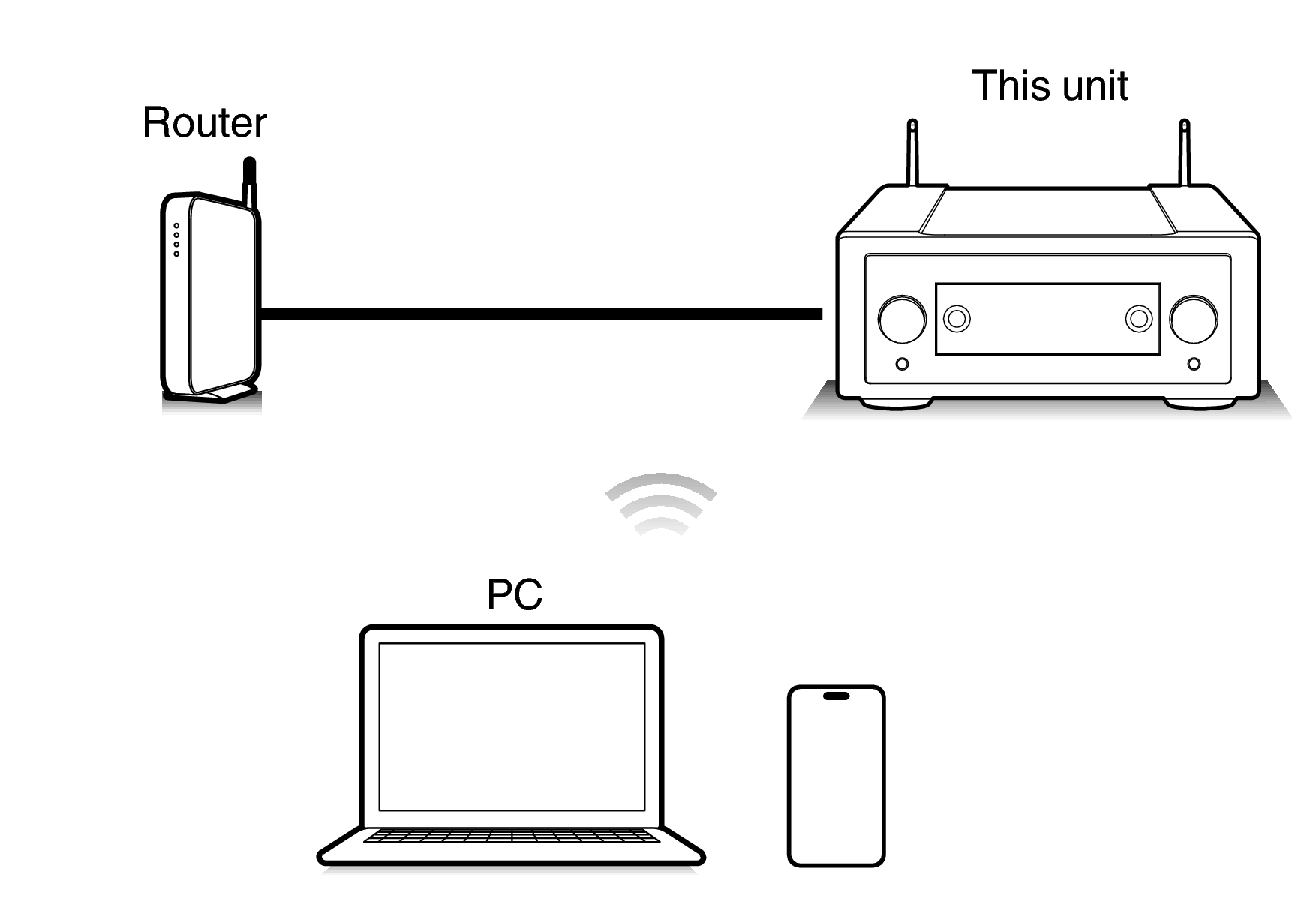

Music files stored on your iPhone, iPod touch, iPad, Mac or Windows PC can be played on this unit via the network.

Input source will be switched to “AirPlay” when AirPlay playback is started.

You can stop AirPlay playback by choosing other input source.

The screen may differ depending on the OS and software versions.

This device supports AirPlay 2.

Sync multiple AirPlay 2 compatible devices/speakers for simultaneous playback.

Playing songs from your iPhone, iPod touch, iPad or Mac

Playing songs from Windows PC

Play a song from your iPhone, iPod touch, iPad or Mac on multiple synced devices (AirPlay 2)
