Setting the device to be operated by the volume buttons on the remote control

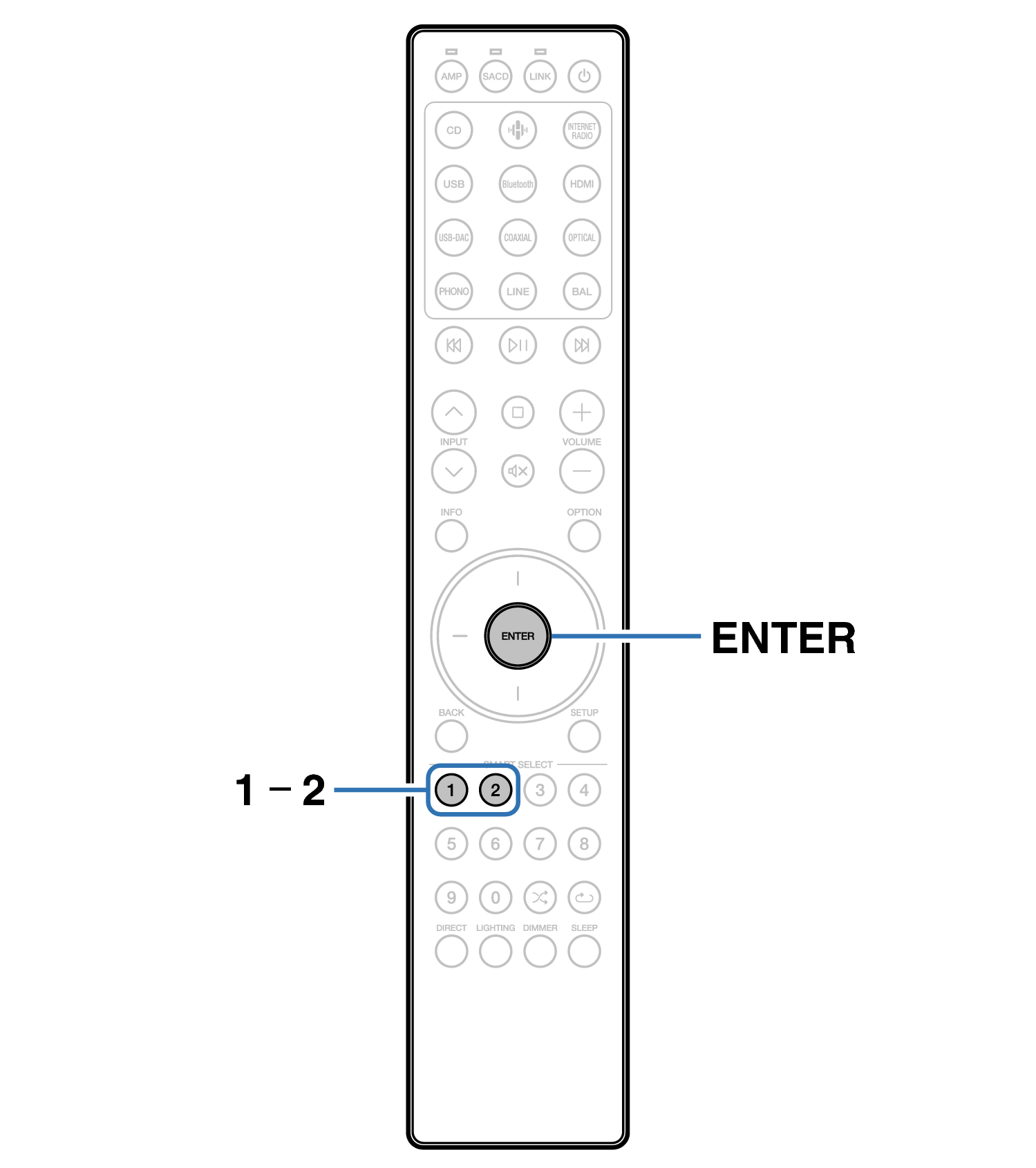

Ope volume mode RC004PMND

On the included remote control, you can set the device to be operated by the volume buttons so that you can adjust the volume of this unit when it is either in SACD player operating mode. You can also set it to adjust the volume of a connected amplifier in streaming preamplifier operation mode. You can select either “Amplifier” or “Streaming Preamplifier” as the device to be operated by the volume buttons on the remote control.

After setting the device to be operated by the volume buttons on the remote control, be sure to check the operation of your device.

Switching the device to be operated affects the VOLUME Button_Plus Mz Button_Minus Mz and Silent buttons on the remote control.
