Playing songs from your iPhone, iPod touch, iPad or Mac

You can stream music stored in your “iPhone/iPod touch/iPad/Mac” directly to this unit.

Connect your iPhone, iPod touch, iPad or Mac Wi-Fi to the same network as this unit.

For details, see your device’s manual.

Open Apple Music and play music from your iPhone, iPod touch or iPad.

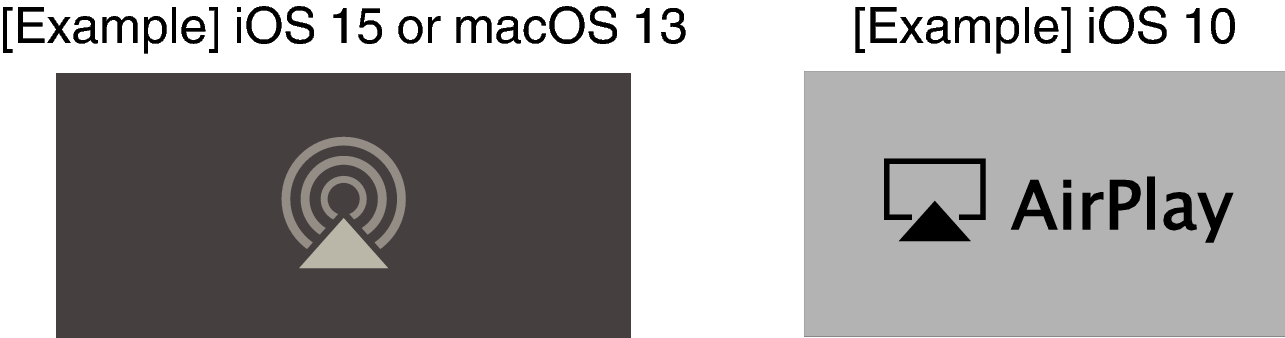

Tap or click the AirPlay icon and select this unit.

You can also use AirPlay to stream music from other applications. Open the Control Center, tap or click the AirPlay icon, then select this unit.

To use AirPlay, your iOS device must support iOS 10.0.2 or later, or OS X Mountain Lion 10.8 or later.
