Specifying the zone used with the remote control unit

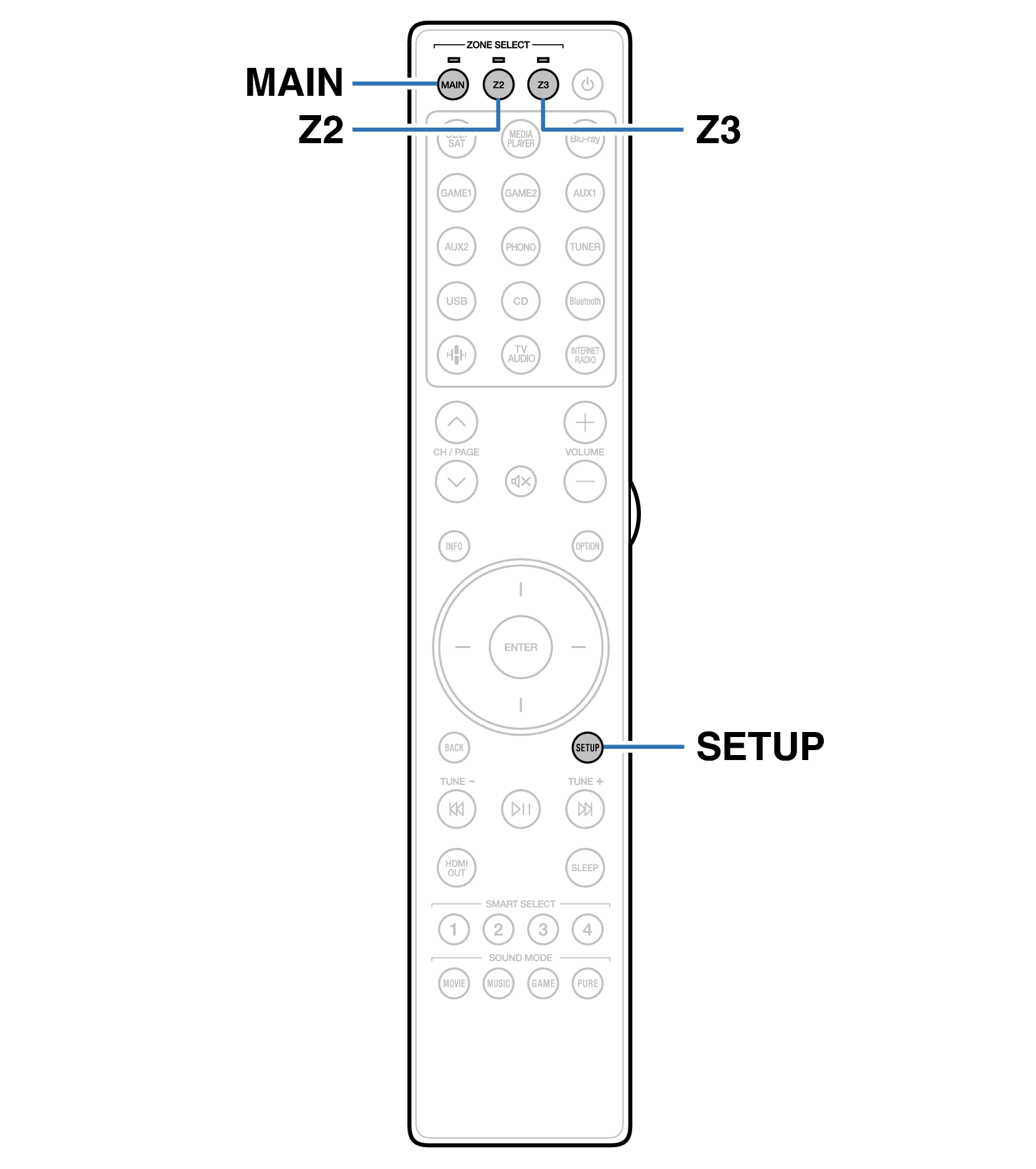

Ope ZoneOpe RC051SR

To prevent accidental misuse, you can set the zone for which the remote control unit is used.

Press and hold down either MAIN, Z2 or Z3 and SETUP at the same time until the MAIN, Z2 and Z3 indicators flash green.

MAIN:

When only using MAIN ZONE

Z2:

When using MAIN ZONE and ZONE2

Z3
(Default):

When using MAIN ZONE, ZONE2 and ZONE3
