Input Assign
By making connections as indicated by the input sources printed on the audio/video input connectors of this unit, you can just press one of the input source select buttons to easily play back audio or video from a connected device.
Please change the assignment of the HDMI input connector, digital audio input connector and analog audio input connector when connecting an input source that differs from that printed to the audio/video input connectors of this unit.
Sets the audio input mode for each “INPUT MODE” source. “AUTO” is normally recommended for this setting. This automatically detects and plays signal input to this unit prioritized in the following order: HDMI
DIGITAL ANALOG.

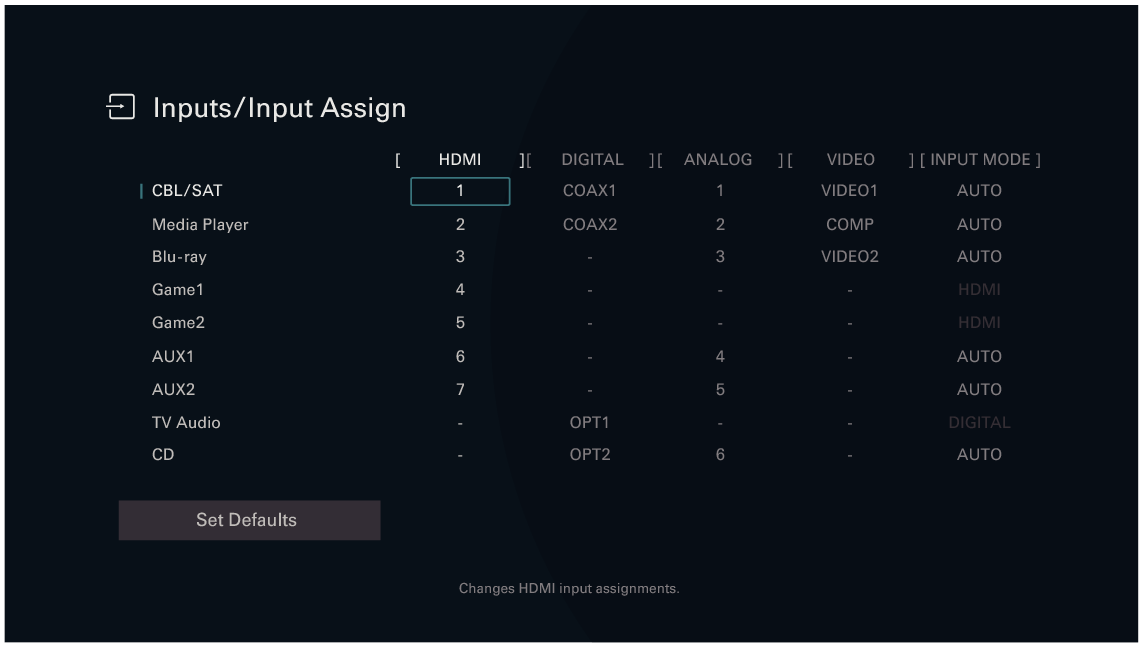

By default, each item is set as follows.
|
Input source |
Input connector |
INPUT MODE |
|||
|---|---|---|---|---|---|
|
HDMI |
DIGITAL |
ANALOG |
VIDEO |
||
|
CBL/SAT |
1 |
COAX1 |
1 |
VIDEO1 |
AUTO |
|
Media Player |
2 |
COAX2 |
2 |
COMP |
AUTO |
|
Blu-ray |
3 |
– |
3 |
VIDEO2 |
AUTO |
|
Game1 |
4 |
– |
– |
– |
HDMI |
|
Game2 |
5 |
– |
– |
– |
HDMI |
|
AUX1 |
6 |
– |
4 |
– |
AUTO |
|
AUX2 |
7 |
– |
5 |
– |
AUTO |
|
TV Audio |
– |
OPT1 |
– |
– |
DIGITAL |
|
CD |
– |
OPT2 |
6 |
– |
AUTO |
TV set top box/satellite users please note
When using the digital audio output on a TV/satellite box:
To play the video signal assigned to “HDMI” combined with the audio signal assigned at “Input Assign” - “DIGITAL”, you will also need to select “DIGITAL” in the “INPUT MODE”.
The same input connector can be assigned to multiple input sources. For example, assign the same HDMI input connector to multiple sources to use each input source in combination with analog or digital audio as you prefer. In such cases, set the audio connector for playback in “INPUT MODE”.
HDMI
Set this to change the HDMI input connectors assigned to the input sources.
|
1 / 2 / 3 / 4 / 5 / 6 / 7 |
Assign an HDMI input connector to the selected input source. |
|
– : |
Do not assign an HDMI input connector to the selected input source. |
When “HDMI Control” or “ARC” is set to “On” in the menu, “HDMI” cannot be assigned to “TV Audio”. (HDMI Controllink, ARClink)
The eARC function does not operate when “HDMI” is set as the “TV Audio” input source.
DIGITAL
Set this to change the digital audio input connectors assigned to the input sources.
|
COAX1 (Coaxial) / COAX2 / |
Assign a digital audio input connector to the selected input source. |
|
– : |
Do not assign a digital audio input connector to the selected input source. |
ANALOG
Set this to change the analog audio input connectors assigned to the input sources.
|
1 / 2 / 3 / 4 / 5 / 6: |
Assign a analog audio input connector to the selected input source. |
|
– : |
Do not assign a analog audio input connector to the selected input source. |
VIDEO
Set this to change the component video input connectors and composite video input connectors assigned to the input sources.
|
COMP (Component video) / |
Assign the video input connector to the selected input source. |
|
– : |
Do not assign a video input connector to the selected input source. |
INPUT MODE
Set the audio input modes for each input source.
It is normally recommended to set the audio input mode to “AUTO”.
|
AUTO |
Automatically detect input signal and perform playback. |
|
HDMI: |
Play only signals from HDMI input. |
|
DIGITAL: |
Play only signals from digital audio input. |
|
ANALOG: |
Play only signals from analog audio input. |
If “ARC” is set to “On” and a TV compatible with the ARC is connected via the HDMI OUT TV 1 connectors, the input mode whose input source is “TV Audio” is fixed to ARC.
When an eARC function-compatible television is connected to the HDMI OUT TV 1 connector, the input mode whose input source is “TV Audio” is fixed to eARC.
Set Defaults
The “Input Assign” settings are returned to the default settings.
