Types of input signals, and corresponding sound modes

Kuromaru-Large This indicates the default sound mode.

Circle-Large This indicates the selectable sound mode.

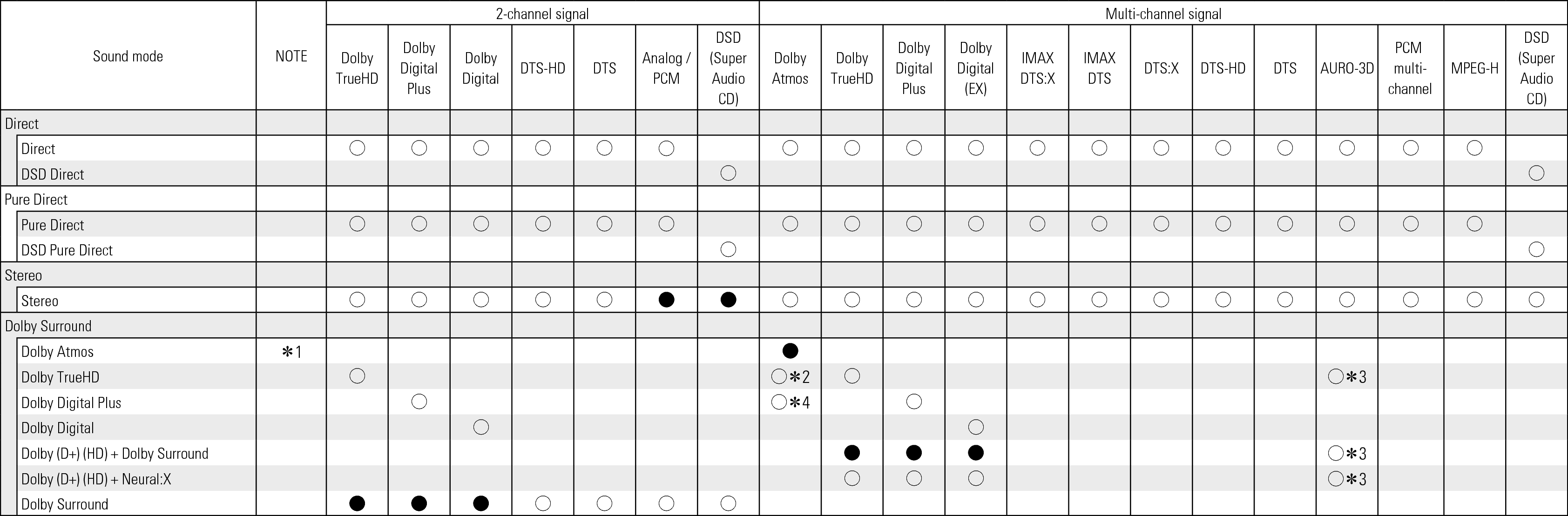

Tsignal & Csound1 X68

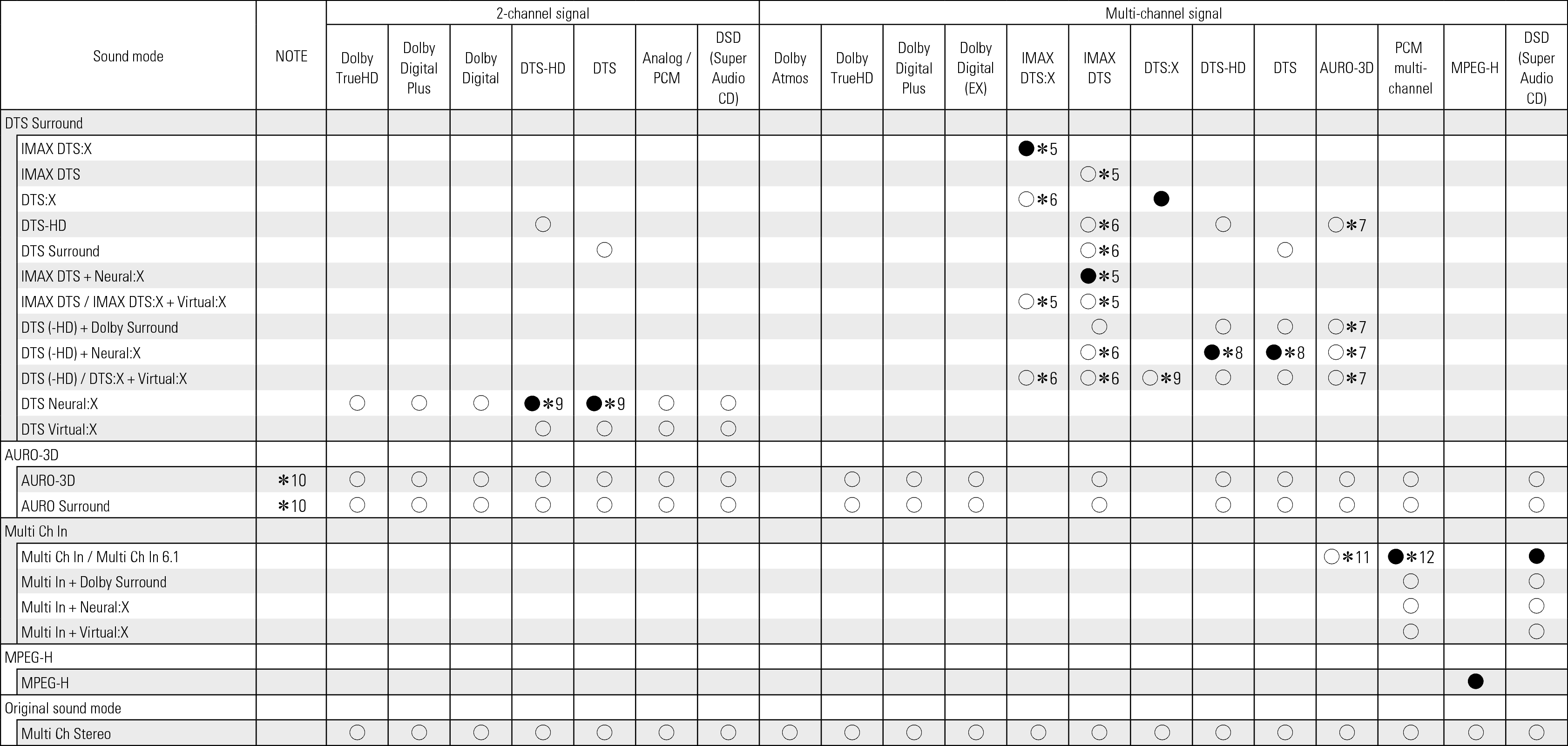

Tsignal & Csound2 C30

This item can be selected when using any of the Surround Back, Front Height, Top Front, Top Middle, Top Rear, Rear Height, Front Dolby, Surround Dolby or Back Dolby speaker. It can also be selected when the “Surround Parameter” - “Speaker Virtualizer” setting is turned “On”.

This can be selected when the Dolby Atmos signal contains the Dolby TrueHD signal.

This item can be selected if the AURO-3D signal contains Dolby TrueHD.

This can be selected when the Dolby Atmos signal contains the Dolby Digital Plus signal.

Selectable when “Surround Parameter” - “IMAX” is set to “Auto” in the menu. link

Selectable when “Surround Parameter” - “IMAX” is set to “Off”. (Selectable sound modes vary depending on the type of input signal). link

This item can be selected if the AURO-3D signal contains DTS-HD.

This item cannot be selected when a DTS(-HD) format with a sampling frequency of over 48 kHz is input.

This item cannot be selected when a DTS:X format with a sampling frequency of over 48 kHz is input.

This item cannot be selected if the sampling frequency of the input signal is 32 kHz.

This item can be selected if the AURO-3D signal contains Multi Channel PCM.

Multi ch In 7.1 can be selected only when the input signals include surround back signals and surround back speakers are being used.
