Connecting 9.1-channel speakers

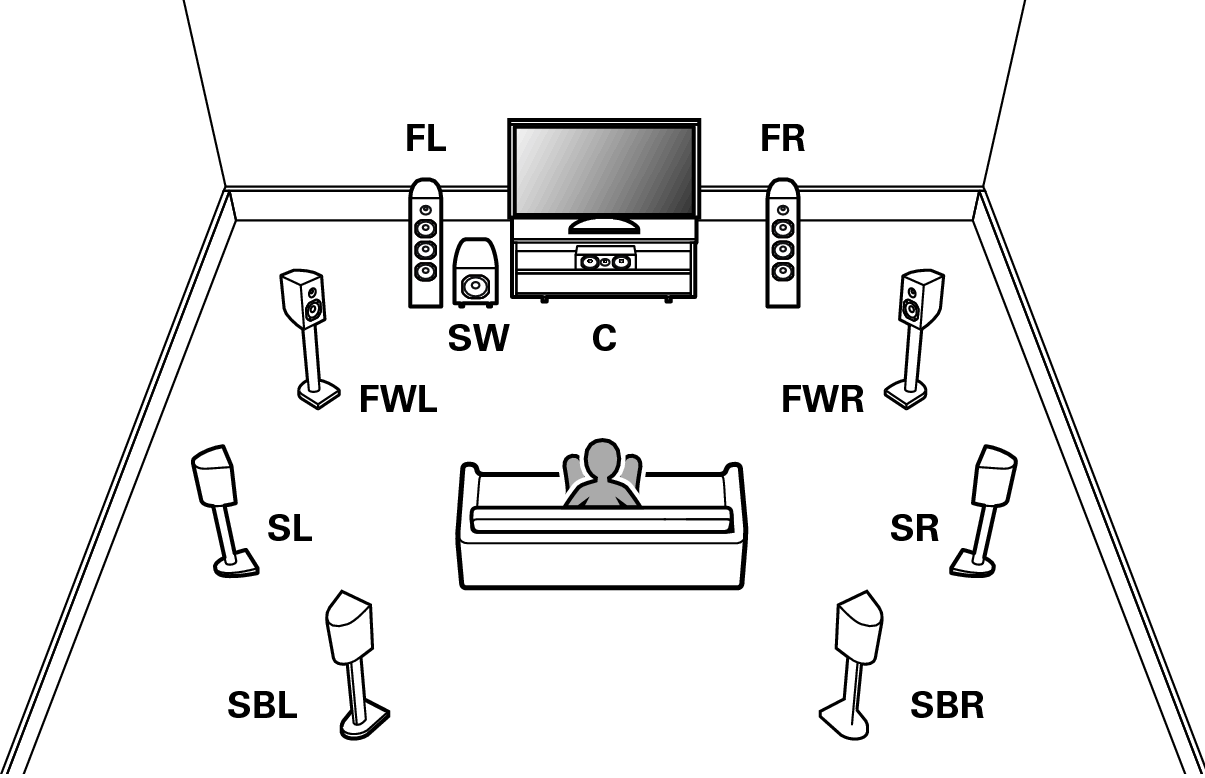

Example layout when using surround back and front wide speakers

Pict SP Layout 9.1 SB FW1

For each speaker connection, refer to the following.

Connecting speakers to the speaker terminalslink

Connecting an external power amplifierlink

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Front Wide: Yes
Subwoofers: 1 spkr

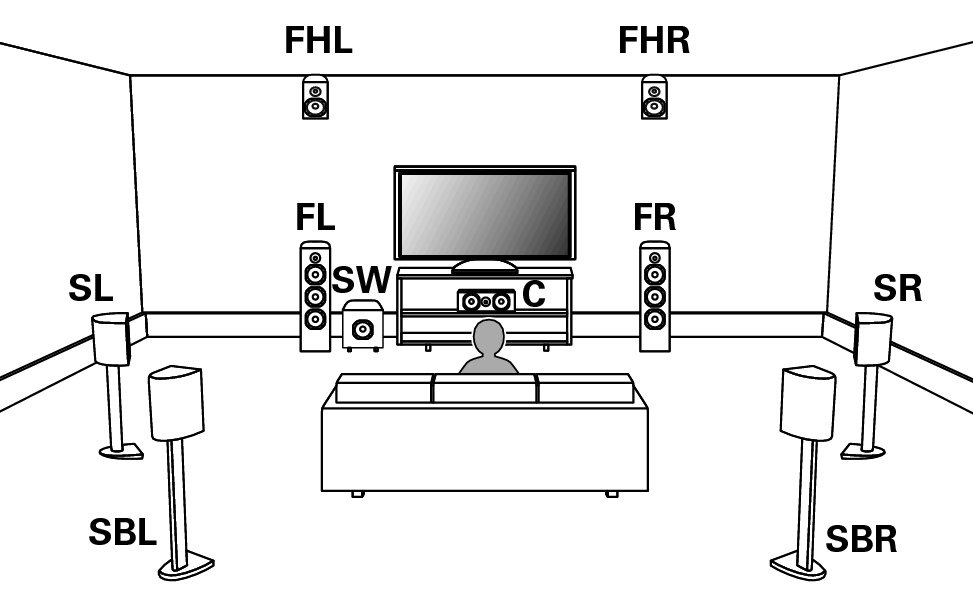

Example layout when using surround back and one set of height speakers

Pict SP Layout 9.1 FH1

For each speaker connection, refer to the following.

Connecting speakers to the speaker terminalslink

Connecting an external power amplifierlink

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Height Speakers: 2 spkrs
Layout: Front Height Flower Mark
Subwoofers: 1 spkr

The front height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.

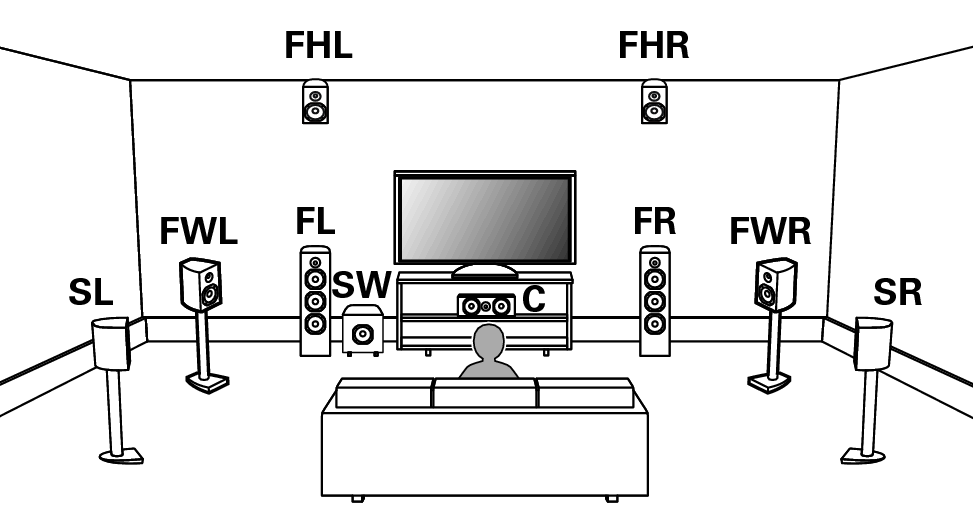

Example layout when using front wide and one set of height speakers

Pict SP Layout 9.1 FW FH1

For each speaker connection, refer to the following.

Connecting speakers to the speaker terminalslink

Connecting an external power amplifierlink

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Front Wide: Yes
Height Speakers: 2 spkrs
Layout: Front Height Flower Mark
Subwoofers: 1 spkr

The front height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.

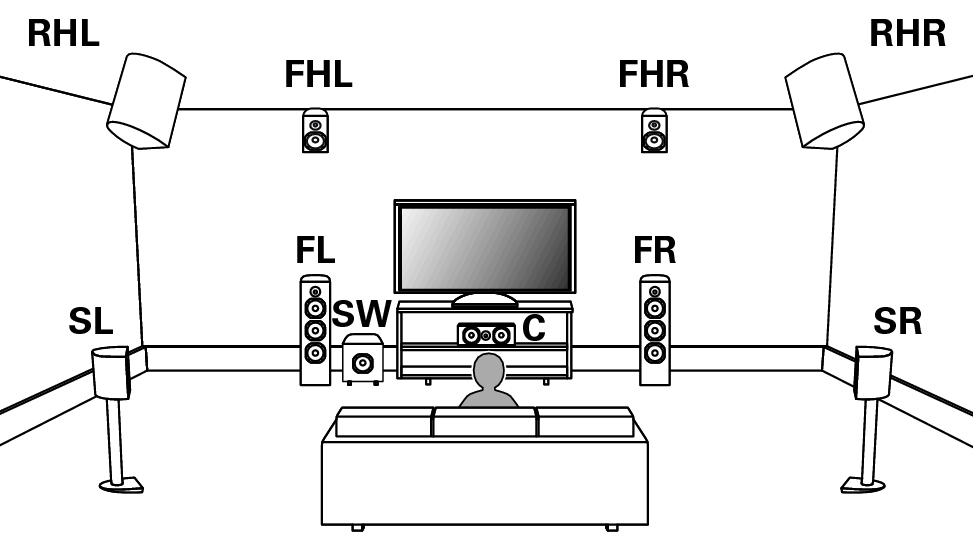

Example layout when using two sets of height speakers

Pict SP Layout 9.1 RH FH1

For each speaker connection, refer to the following.

Connecting speakers to the speaker terminalslink

Connecting an external power amplifierlink

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height Speakers: 4 spkrs
Front Layout: Front Height Flower Mark
Rear Layout: Rear Height Flower Mark
Subwoofers: 1 spkr

The front height speakers and rear height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.

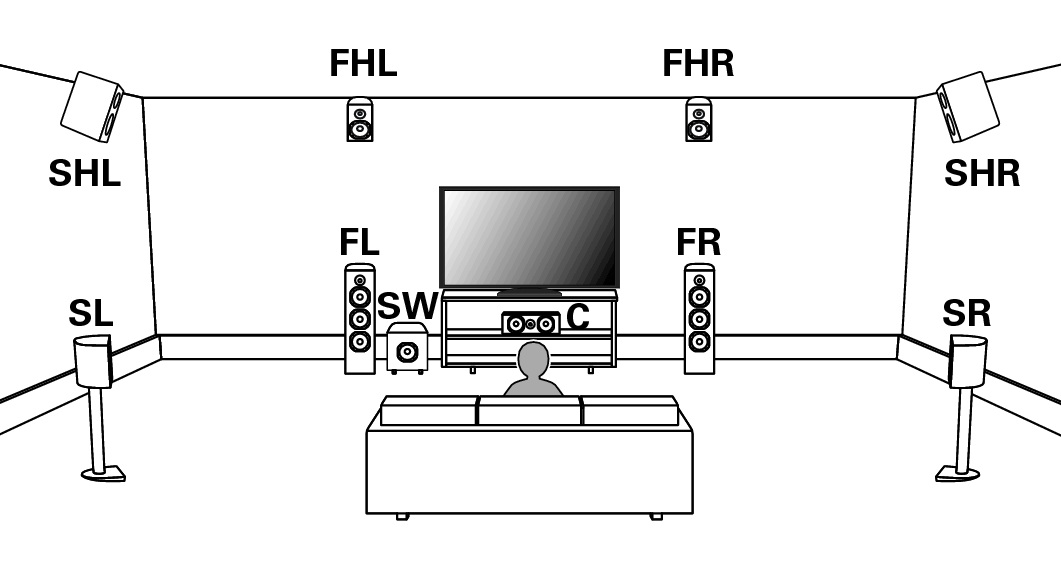

Example layout for AURO-3D 9.1 channel system

This speaker configuration is optimized for AURO-3D playback.

Pict SP Layout 9.1 Auro3D

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height Speakers: 4 spkrs
Front Layout: Front Height
Rear Layout: Surround Height
Subwoofers: 1 spkr

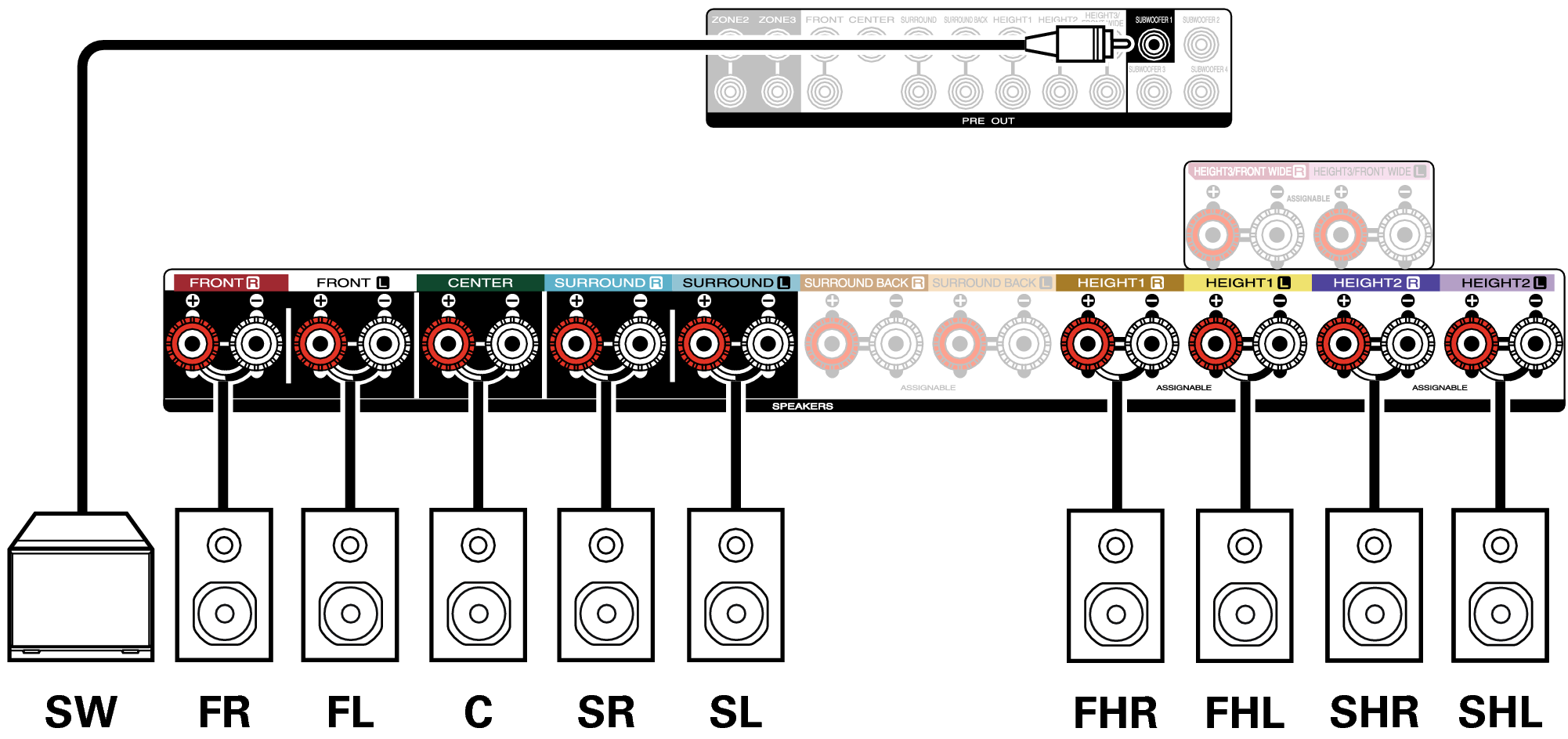

Conne SP 9.1 Auro C30U
