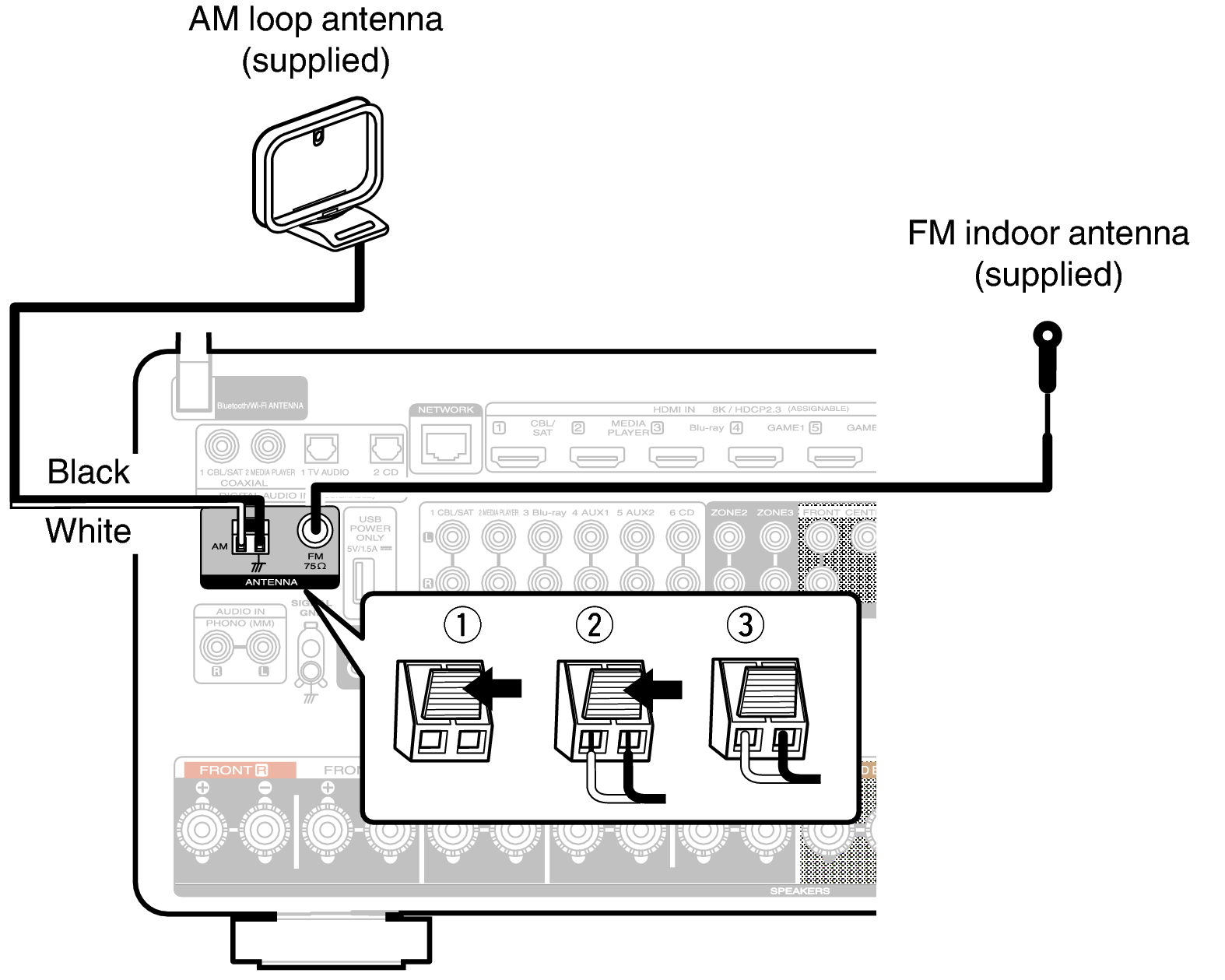

Connecting FM/AM antennas

Connect the antenna, tune in to a broadcast and then move the antenna to the location where there is least noise. Then use tape, etc. to fix the antenna in this location. (Listening to FM/AM broadcastslink)

If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For details, inquire at the retail store where you purchased the unit.

NOTE

Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.

Conne ANT C30U

Using the AM loop antenna

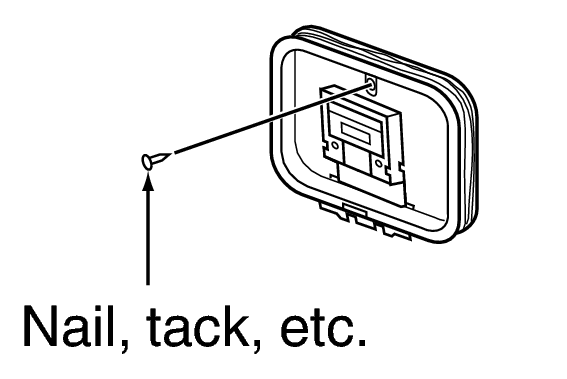

Suspending on a wall

Suspend directly on a wall without assembling.

Conne AM antenna1

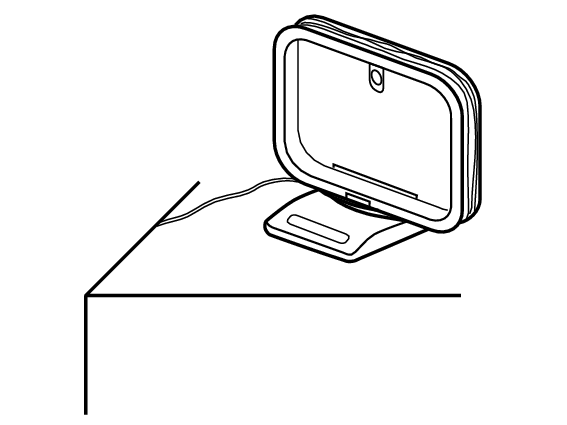

Standing alone

Use the procedure shown above to assemble.

When assembling, refer to “AM loop antenna assembly”.

Conne AM antenna2

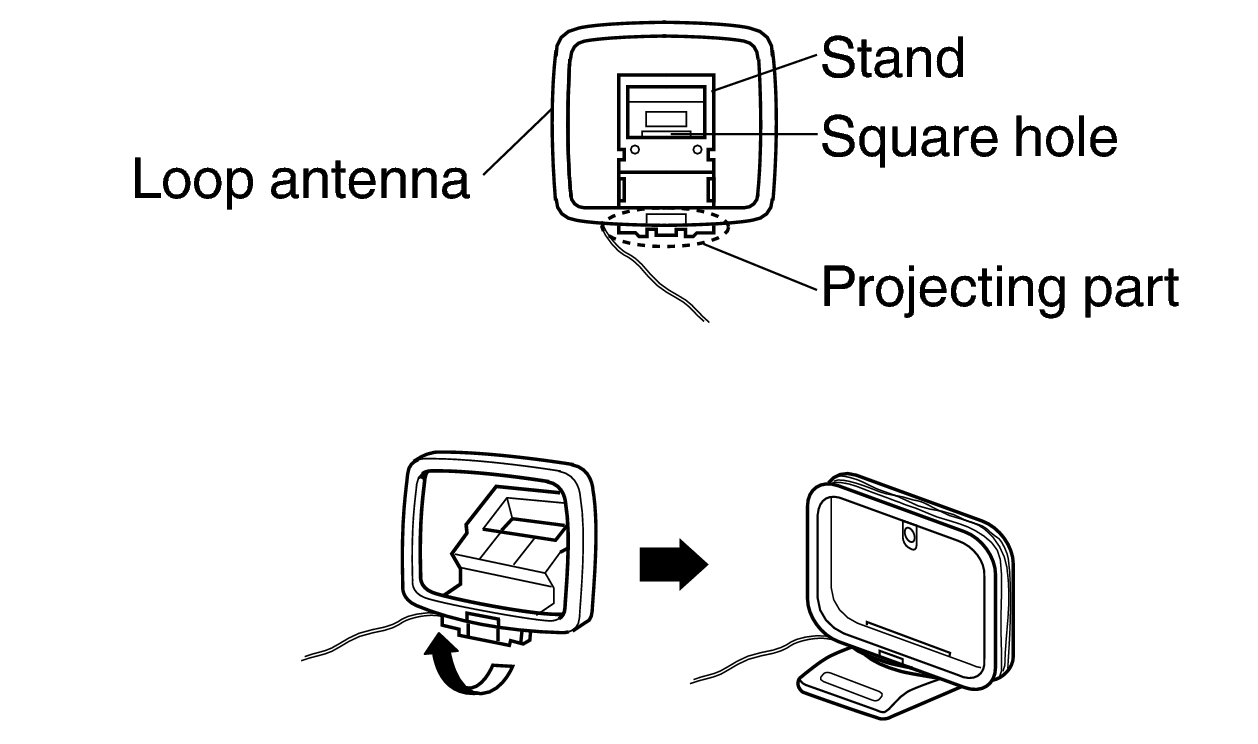

AM loop antenna assembly

Put the stand section through the bottom of the loop antenna from the rear and bend it forward.
Insert the projecting part into the square hole in the stand.
Conne AM antenna
