Playback the source in ZONE2/ZONE3

Playing the same source simultaneously in MAIN ZONE, ZONE2 and ZONE3 (TV Audio Sharing setting)

The TV Audio Sharing setting of this unit can be used to output all signals from ZONE2 and ZONE3 by setting “Source” as the input source for ZONE2 and ZONE3. When playing audio input from a TV via the ARC or eARC or audio input from a playback device, you can enjoy the original input audio format, such as Dolby Atmos, in surround sound in MAIN ZONE while playing the same content in ZONE2 and ZONE3.

Only the controls on the main unit can be used to set “Source” as the input source.

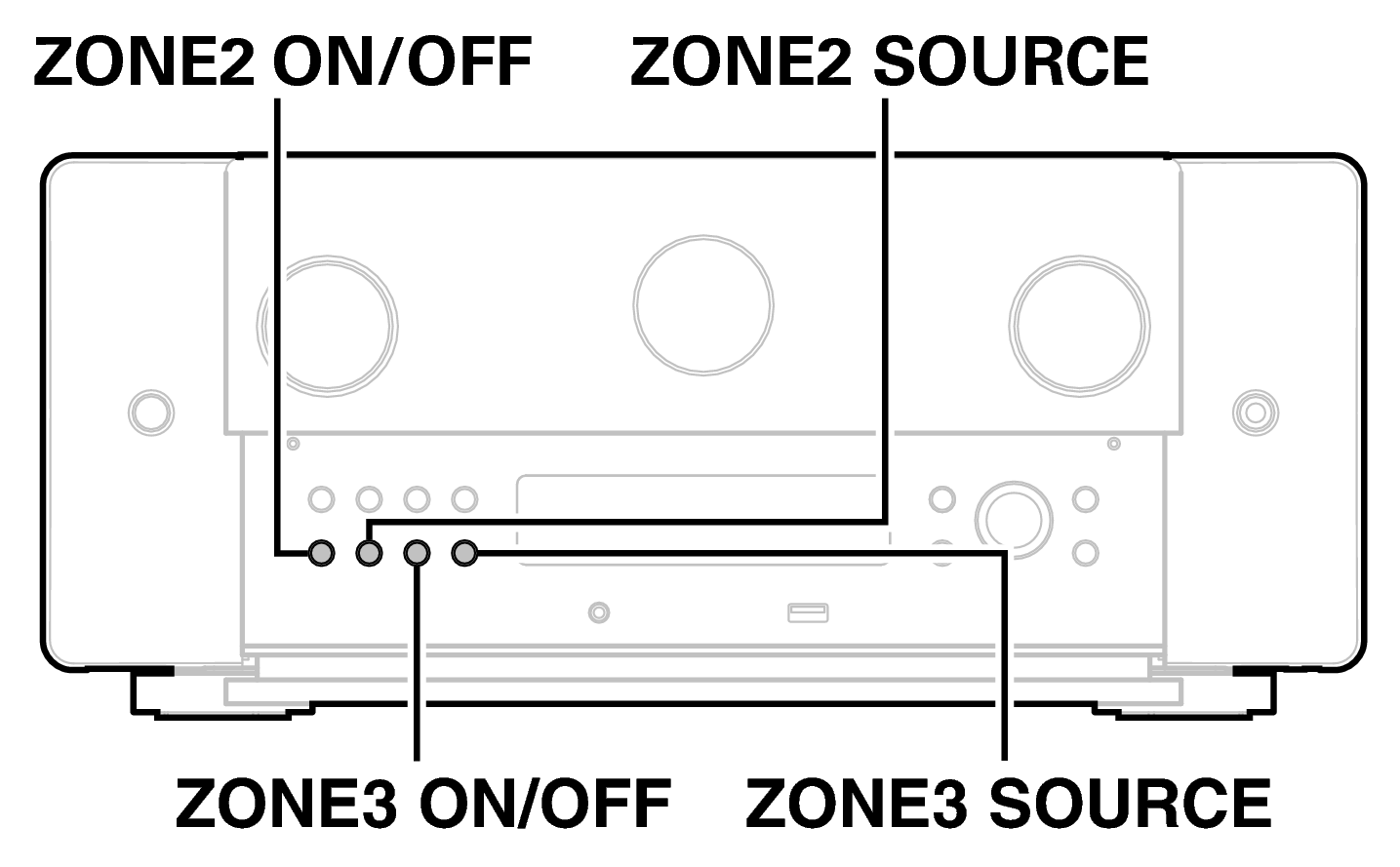

Ope Zone AV10

Select the input source to play back in the MAIN ZONE.

Press ZONE2 ON/OFF or ZONE3 ON/OFF on the main unit to turn on the power of ZONE2 or ZONE3.

The MULTI ZONE indicator on the display lights.

Press ZONE2 SOURCE or ZONE3 SOURCE on the main unit to switch the input source of ZONE2 or ZONE3 to “Source”.

If “Source” is selected as the input source of ZONE2 or ZONE3, the input source is changed to mirror that of the MAIN ZONE. “Source” is the default setting.

The following audio signals can be played in ZONE2 and ZONE3.

Input	Output
Input	ZONE2	ZONE3
Digital Audio (HDMI)
Digital Audio (Coaxial/Optical)
Analog Audio
USB
HEOS Music
TUNER

Playing different sources in MAIN ZONE, ZONE2 and ZONE3

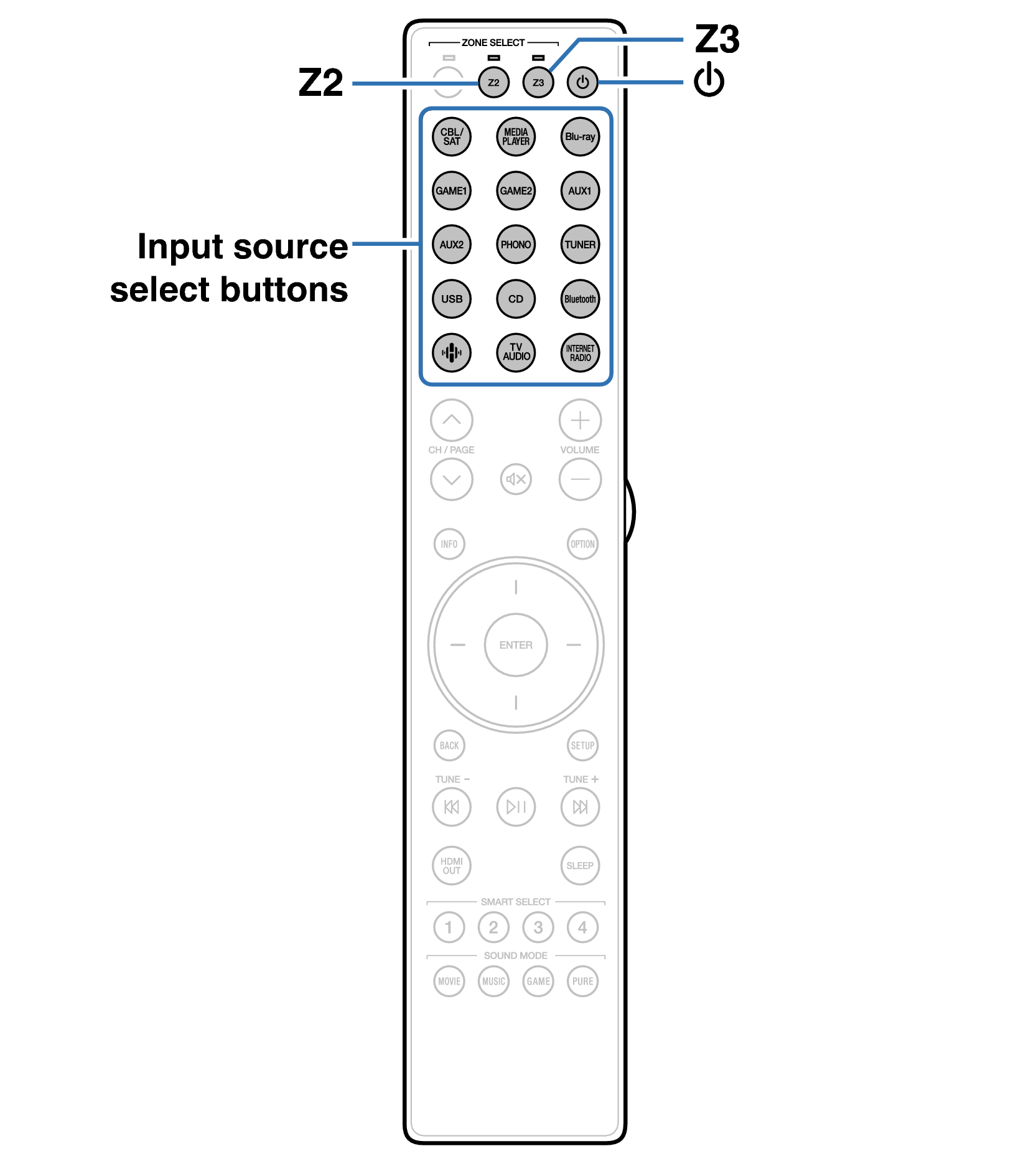

Ope ZONE RC051SR

Press Z2 or Z3 to select the operating zone with the remote control.

The indicator for the selected zone is lit.

Press POWER Power Button

to turn on the ZONE2 or ZONE3 power.

The MULTI ZONE indicator on the display lights.

Power in ZONE2 or ZONE3 can be turned on or off by pressing ZONE2 ON/OFF or ZONE3 ON/OFF on the main unit.

Press the input source select button to select the input source to be played.

The audio signal of the selected source is output to ZONE2 or ZONE3.

To perform an operation with the main unit, press ZONE2 SOURCE or ZONE3 SOURCE. Each time you press ZONE2 SOURCE or ZONE3 SOURCE, the input source changes.

The following audio signals can be played in ZONE2 and ZONE3.

Input	Output
Input	ZONE2	ZONE3
Digital Audio (HDMI)	∗1
Digital Audio (Coaxial/Optical)	∗2	∗2
Analog Audio
USB
HEOS Music
TUNER

To play an HDMI signal other than PCM 2-channel in ZONE2, set “HDMI Audio” to “PCM”. link

Only a 2-channel PCM signal is supported.
