Adjusting the Volume in ZONE2/ZONE3

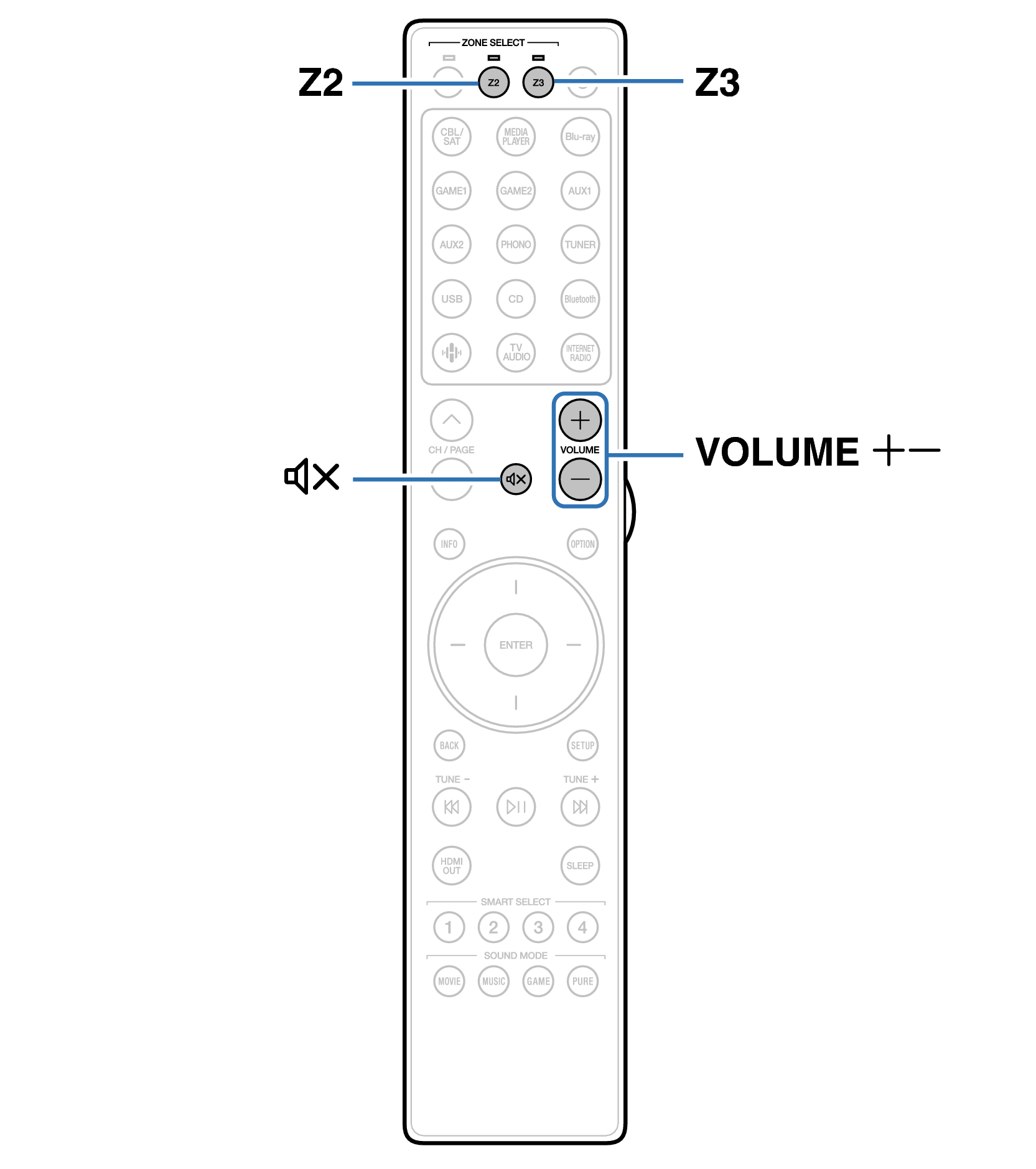

Ope ZONE2 RC051SR

Adjusting the volume

Press Z2 or Z3 to select the operating zone with the remote control.

The indicator for the selected zone is lit.

Use VOLUME  Volup Voldown to adjust the volume.

At time of purchase, “Volume Limit” is set to “70 (–10 dB)”. link

Turn VOLUME after pressing ZONE2 SOURCE or ZONE3 SOURCE on the main unit to adjust the volume.

Turning off the sound temporarily (Muting)

Press Z2 or Z3 to select the operating zone with the remote control.

The indicator for the selected zone is lit.

Press MUTE  Silent .

The sound is reduced to the level set at “Mute Level” in the menu. link

To cancel mute, either adjust the sound volume or press MUTE  Silent again.
