Video conversion function

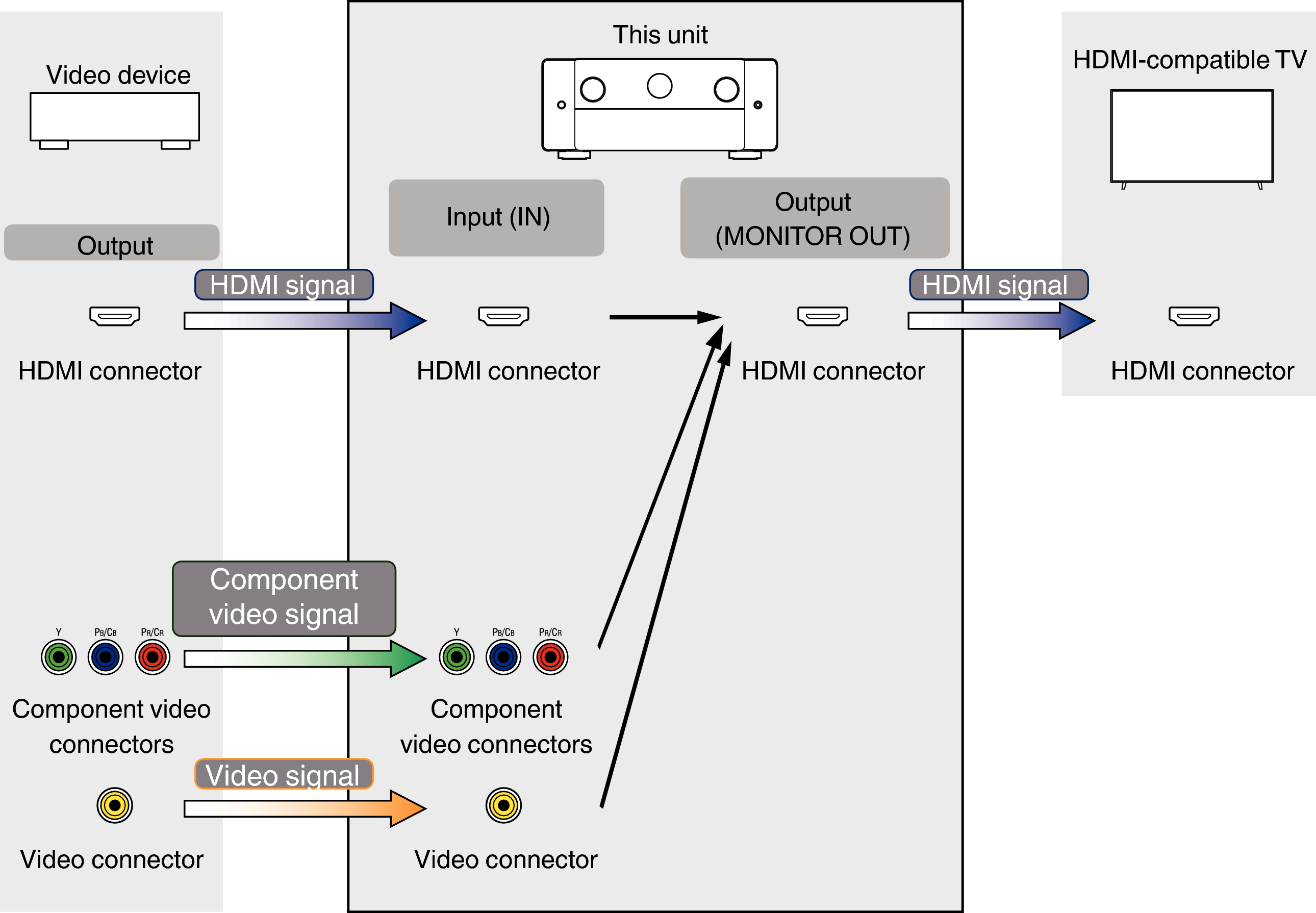

This unit automatically converts the input video signals as shown in the diagram before outputting them to the TV.

Pict VideoSignal C40

The MAIN ZONE Video Conversion function is compatible with the following formats: NTSC, PAL, SECAM, NTSC4.43, PAL-N, PAL-M and PAL-60.

When component video signals are used, only 480i and 576i signals are converted to HDMI signals.

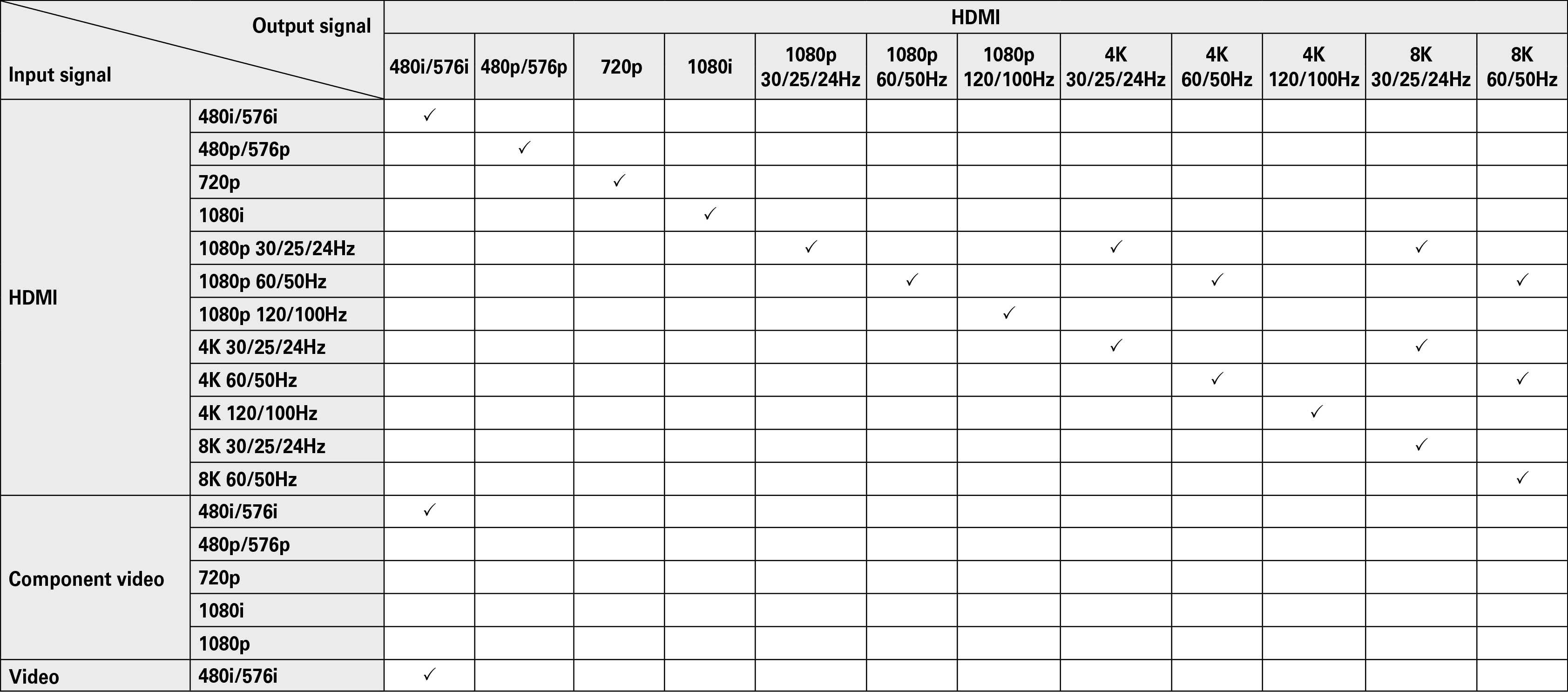

When “HDMI Upscaler” in the menu is set to “Auto”, this unit upscales the input HDMI video signal and then outputs it to the TV.link

Pict VideoTable X48
