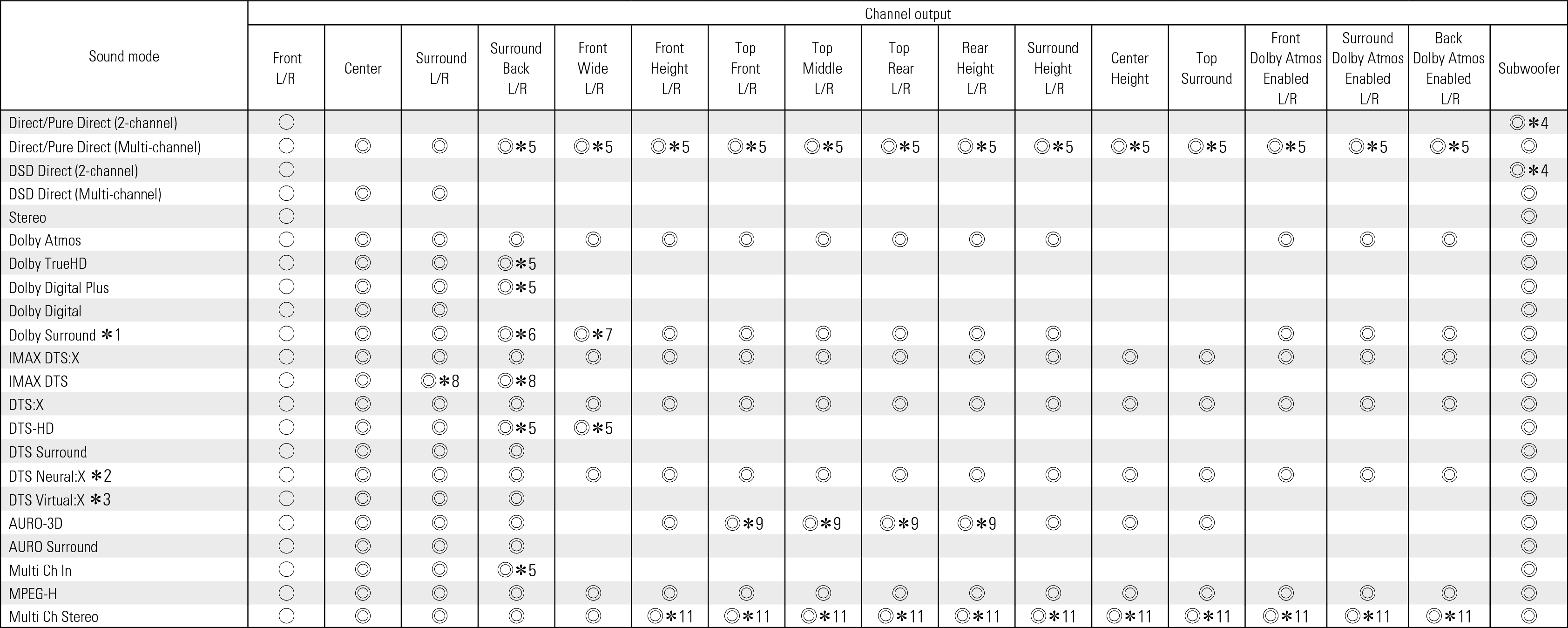

Sound modes and channel output

Circle-Large This indicates the audio output channels or surround parameters that can be set.

Double Ciecle This indicates the audio output channels. The output channels depend on the settings of “Speaker Layout”. link

Smode & Cout1 C30

The applicable sound mode includes “Dolby Surround” and sound modes that have “+Dolby Surround” in the sound mode name.

The applicable sound mode includes “DTS Neural:X” and sound modes that have “+Neural:X” in the sound mode name.

The applicable sound mode includes “DTS Virtual:X” and sound modes that have “+Virtual:X” in the sound mode name.

Audio is output when “Low Frequency Effects” - “Subwoofer Output” in the menu is set to “LFE + Main”. link

A signal for each channel contained in an input signal is output as audio.

Audio is not output when the “Surround Parameter” - “Speaker Virtualizer” in the menu is set to “On” and “Speaker Layout” - “Surround Back” in the menu is set to “1 spkr”. link, link

Audio is not output when the “Surround Parameter” - “Speaker Virtualizer” is set to “On”. link

When “Speaker Layout” - “Surround Back” is set to “2 spkrs”, “Speaker Layout” - “Center” is set to “Yes”, and sound mode is set to “IMAX DTS”, surround audio is output from the surround back speaker. Audio is not output from the surround speaker. link

For the best AURO-3D experience Front Height, Top Surround and Surround Height speakers are recommended, however you may substitute Top speakers.

For the best AURO-3D experience Front Height and Surround Height speakers are recommended, however you may substitute rear height, ceiling speaker or Dolby Atmos Enabled speakers.

Audio is output from the speakers specified in the “Surround Parameter” - “Speaker Select” settings. link
