Connecting an external power amplifier

You can use this unit as a preamplifier by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced.

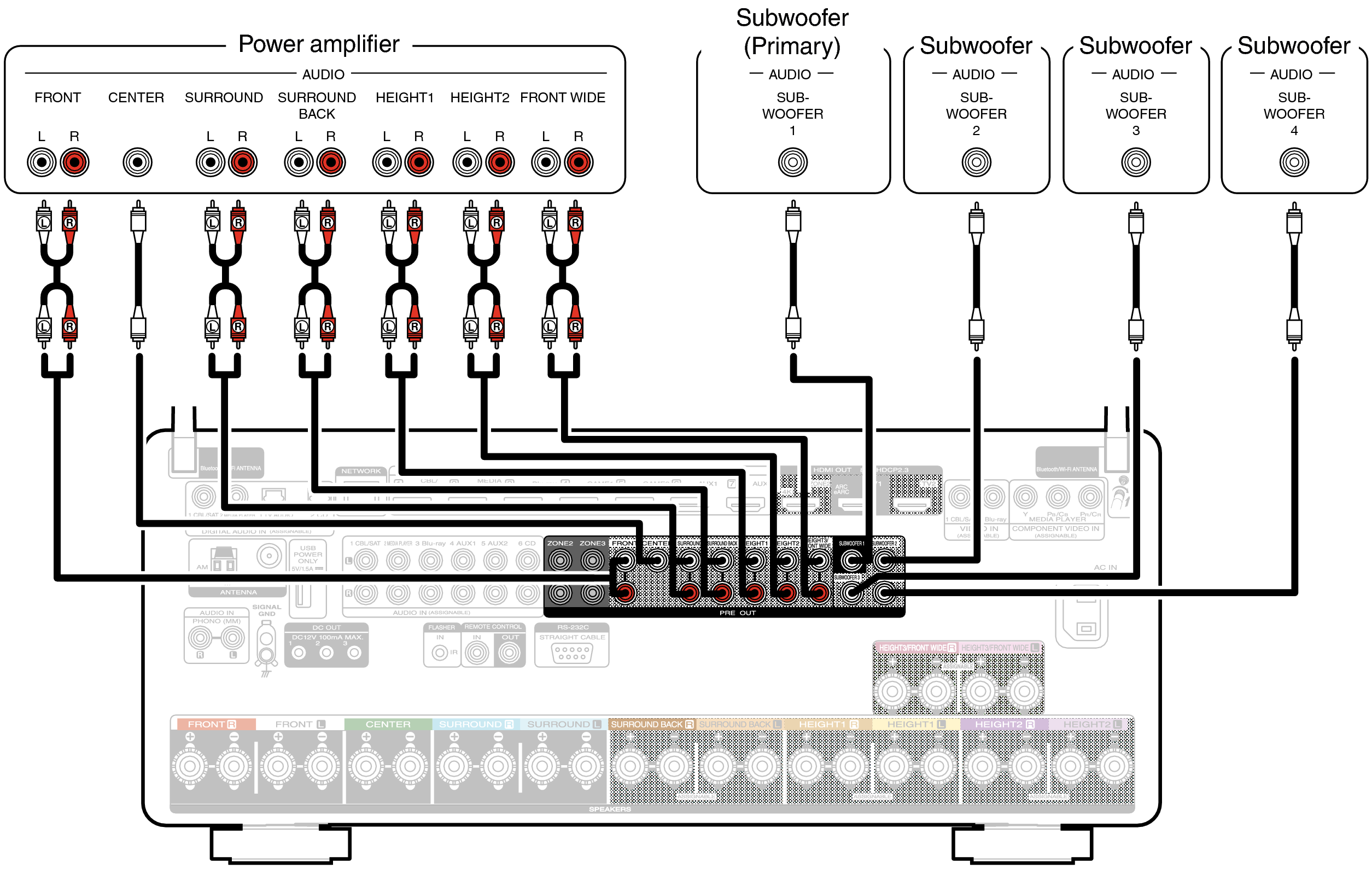

Select the terminal to use and connect the device.

Conne PRE OUT C30U

Set “Amp Assign” to “Preamplifier” if connecting all channels to the Pre-out connectors using an external amplifier. link
This stops operation of the internal power amplifier of this unit, reducing interference in the preamplifier created by the power amplifier.

You can use the “Connection” setting in the Speaker Layout Menu to disconnect the built-in power circuit of each channel individually and use just your favorite channel as the Preamplifier. link

When using just one surround back speaker, connect it to the left channel (L) terminal.

The output signal for the PRE OUT connector of Height1, Height2 and Height3/Front Wide vary depending on the combination of the Height/Ceiling/Dolby Atmos Enabled speakers that you are using. For the PRE OUT connector that connects each Height/Ceiling/Dolby Atmos Enabled speaker, refer to “Speaker Layout” - “Layout” or “Front Layout / Middle Layout / Rear Layout / TS/CH”link.
