Playing back HEOS Favorites

When using the HEOS Favorites function for the first time on this unit, create a HEOS Account on the HEOS App or sign in to your account.

Once you create or sign into your HEOS Account, you can use the HEOS Favorites feature to save and recall your favorite streaming radio stations using the on-screen user interface on your AVR.

Press HM_Button (HEOS Music).

If a playback history is present, the last Internet radio station or song played is played back. Pressing HM_Button (HEOS Music) again displays the HEOS Music top menu.

Use cursor Up/Down to select “HEOS Favorites”, then press ENTER.

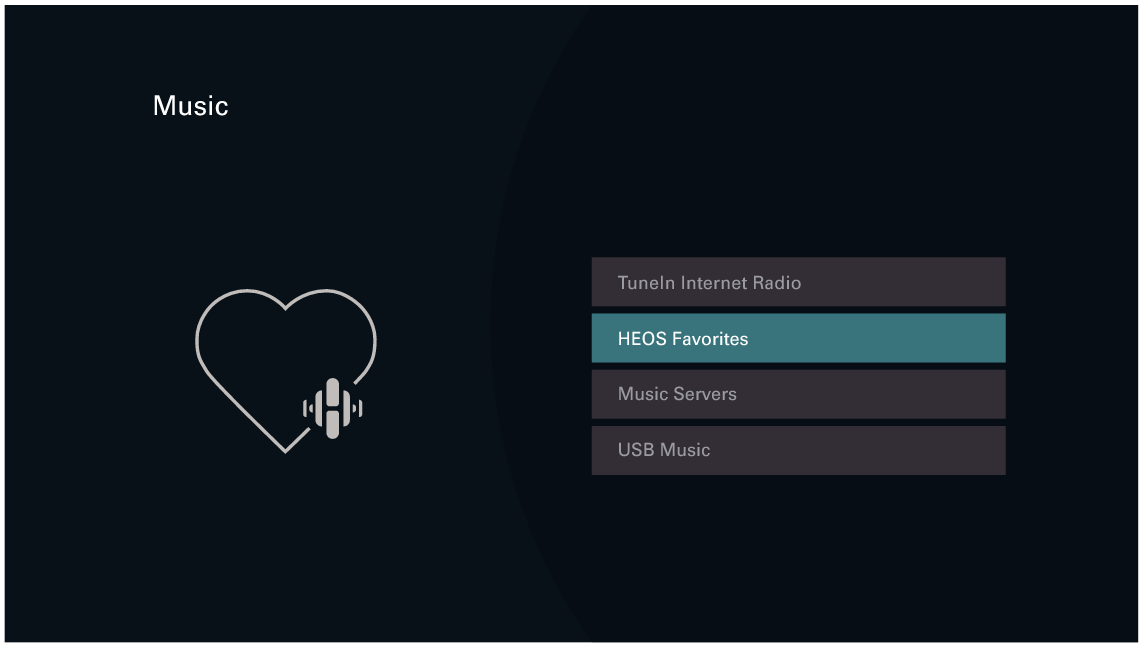

GUI Favorites Mz
Browse the content and select something to play.

“HEOS Favorites - Use HEOS app” is displayed when this unit is not synced with a HEOS Account in the HEOS App.
