Information

Show information about this unit settings, input signals, etc.

Audio

Show the audio information for MAIN ZONE.


Sound Mode:	The currently set sound mode.
Input Signal:	The input signal type.
Format:	The number of input signal channels (presence of front, surround, LFE).
Sample Rate:	The input signal’s sampling frequency.
Offset:	The dialogue normalization correction value.
Flag:	This is displayed when inputting signals including a surround back channel. “MATRIX” is displayed with DTS-ES Matrix input signals, “DISCRETE” with DTS-ES Discrete signals.

Video

Show the HDMI input/output signals and HDMI TV information for MAIN ZONE.

HDMI Signal Info.


Resolution / HDR / Color Space / Pixel Depth / ALLM / QFT / FRL Rate

TV 1 Info. / TV 2 Info.


Interface / HDR / Resolutions / Enhanced Features / Max FRL Rate

A or B may be displayed at the end of resolution. A represents uncompressed video and B represents compressed video.

Refer to “About HDMI” for more information about ALLM, QFT and FRL. link

ZONE

Show information about current settings.


MAIN ZONE:	This item shows information about settings for MAIN ZONE. The information displayed differs according to the input source.
ZONE2/3:	This item shows information about settings for ZONE2 and ZONE3.

Firmware


Version:	Displays information for the current firmware.
DTS Version:	Displays the current DTS version.

Notifications

Displays and sets notifications.

Also, sets whether or not to display the notification when the power is turned on.

Notification Alerts


On (Default):	Notification messages are displayed.
Off:	Notification messages are not displayed.

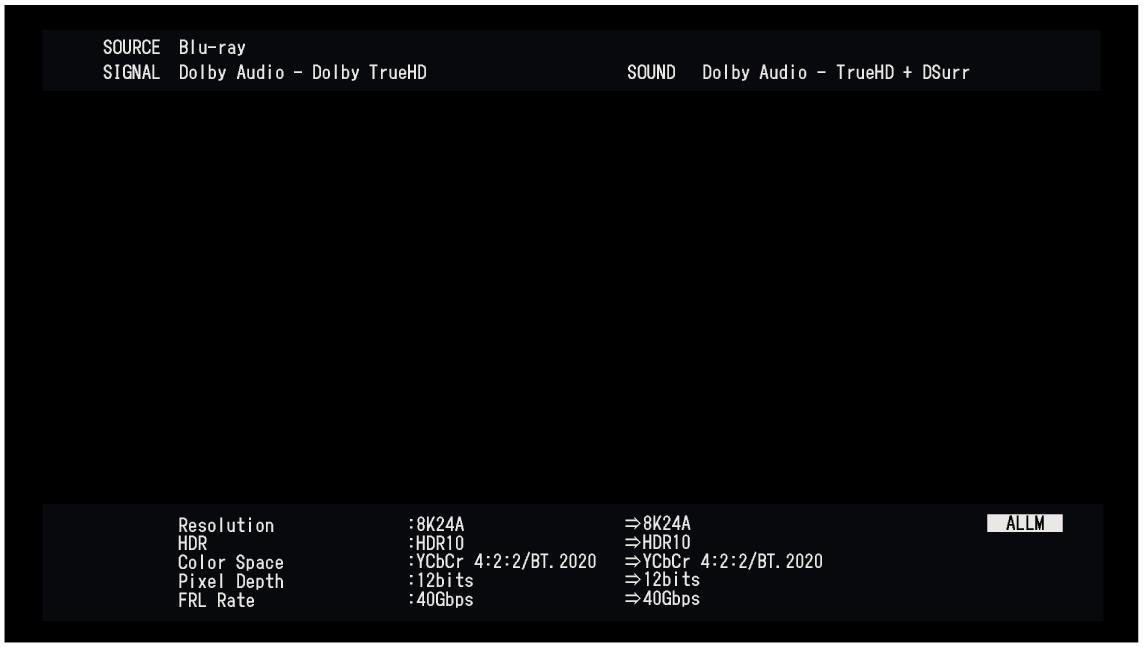

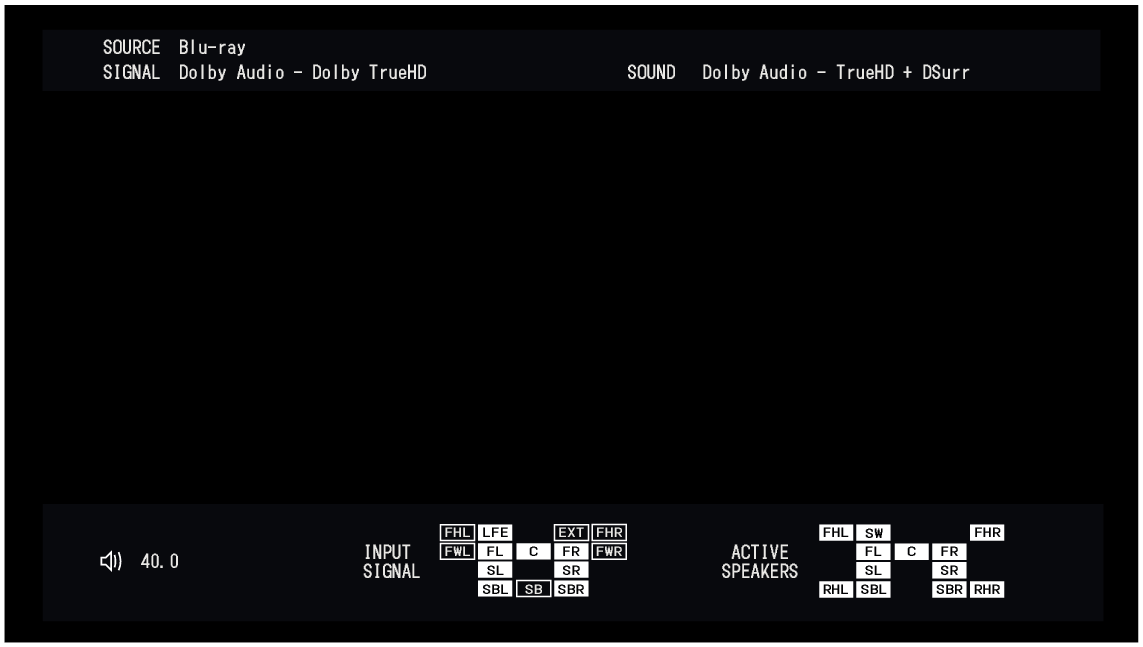

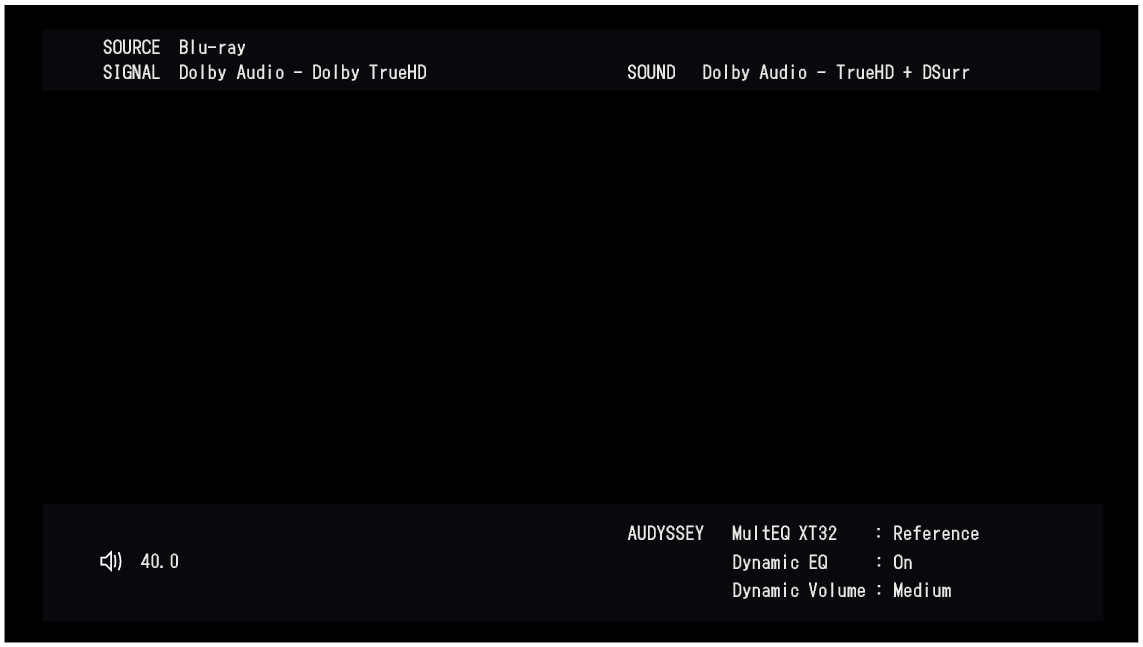

Pressing INFO on the remote control switches the display to show information such as the input source name, the volume, the sound mode name, the video input/output signals, and other information. The FRL Rate is displayed when the “4K/8K Signal Format” setting of this unit is “8K Enhanced” and the connected TV supports FRL transmission mode.

GUI Info-1 X38

GUI Info-2 X38

GUI Info-3 X38
