Connection 1 : TV equipped with an HDMI connector and compatible with the ARC / eARC

Using a high quality HDMI cable∗, connect one end to the HDMI port labeled “eARC” or “ARC” on your TV. Connect the other end to the HDMI OUT TV 1 port on this unit.

When a TV with eARC support is connected, the eARC function of this unit is enabled automatically and the television audio is played back. When a TV with ARC support is connected, set “ARC” in the menu to “On”. link

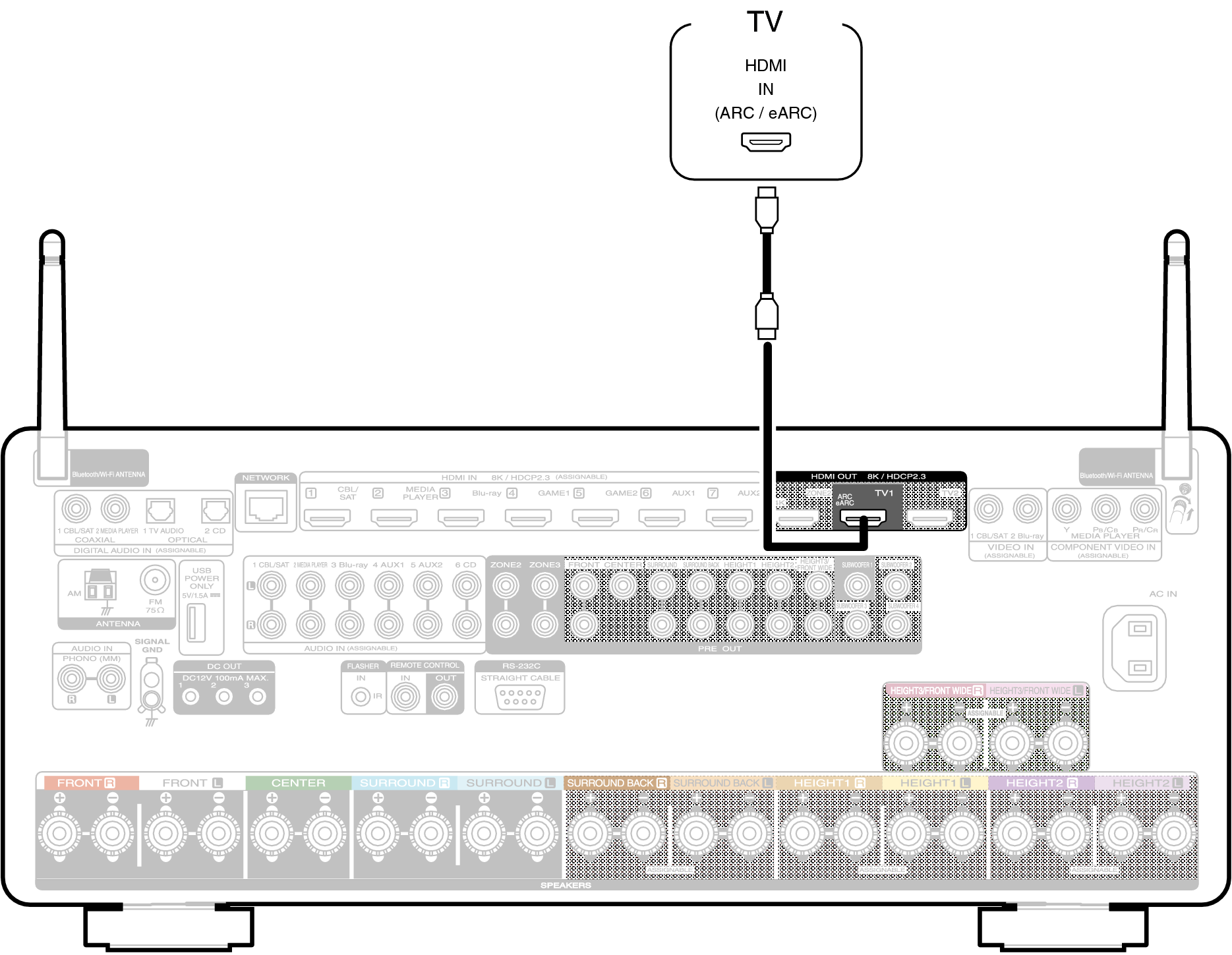

Conne HDMITV1 C30U

For 4K TVs we recommend using an HDMI cable labeled “High Speed” and “with Ethernet”.

For 8K TVs we recommend using an HDMI cable labeled “Ultra High Speed”.

eARC function settings may be required depending on the eARC function-compatible television you are using. Make sure eARC is set to on if this setting exists on your television. For more information, check your television’s owner’s manual.

Set “4K/8K Signal Format” to “8K Enhanced” in the menu to enjoy 8K video. link
