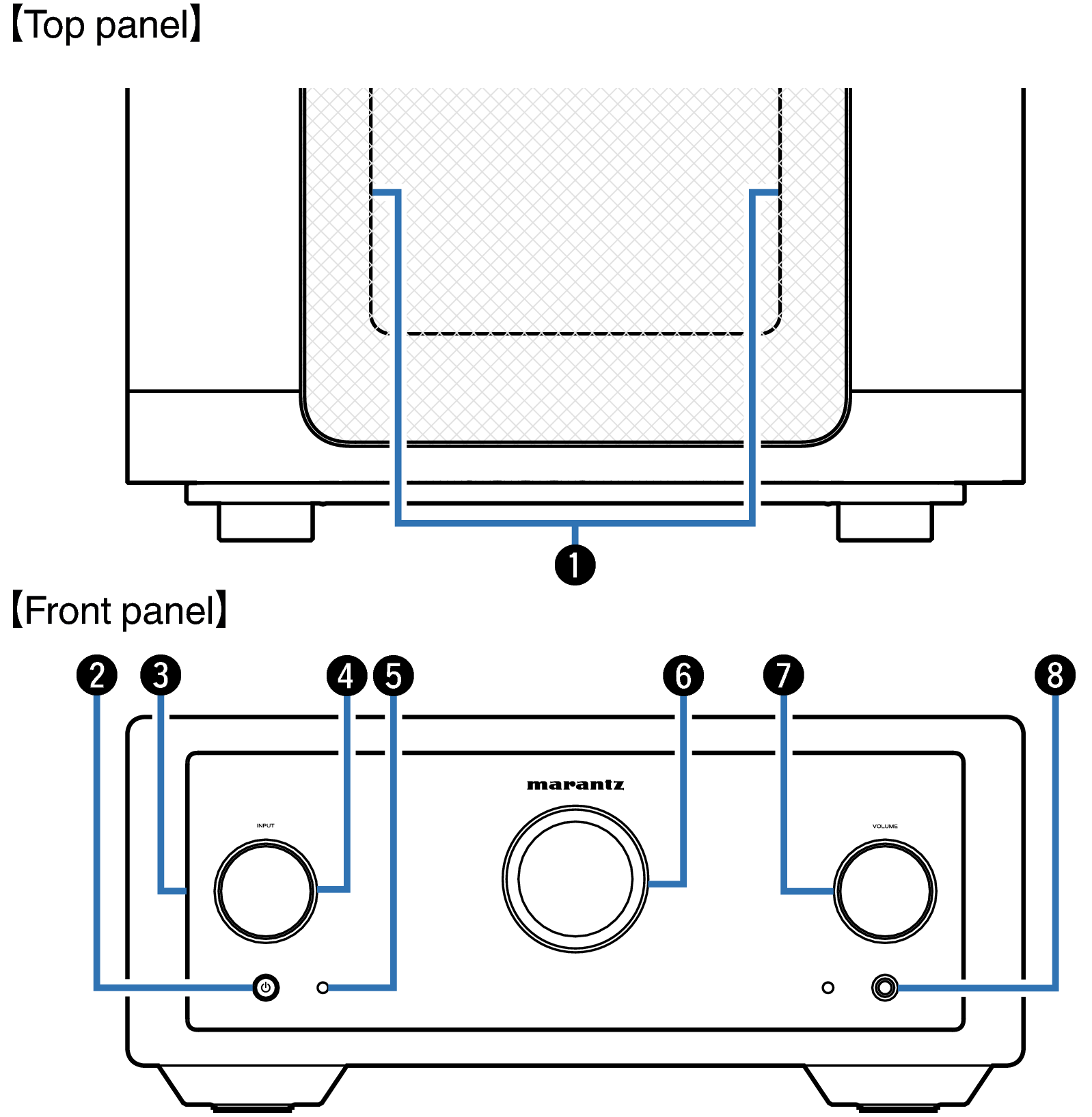

Front/Top panel
Interior illumination
Illuminates when powered on. Brightness can be changed and lighting turned off.
Power (
) button/indicator
This turns the power on/off (standby). link
This is lit as follows according to the power status:
Power on : White
Standby : Off
When the protection circuit is activated : Orange (blinking)
Front panel illumination
Illuminates when powered on. Brightness can be changed and lighting turned off.
INPUT selector knob
This selects the input source. link
Remote control sensor
This receives signals from the remote control unit. link
Display
This displays various pieces of information.
VOLUME knob
Adjusts the volume level. link
Headphones jack
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer be output from the connected speakers and from the PREAMP OUT connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using headphones.
