To use multiple MODEL 10 units, make this connection in addition to audio connection. For details on each connection feature, refer to the respective instructions.

Stereo complete bi-amp connectionlink

Connection for 5.1 Multi-channel Playbacklink

Prepare the correct number of portable audio connection cables for the number of units to be connected. Either of the following types of connection cables are adequate.

Φ3.5 Monaural mini plug Left Arrow Right Arrow Φ3.5 monaural mini plug connecting cable

Φ3.5 Stereo mini plug Left Arrow Right Arrow Φ3.5 stereo mini plug connecting cable

NOTE

Do not use connecting cables that contain resistance.

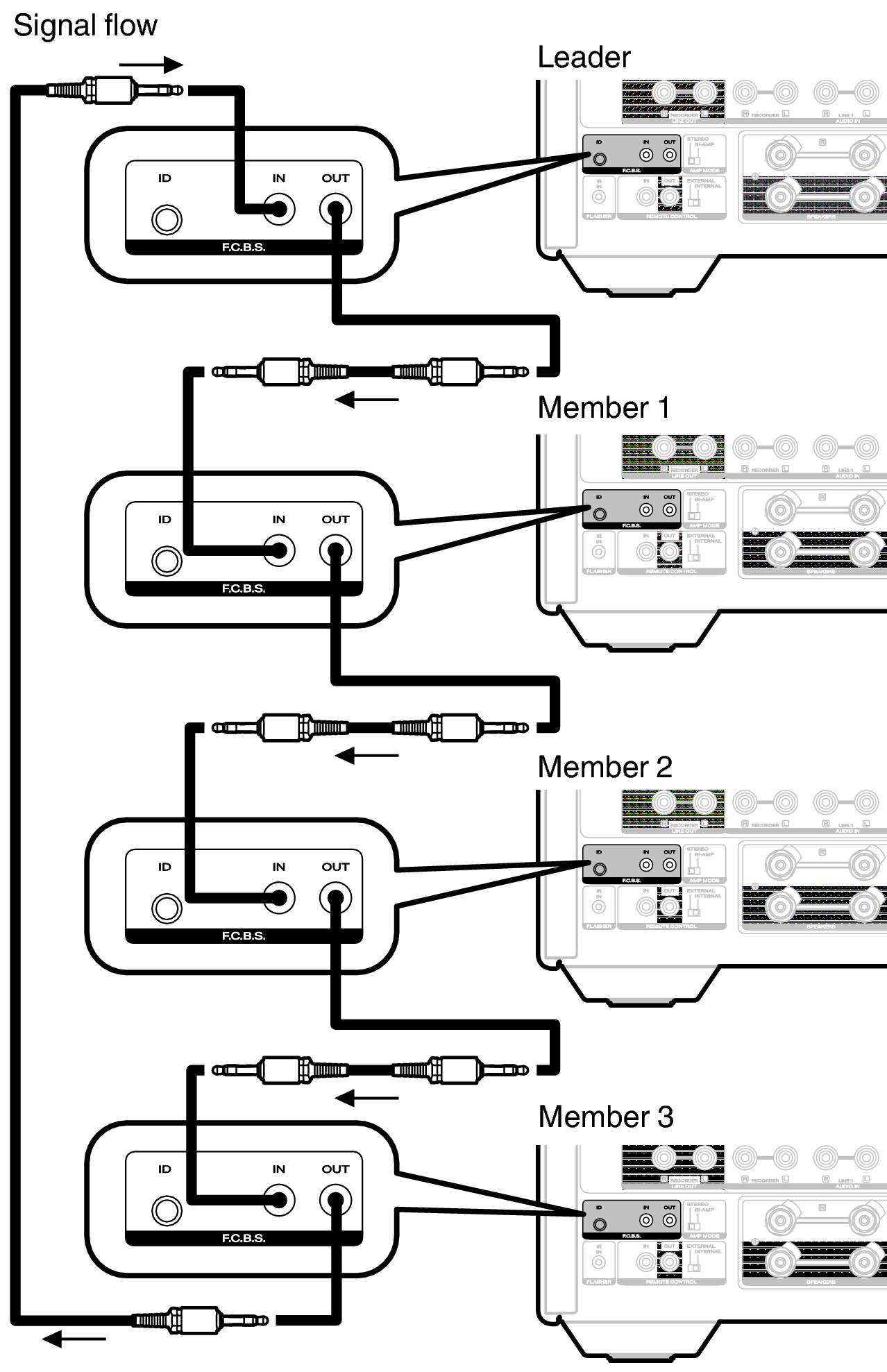

Connection example

In this example, the unit with ID set to “Leader” controls the units with the IDs set to “Member 1”, “Member 2”, or “Member 3”.

The MODEL 10 F.C.B.S. function is only valid between the same MODEL 10 models.

If you want to power on multiple amplifiers connected to the F.C.B.S., please turn on the power in the order of “Leader” - “Member 1” - “Member 2” - “Member 3”. When turning off the power, turn them off in the reverse order.

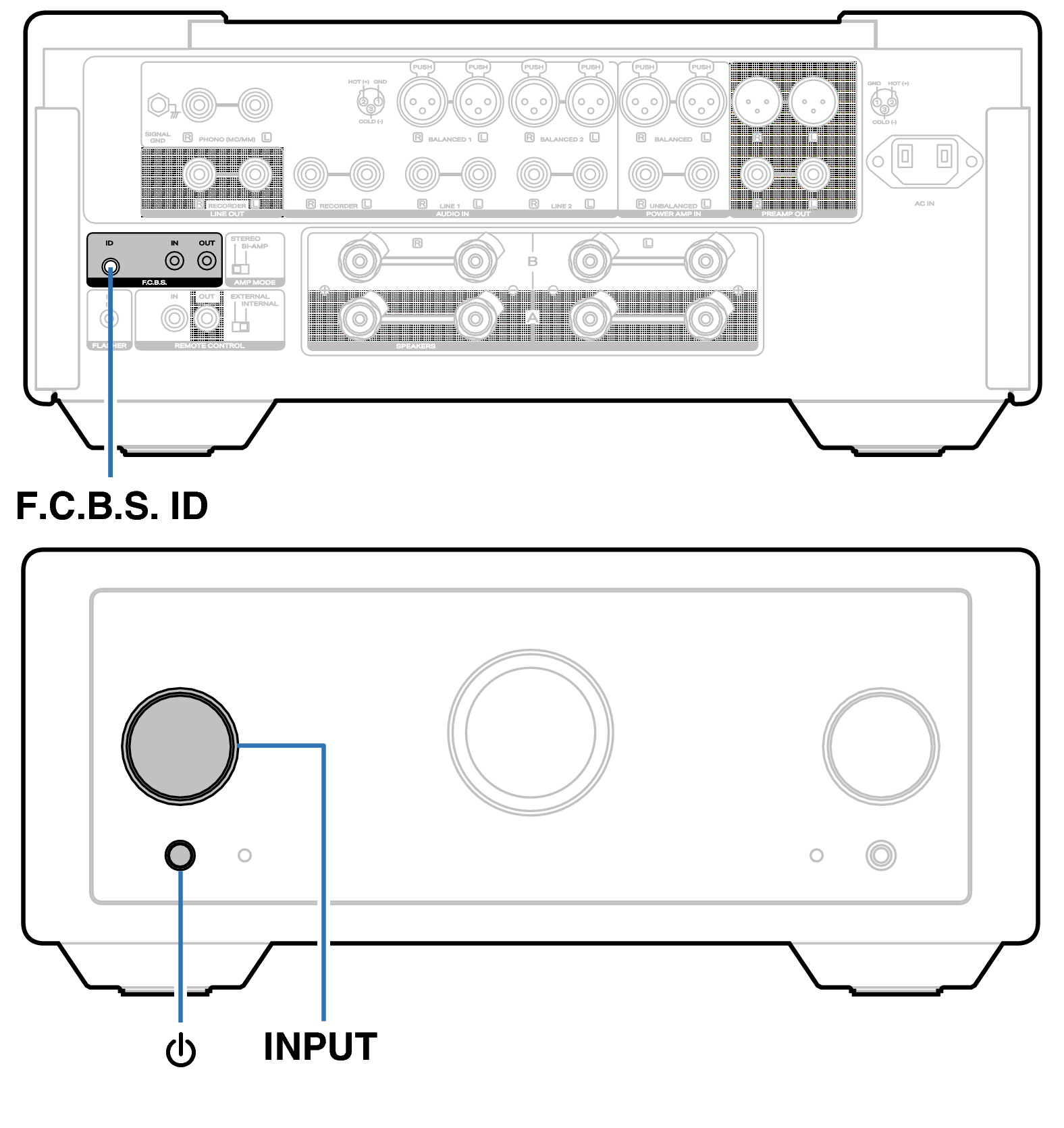

How to set ID for F.C.B.S.

While holding F.C.B.S. ID on the rear panel, press Power Button

Turn the INPUT knob on the main unit to select an ID.

The IDs need to be set to an operating unit (Leader) and a subordinate unit (Member 1 - 3) receiving the command from the leader.

Press F.C.B.S. ID on the rear panel to confirm the selected ID.

After showing the ID on the display for about 3 seconds, the unit will automatically restart.

If set to “Member 1”, “Member 2” or “Member 3”, the ID set on the normal screen is displayed.

If using this unit by itself as a stereo amplifier, set the ID to “Off”. (Default setting is “Off”.)

If the ID is set to other than “Off”, this unit cannot be used for standalone operation.
