REMOTE CONTROL connectors

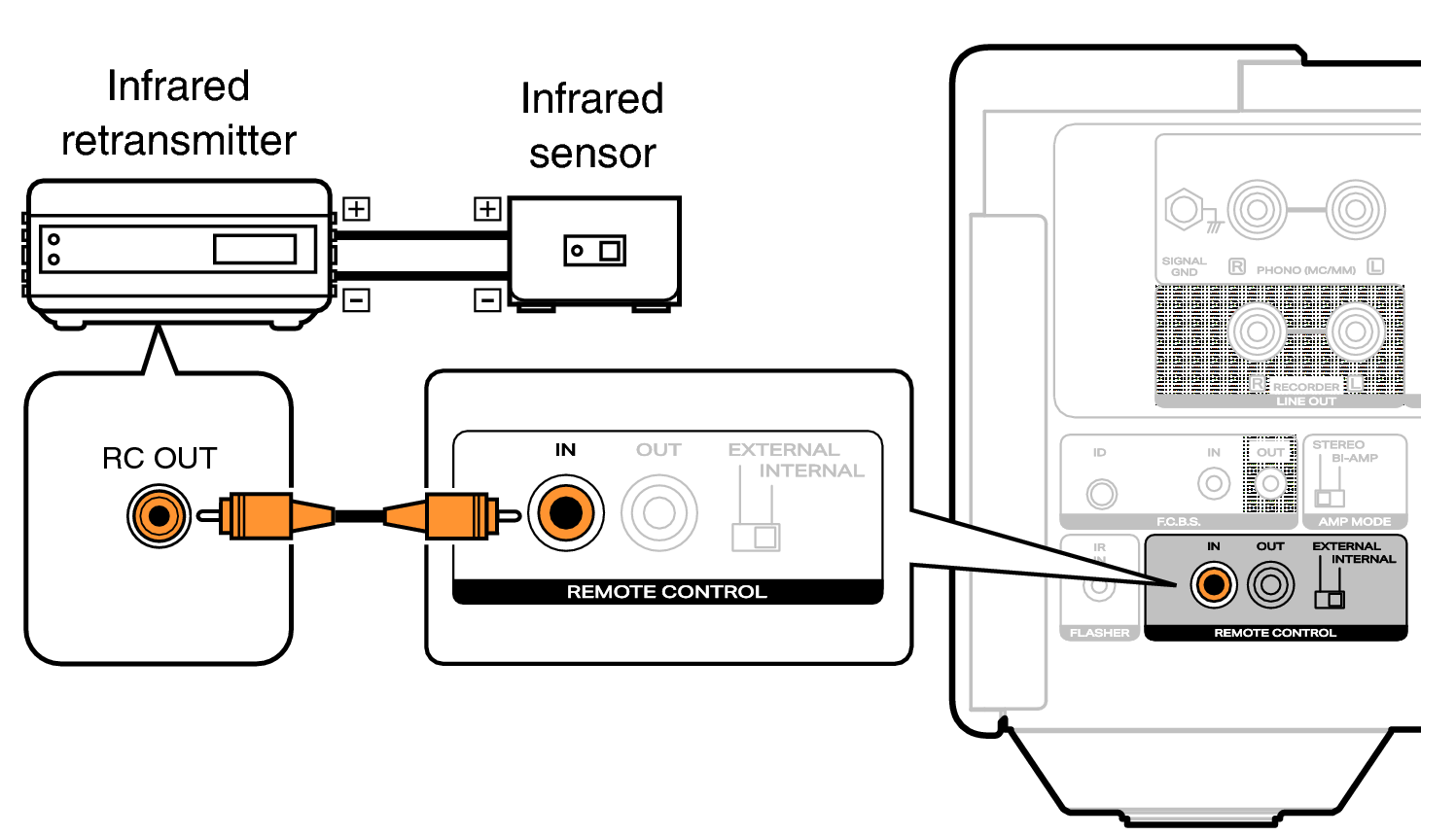

Performing operations by RC on this unit without visual contact
You can connect an external IR receiver to the REMOTE CONTROL connectors to perform operations on this unit with the included remote control unit without visual contact. This might be necessary if the unit is hidden in a cupboard or corner, so you can’t directly point with the remote control unit to the device.

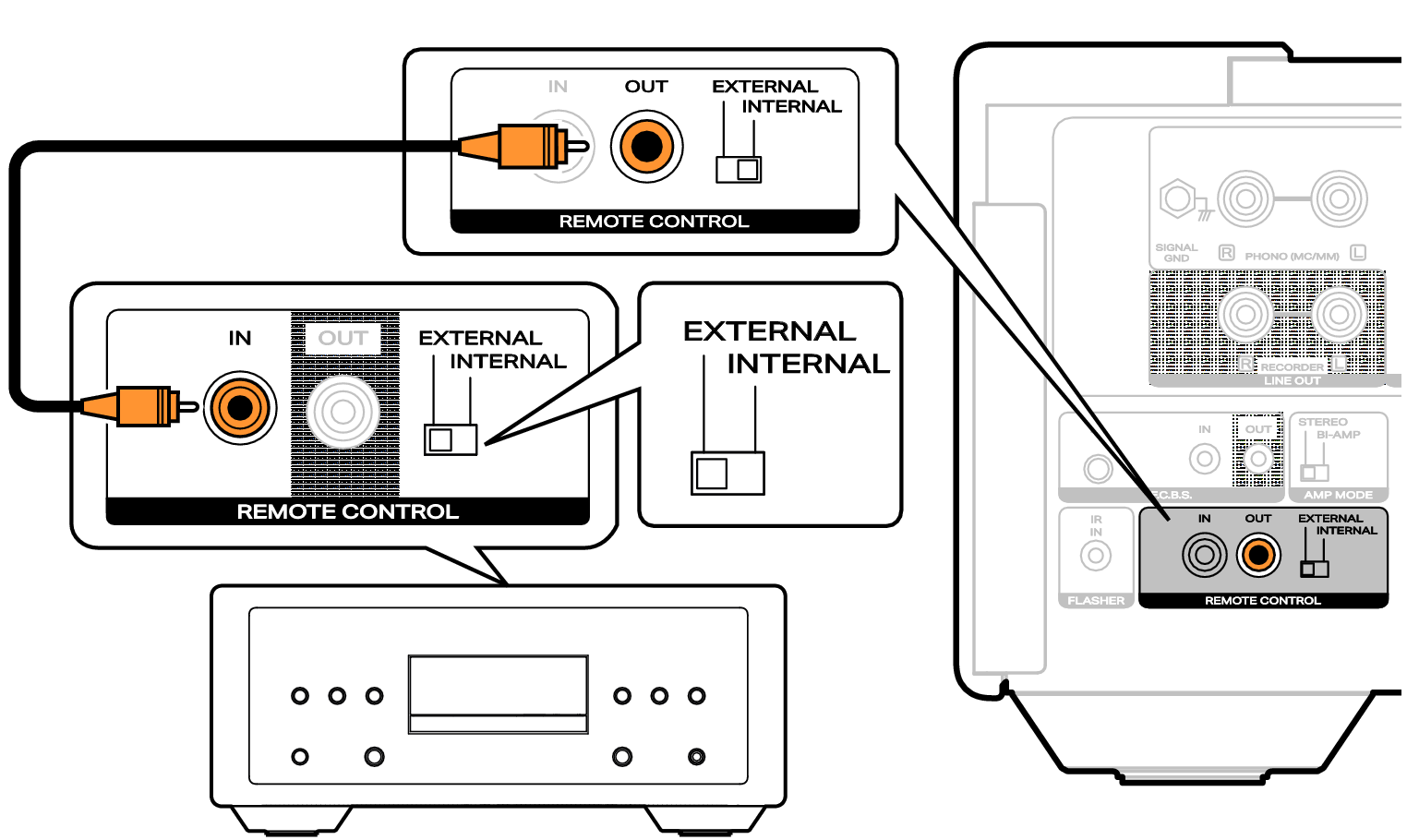

Remotely connecting Marantz LINK 10n and SACD 10
If you connect the unit to the REMOTE CONTROL IN/OUT connectors using the remote connection cable provided with the Marantz audio unit, you can turn on the power or the standby mode of the LINK 10n and SACD 10 in conjunction with the operation of the unit.
Set the EXTERNAL/INTERNAL switch on the rear panel of this unit and the connected device as follows.
Turn this unit’s EXTERNAL/INTERNAL switch to “INTERNAL”.
Turn the EXTERNAL/INTERNAL switch of the connected device to “EXTERNAL”.
To operate the unit, point the remote control at the remote sensor of this unit.
To use this unit by itself without connecting a Marantz audio device, turn the switch to “INTERNAL”.
