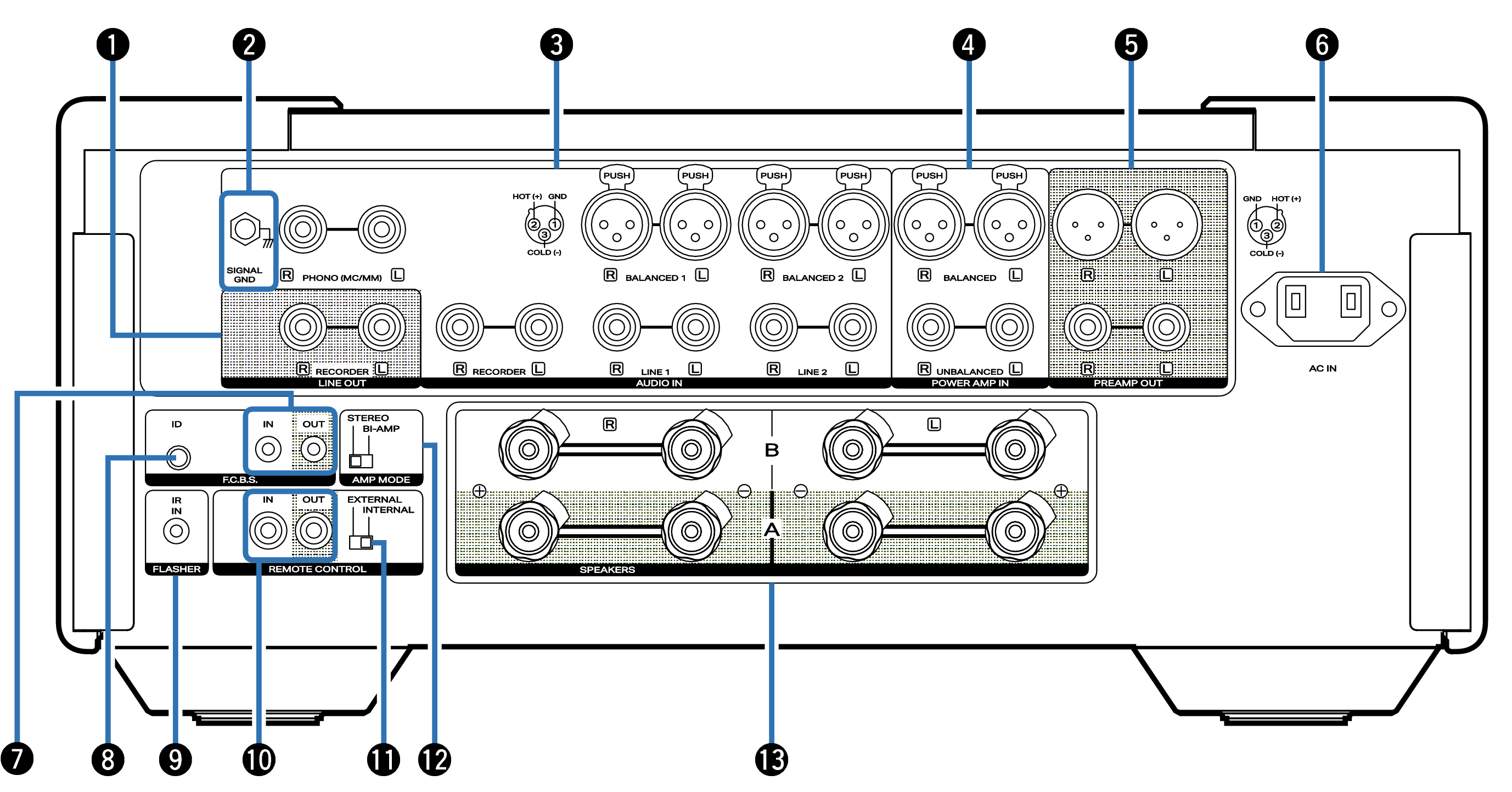

Rear panel
LINE OUT connectors (RECORDER)
Used to connect the input connector of a recorder. link
SIGNAL GND terminal
Used to connect a turntable. link
Analog audio input connectors (AUDIO IN)
Used to connect devices equipped with analog audio output connectors.
Power amplifier connectors (POWER AMP IN)
Used to connect a pre-amplifier when this unit is used as a power amplifier. link
PREAMP OUT connectors
Use this to add such equipment as a power amplifier. link
AC inlet (AC IN)
Used to connect the power cord. link
F.C.B.S. connectors
Used to connect a high quality playback system using two or more of these units. link
F.C.B.S. ID button
Used to set the ID for F.C.B.S.. link
FLASHER IR IN jack
Used to connect a control box, etc. link
Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the remote control function. link
EXTERNAL/INTERNAL switch
Turn this switch to "INTERNAL", this unit receives the remote control signal and the Marantz audio device connected to this unit using the remote control connection operates by receiving the remote control signal from this unit. link
AMP MODE switch
Used to switch the amplifier mode (STEREO/BI-AMP). link
Speaker terminals (SPEAKERS)
Used to connect speakers. link
