Stereo complete bi-amp connection

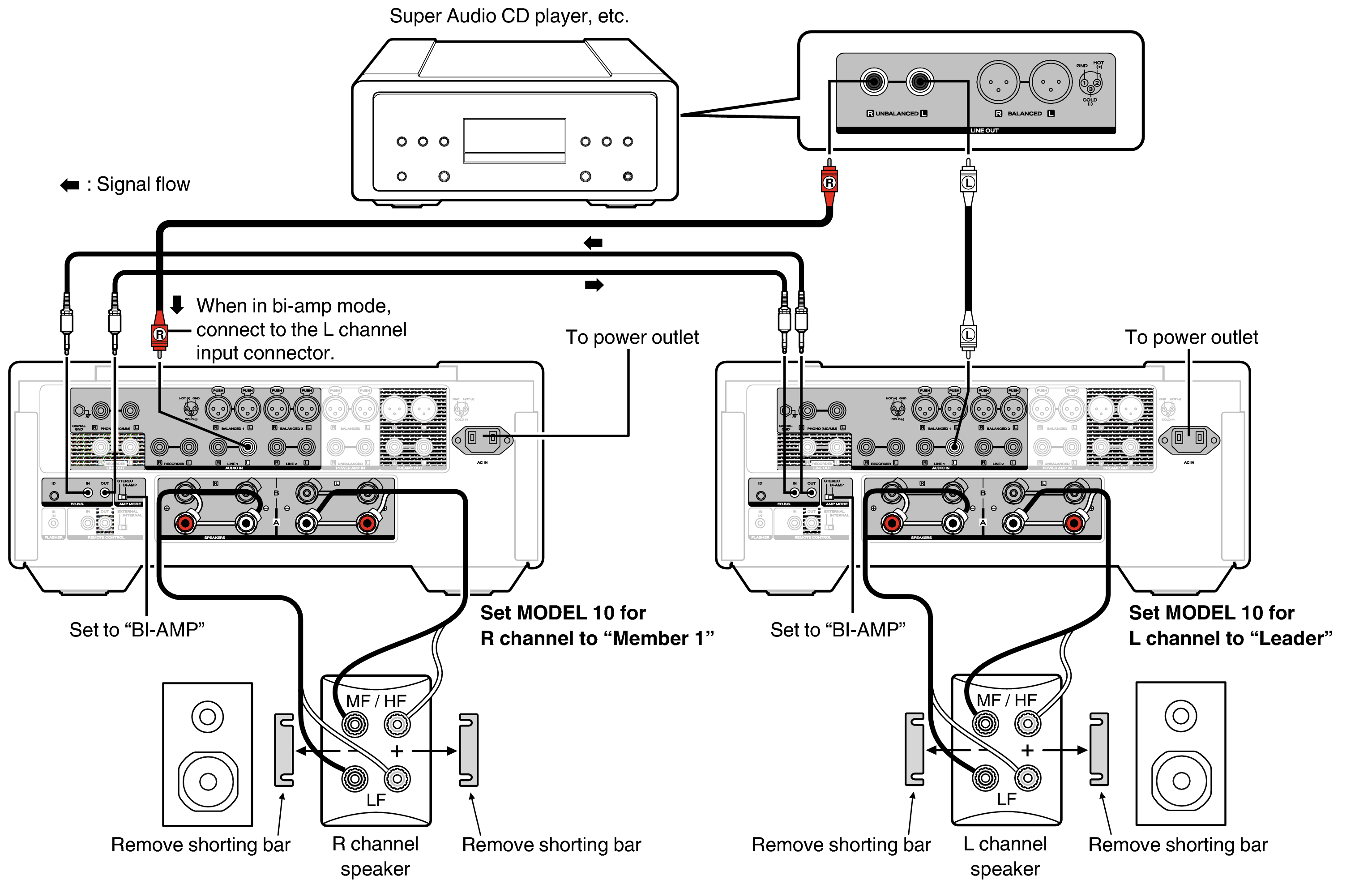

This mode enables the two amplifiers connected to this unit to function as one monaural amplifier. To use this mode, two F.C.B.S. connected MODEL 10 units are required.
To switch the mode, use the AMP MODE switch on the rear panel while the power is off.
If this unit is set to the bi-amp mode, “BI-AMP” appears on the display.
In bi-amp mode, connect to the left channel input connector.
The right channel input is disabled.
The same signals are output from the left and right speaker terminals.
Be sure to turn the power off before operating the AMP MODE switch. Settings can be configured when the power is turned on.
When in bi-amp mode, the R channel input connectors cannot be used.
When in bi-amp mode, the signals input into the L channel are output from both channels. Therefore, the same signals are output from the L channel and R channel in LINE OUT (RECORDER), PREAMP OUT, headphones jack.
Speaker systems connected using complete bi-amp connections must support bi-amp connections. Before connecting your speakers, check in the instruction manual that came with the speakers or contact the manufacturer to confirm whether they support bi-amp connection.
