Remote control unit
The remote control provided with this unit can control a Marantz SACD player and streaming preamplifier.

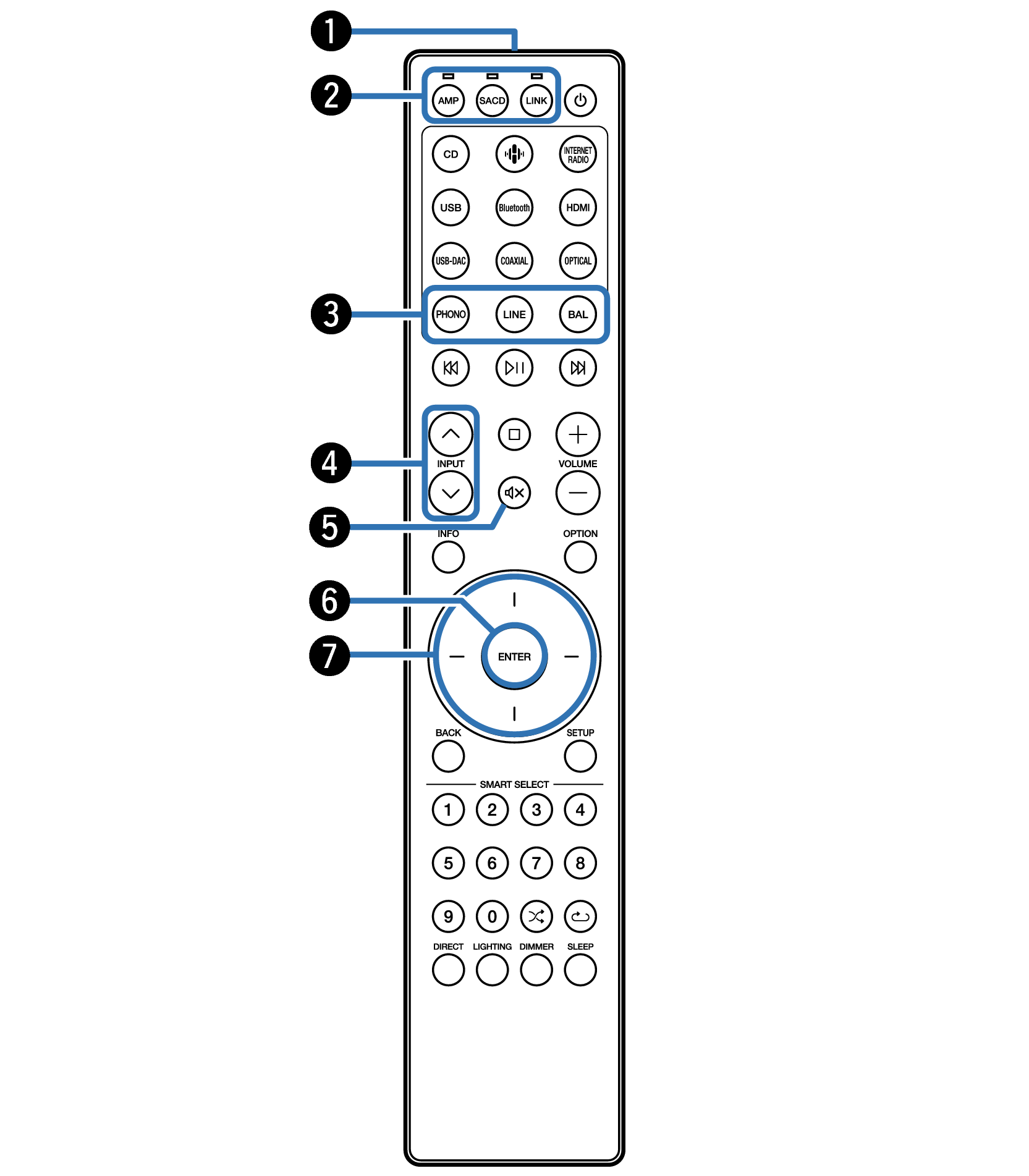

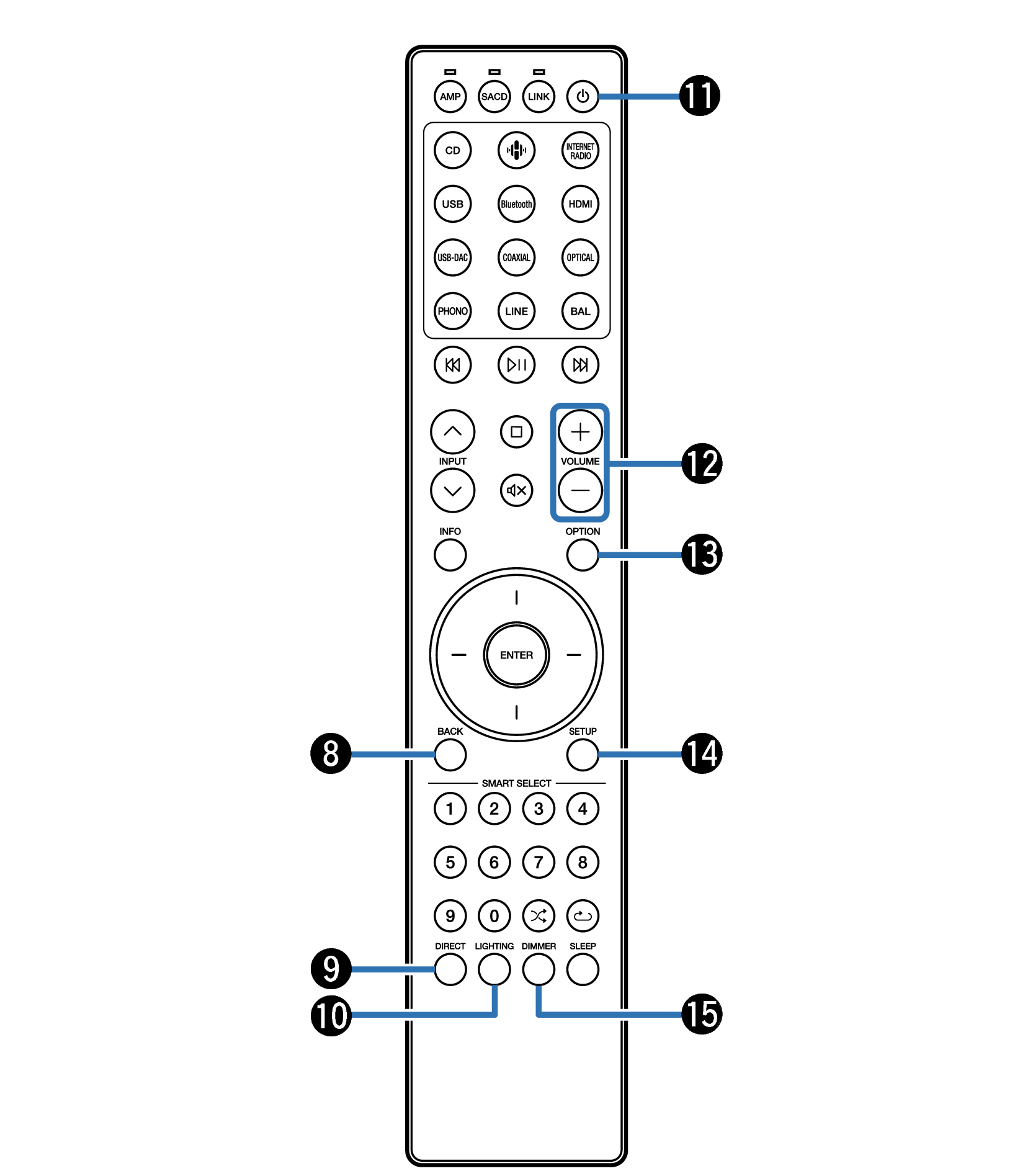

Operating this unit
To operate this unit, press AMP button to switch the remote control operating mode to this unit.
Remote control signal transmitter
This transmits signals from the remote control unit. link
Remote mode select buttons/indicators (AMP/SACD/LINK)
These switch the remote control operating mode (AMP/SACD/LINK).
The indicator will light up according to the device being operated.
Input source select buttons (PHONO/LINE/BAL)
This selects the input source. link
INPUT buttons (
)
This selects the input source. link
Mute button (
)
This mutes the output audio. link
ENTER button
This determines the selection.
Cursor buttons
These select items.
BACK button
Returns to the previous item.
DIRECT button
This turns source direct mode on/off. link
LIGHTING button
This turns the front panel illumination, interior illumination and display on/off. link
Power (
) button
This turns the power on/off (standby). link
VOLUME buttons (
)
These adjust the volume level. link
OPTION button
This displays the option menu on the display.
An option menu is not displayed when the input sources are “Power Amp Balanced” and “Power Amp Unbalanced”.
SETUP button
The setting menu is displayed on the display. link
DIMMER button
Adjust the display brightness of this unit. link

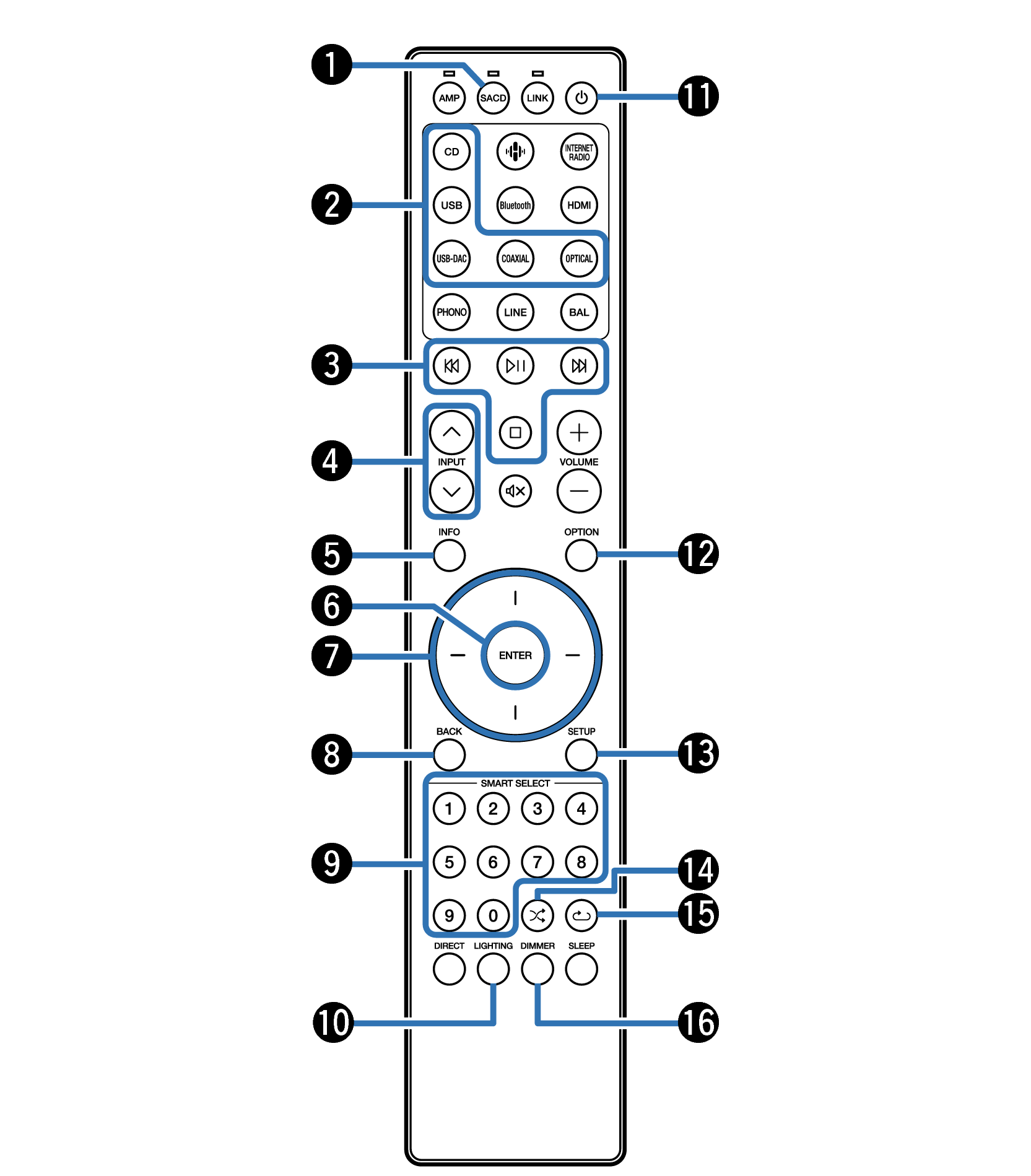

SACD player operations
A Marantz SACD player can be operated.
To operate SACD player, press SACD button to switch the remote control to the SACD player operation mode.
Remote mode select button (SACD)
Input source select buttons
System buttons
INPUT buttons ( )
Information button (INFO)
ENTER button
Cursor buttons
BACK button
Number buttons (0 – 9)
LIGHTING button
Power ( ) button
OPTION button
SETUP button
Random button (
)
Repeat button (
)
DIMMER button
The remote control may not operate some products.

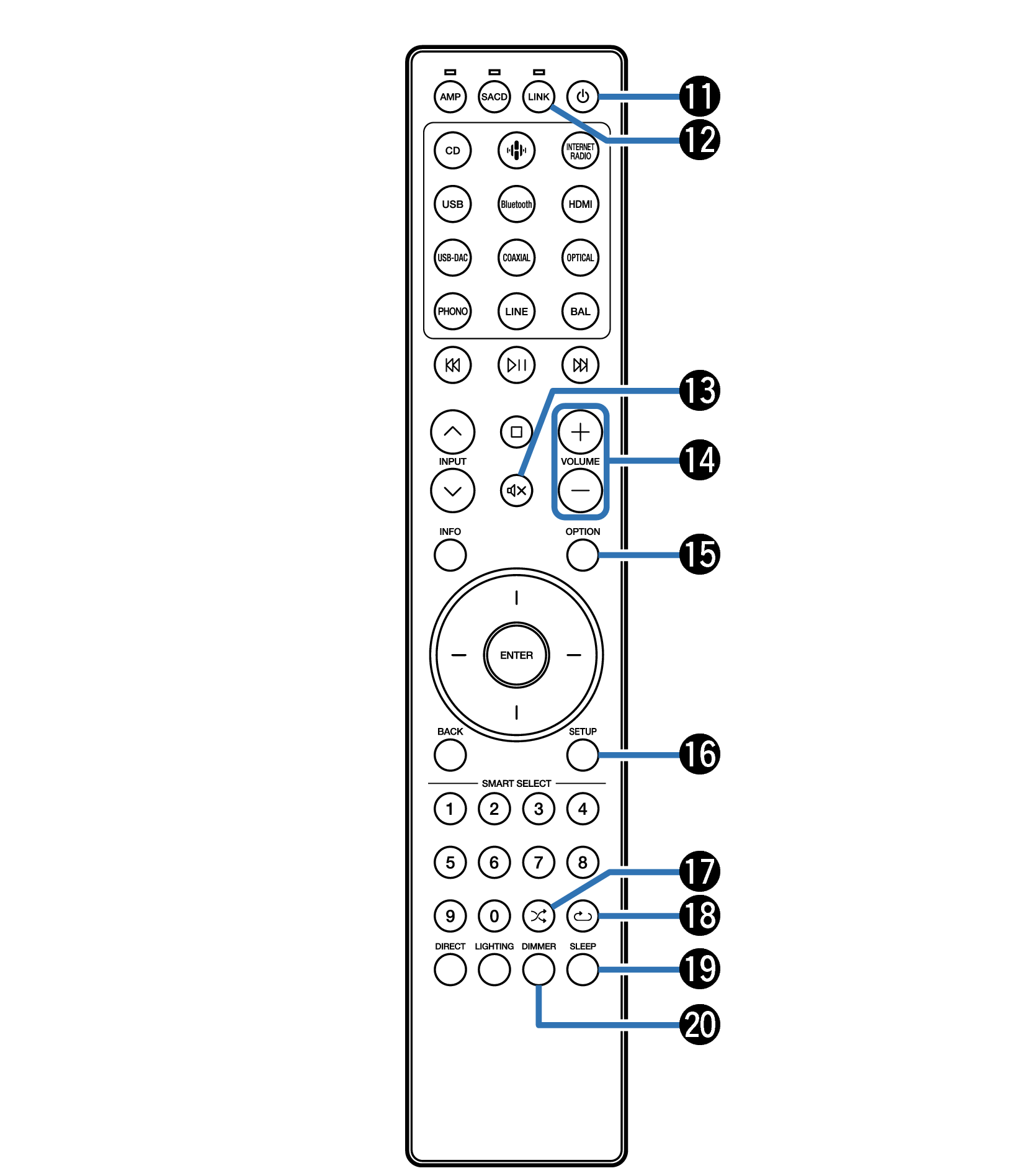

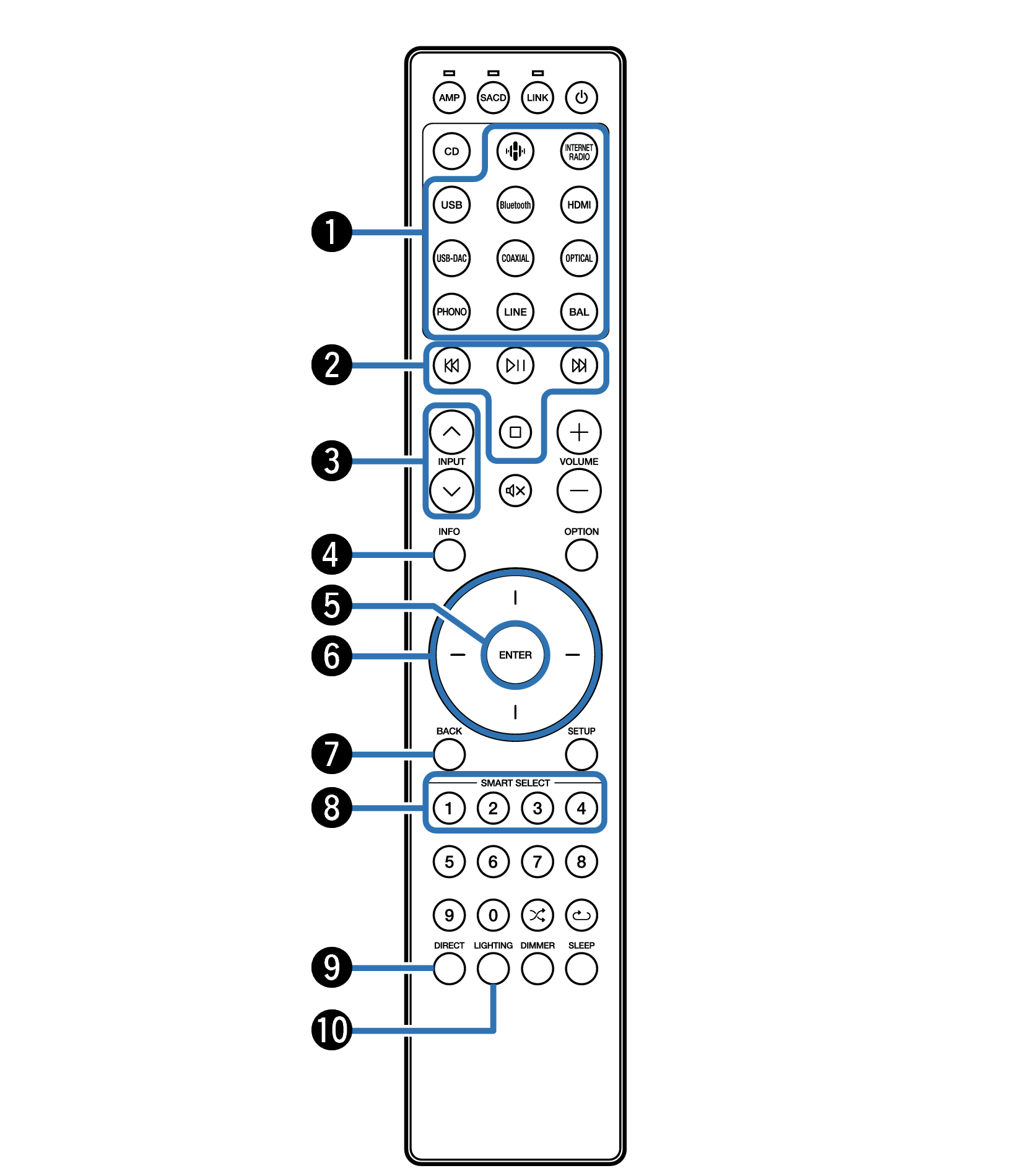

Streaming preamplifier operations
A Marantz streaming preamplifier can be operated.
To operate streaming preamplifier, press LINK button to switch the remote control to the streaming preamplifier operation mode.
Input source select buttons
System buttons
INPUT buttons ( )
Information button (INFO)
ENTER button
Cursor buttons
BACK button
SMART SELECT 1 - 4 buttons
DIRECT button
LIGHTING button
Power ( ) button
Remote mode select button (LINK)
Mute button ( )
VOLUME buttons ( )
OPTION button
SETUP button
Random button ( )
Repeat button ( )
SLEEP button
DIMMER button
The remote control may not operate some products.
