Overview

Inserting the batteries

Operating range of the remote control unit

Part names and functions

Front/Top panel

Remote control unit

Connections

Connecting speakers

Speaker A/B connection

Bi-wiring connection

Connecting a playback device

Connecting a recording device

Connecting a pre-amplifier or power amplifier

Connecting multiple MODEL 10 units (F.C.B.S. connection)

Preparation for F.C.B.S. connection

Stereo complete bi-amp connection

Connection for 5.1 Multi-channel Playback

Connecting an external control device

FLASHER IR IN jack

REMOTE CONTROL connectors

Connecting the power cord

Playback

Turning the power on

Switching the power to standby

Selecting the input source

Adjusting the volume

Turning off the sound temporarily (Muting)

Adjusting the tone and balance

Playback in source direct mode

Switching the display’s brightness

Turning the front panel illumination, interior illumination and display on/off

Using this unit as a power amplifier

Settings

Setting remote control codes

Setting remote control codes for the remote control

Setting remote control codes for the main unit

Disabling SACD player/streaming preamplifier operating mode on remote control

Disabling SACD player operating mode

Disabling streaming preamplifier operating mode

Setting the device to be operated by the volume buttons on the remote control

Setting the device to be operated by the volume buttons in SACD player operating mode

Setting the device to be operated by the volume buttons in streaming preamplifier operating mode

Tips

Troubleshooting

Power does not turn on / Power is turned off

Operations cannot be performed through the remote control unit

Display on this unit shows nothing

No sound comes out

Desired sound does not come out

Sound is interrupted or noise occurs

Appendix

Explanation of terms

Dimensions / Weight

Dimensions / Weight

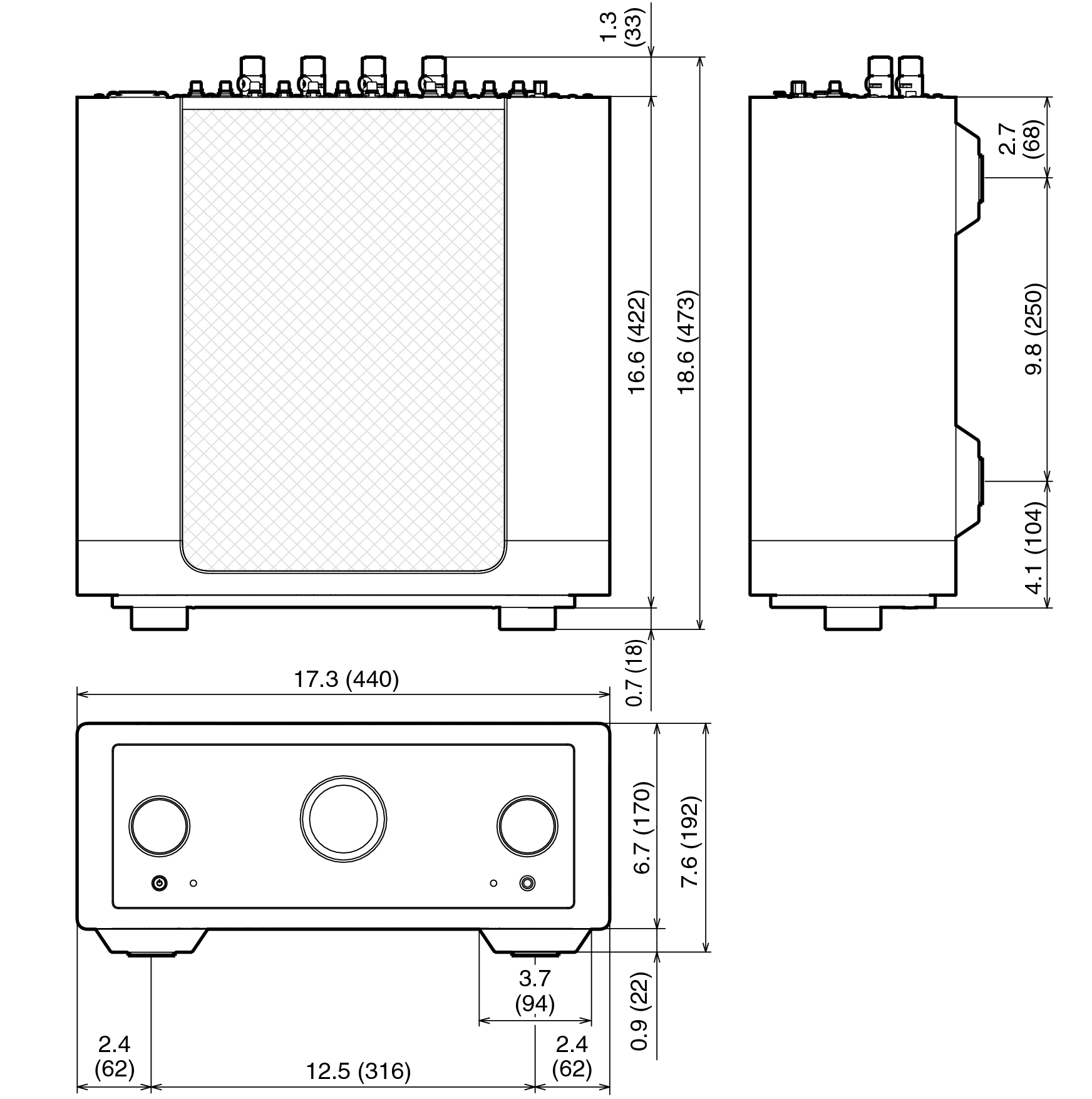

Dimensions (Unit : in. (mm))

Size MODEL10U

Weight : 74 lbs 5 oz (33.7 kg)
