Connecting the power cord

After completing all the connections, insert the power plug into the power outlet.

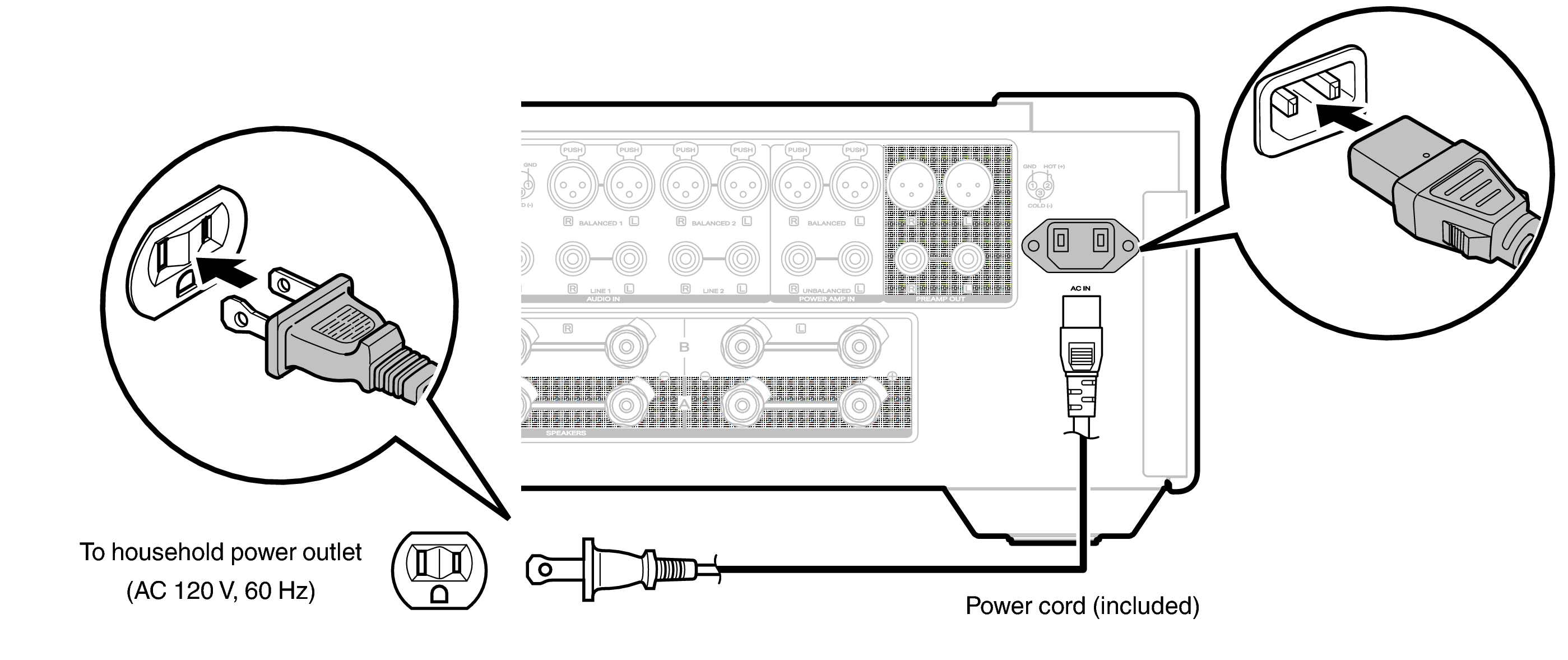

Conne AC MODEL10U
