Disabling SACD player/streaming preamplifier operating mode on remote control

If you do not want to use this unit in combination with SACD 10 or LINK 10n, you can disable the remote control operating mode of the device that you are not using. By default, all remote control operating modes are enabled.

When remote control operating mode is enabled, be sure to check the operation of your device.

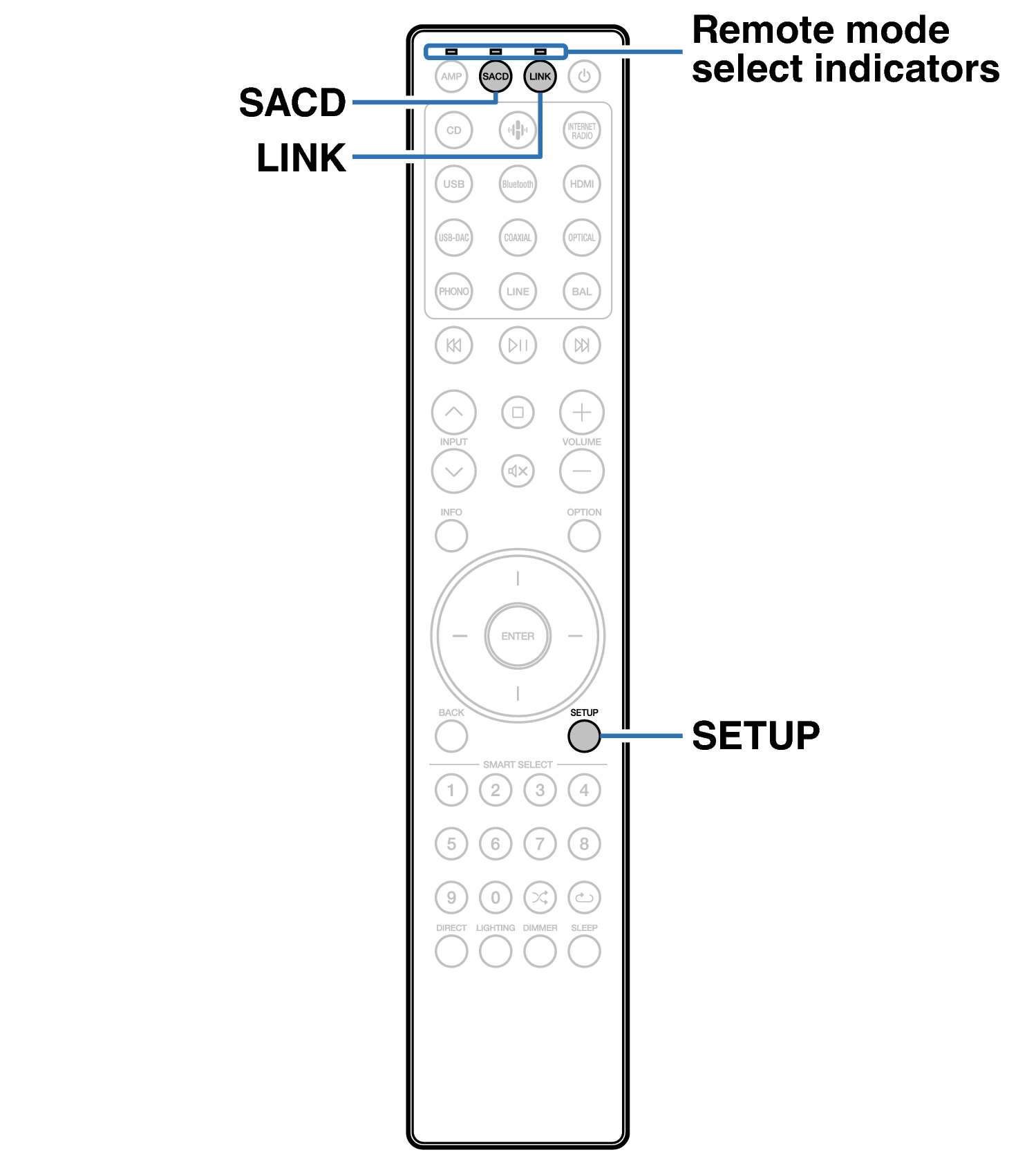

Remote control unit illustration

Ope Remote mode AMP RC004PMND
