Operating range of the remote control unit

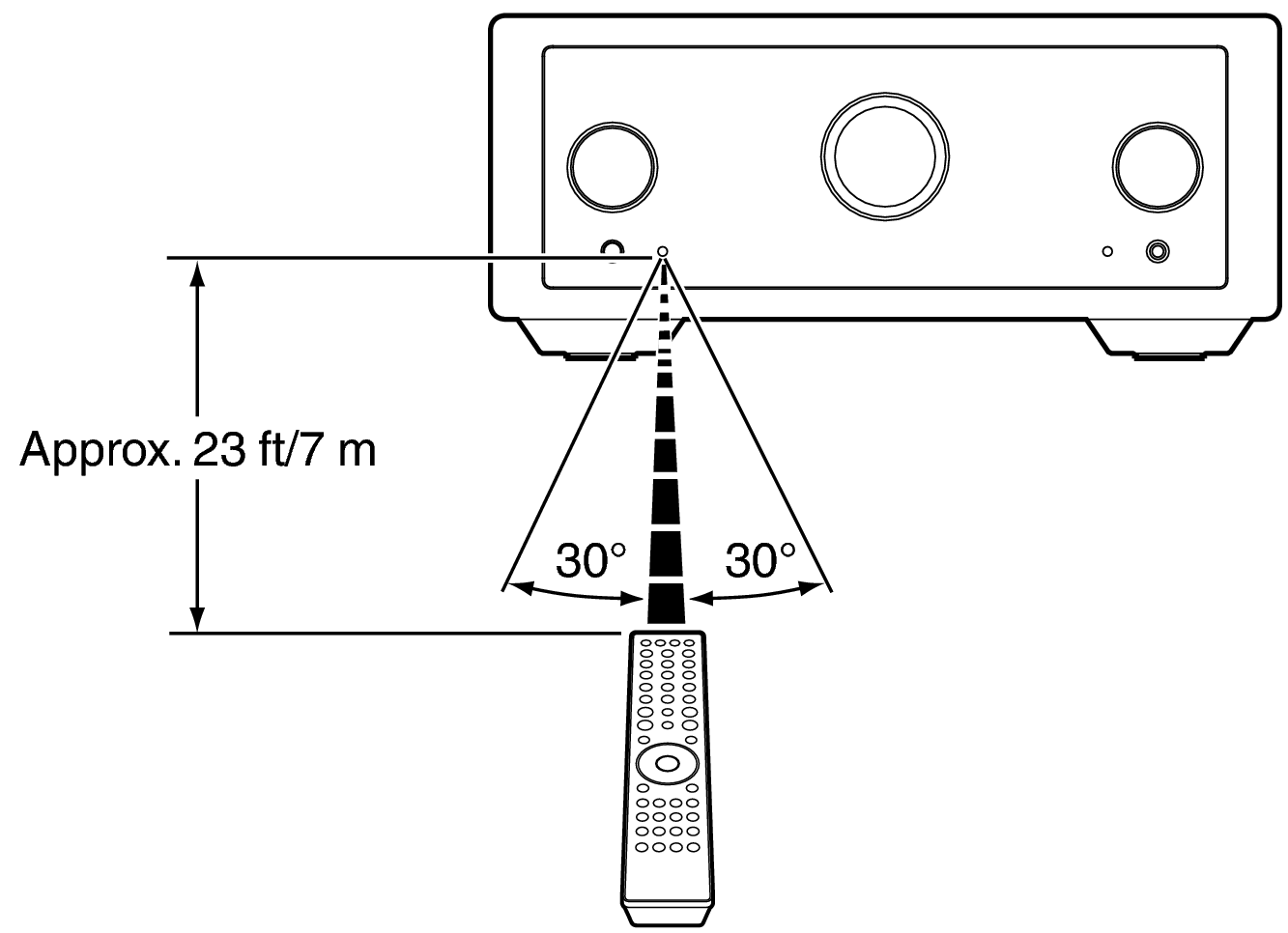

Point the remote control unit at the remote sensor when operating it.

Use RC MODEL10U
