Playback

Connecting 7.1-channel speakers

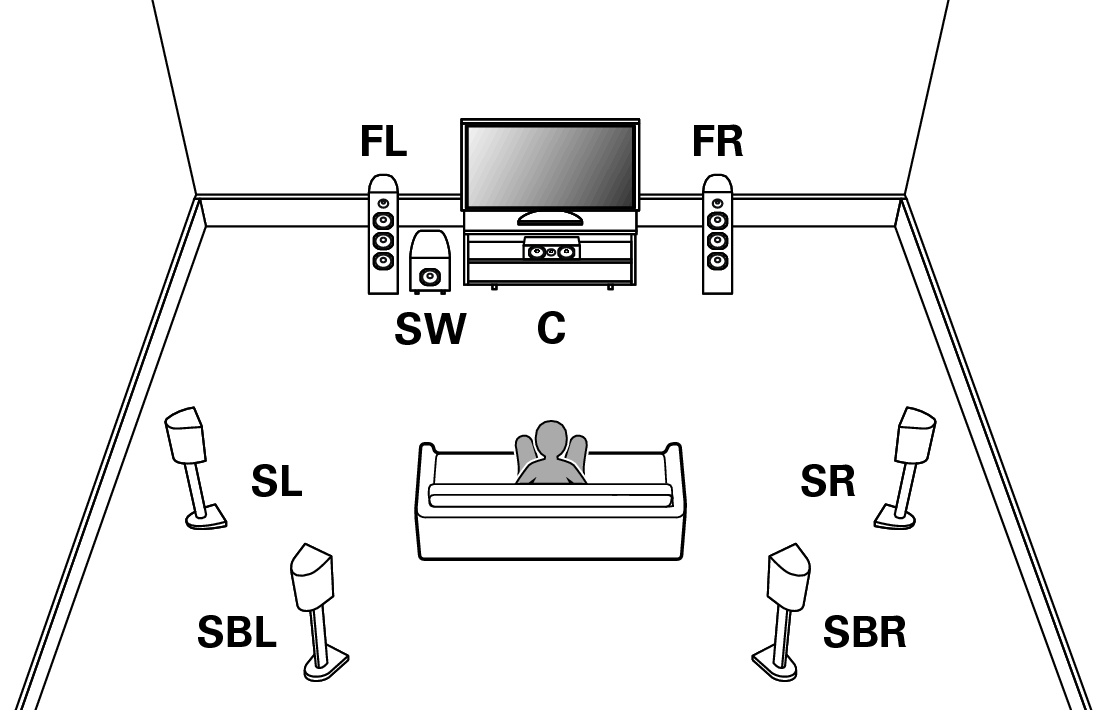

Example layout when using surround back speakers

This 7.1-channel surround system is basic 7.1-channel system.
(Adding surround back speakers to basic 5.1-channel system)

Pict SP Layout 7.1_SB1

For each speaker connection, refer to the following.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Subwoofer: Yes

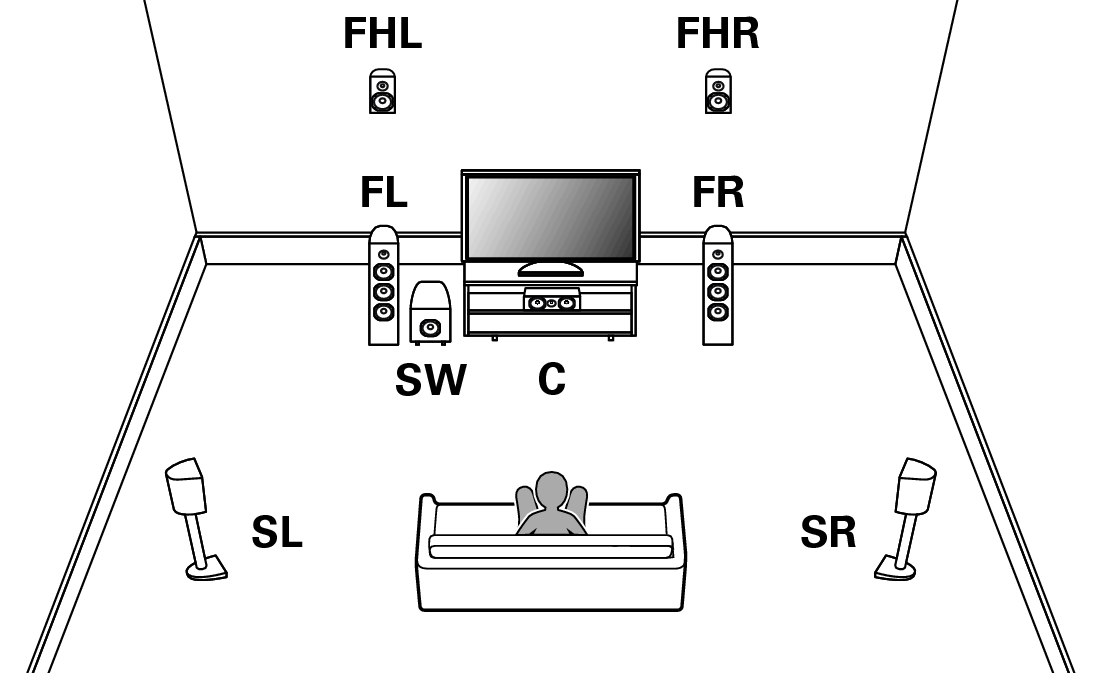

Example layout when using height speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.

Pict SP Layout 7.1 FH1

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height: Front Height
Subwoofer: Yes

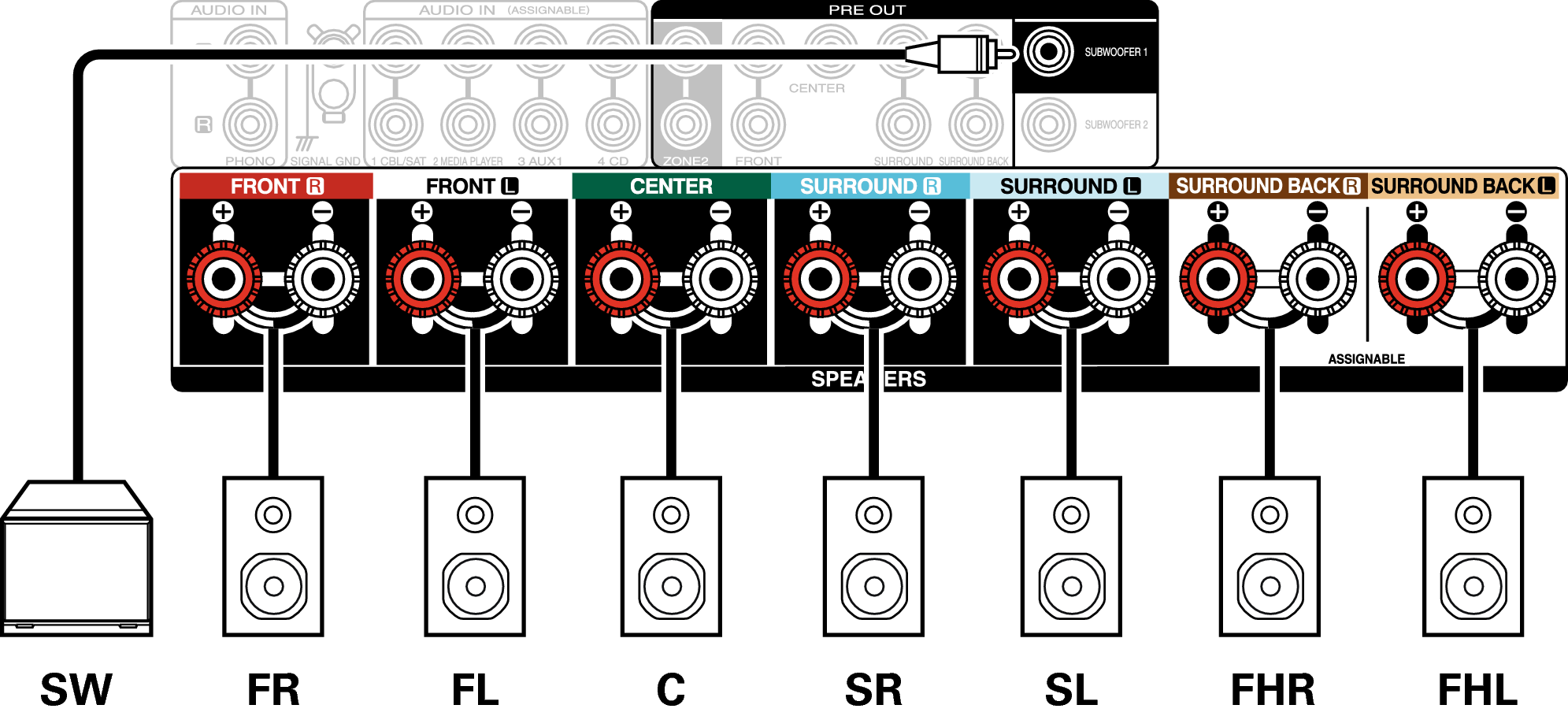

Conne SP 7.1 FH C60

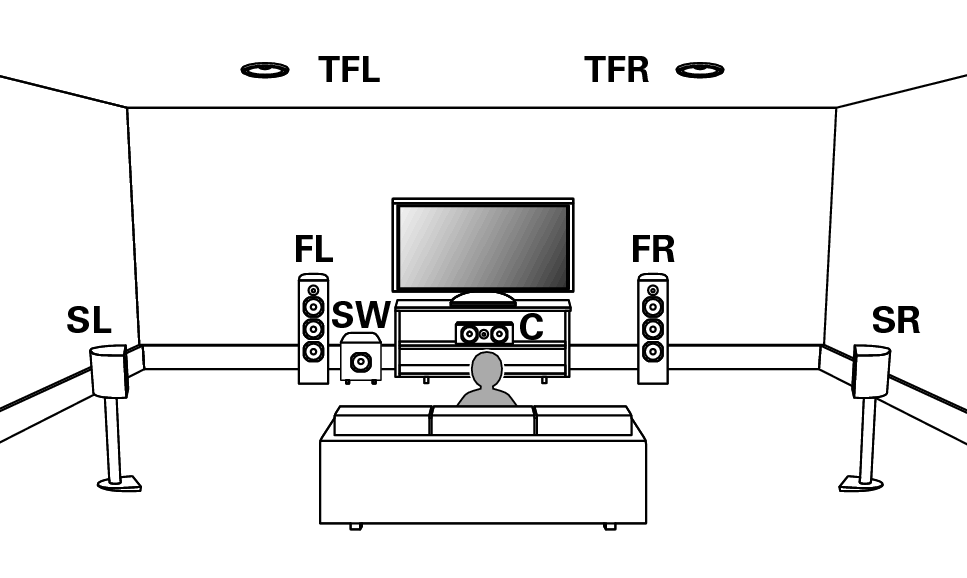

Example layout when using top front speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with top front speakers.

Pict SP Layout 7.1 TF

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height: Top Front
Subwoofer: Yes
Conne SP 7.1 TF C60

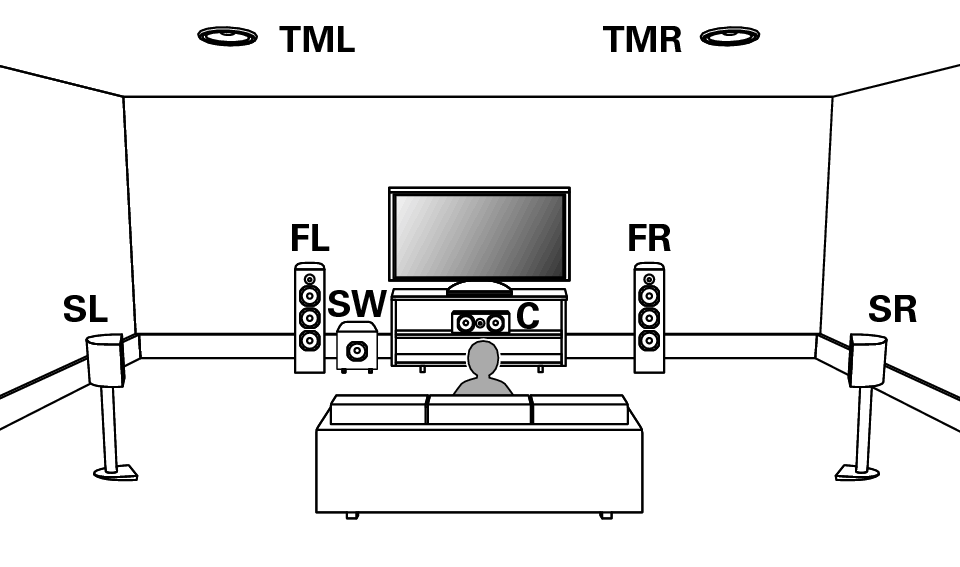

Example layout when using top middle speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with top middle speakers.

Pict SP Layout 7.1 TM

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height: Top Middle
Subwoofer: Yes

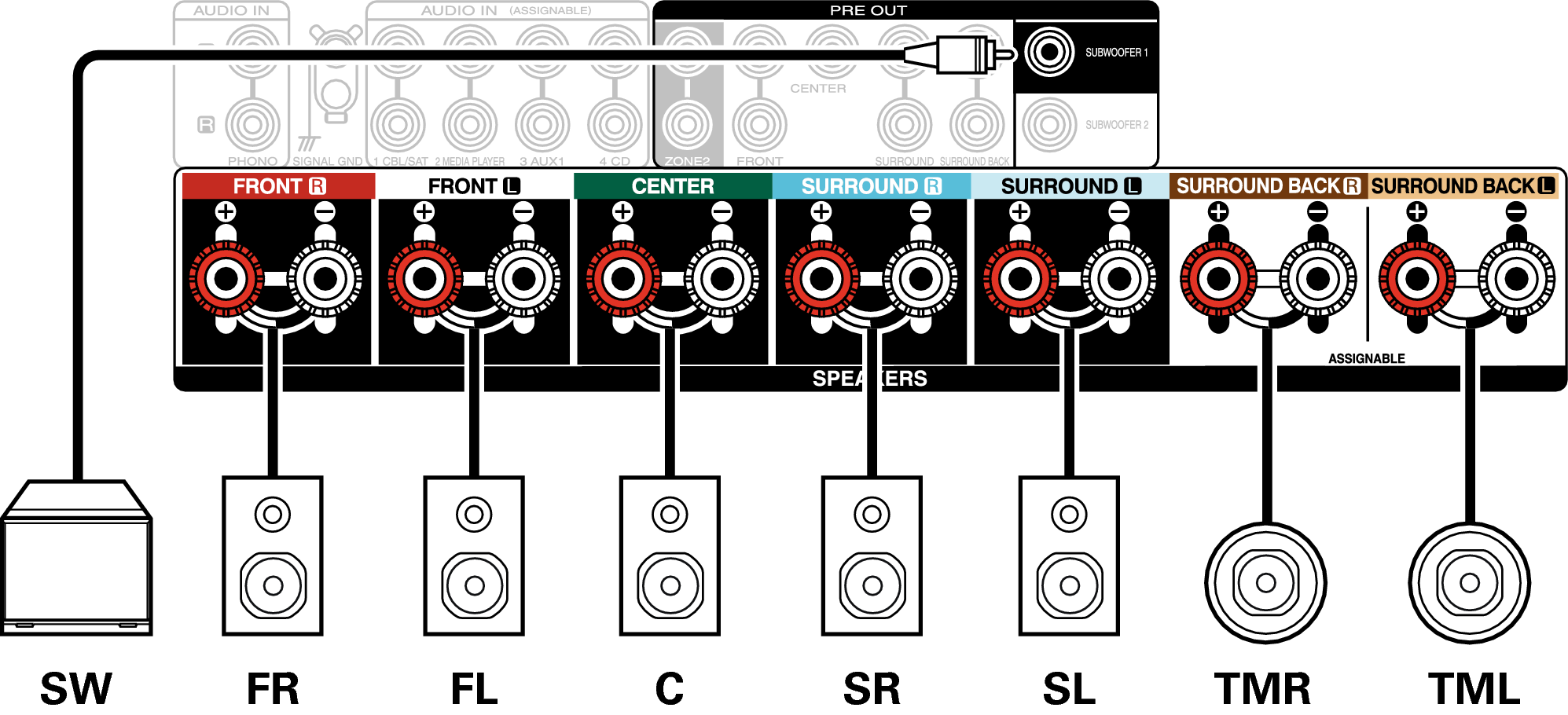

Conne SP 7.1 TM C60

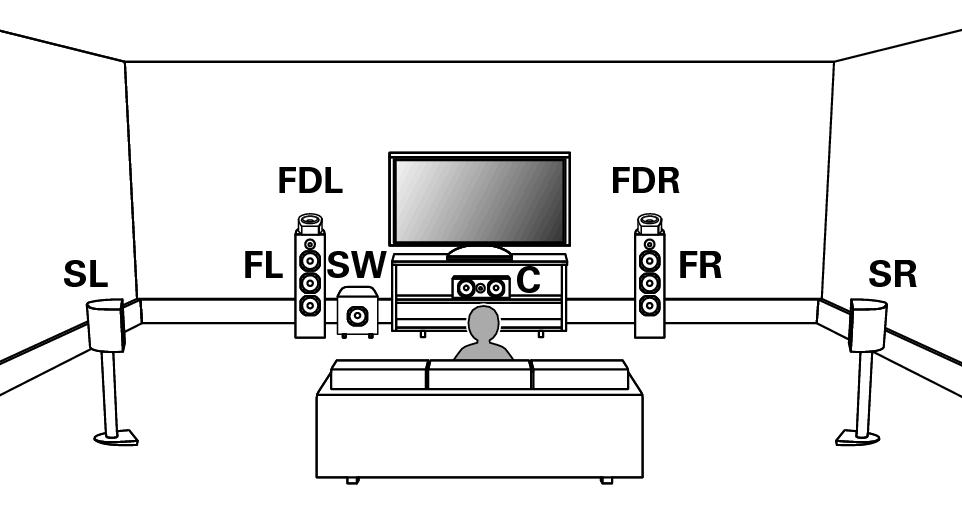

Example layout when using front Dolby Atmos Enabled speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby Atmos Enabled speakers.

Pict SP Layout 7.1 FD

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height: Front Dolby
Subwoofer: Yes

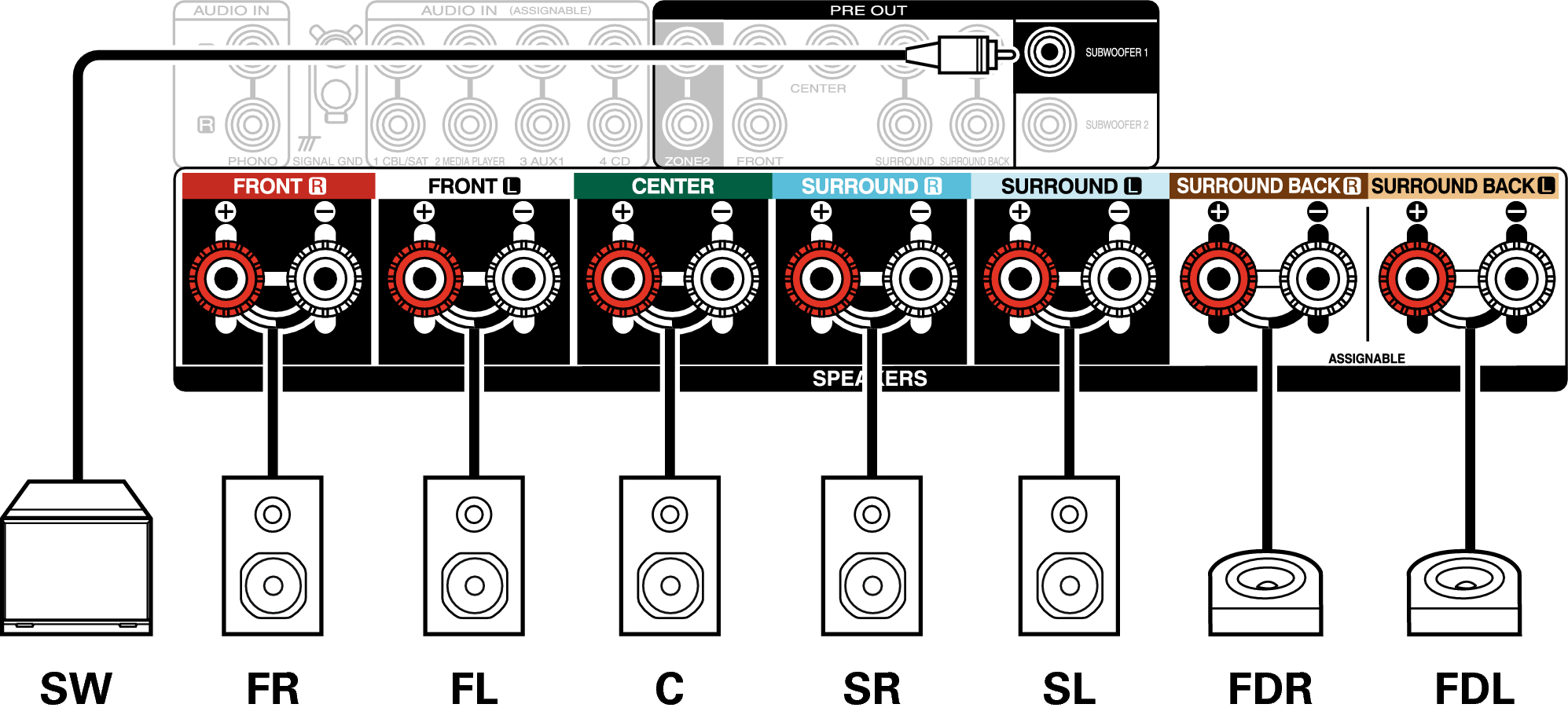

Conne SP 7.1 FD C60

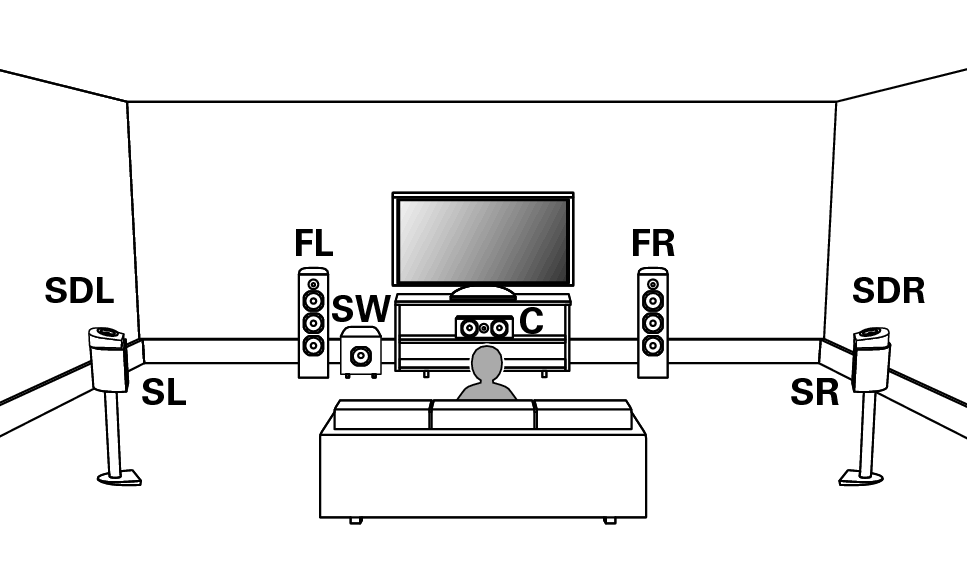

Example layout when using surround Dolby Atmos Enabled speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround Dolby Atmos Enabled speakers.

Pict SP Layout 7.1 SD

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height: Surround Dolby
Subwoofer: Yes
Conne SP 7.1 SD C60
