Connecting 5.1-channel speakers

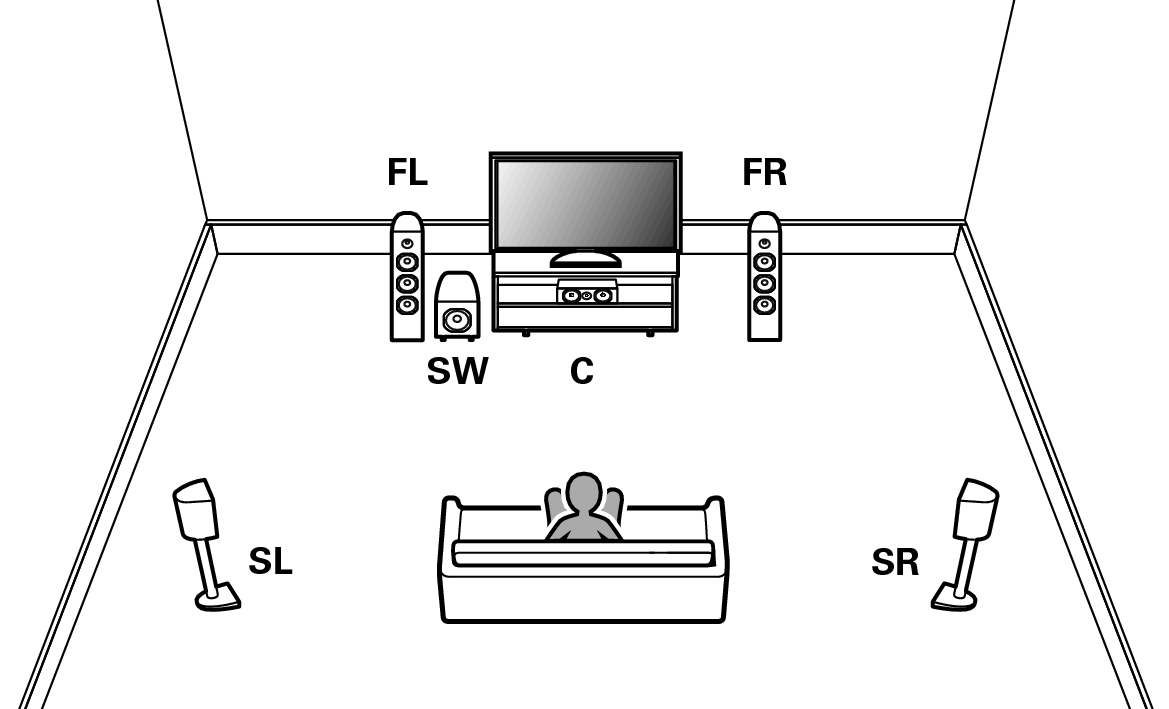

This serves as a basic 5.1-channel surround system.

Pict AmpAssign 5.1

For each speaker connection, refer to Connecting speakers to the speaker terminalslink or Connecting an external power amplifierlink.

Set Speaker Layout in the menu as follows. link

Center: Yes

Surround: Yes

Subwoofer: Yes
