Web control function

You can control and configure this unit from a web control screen on a web browser.

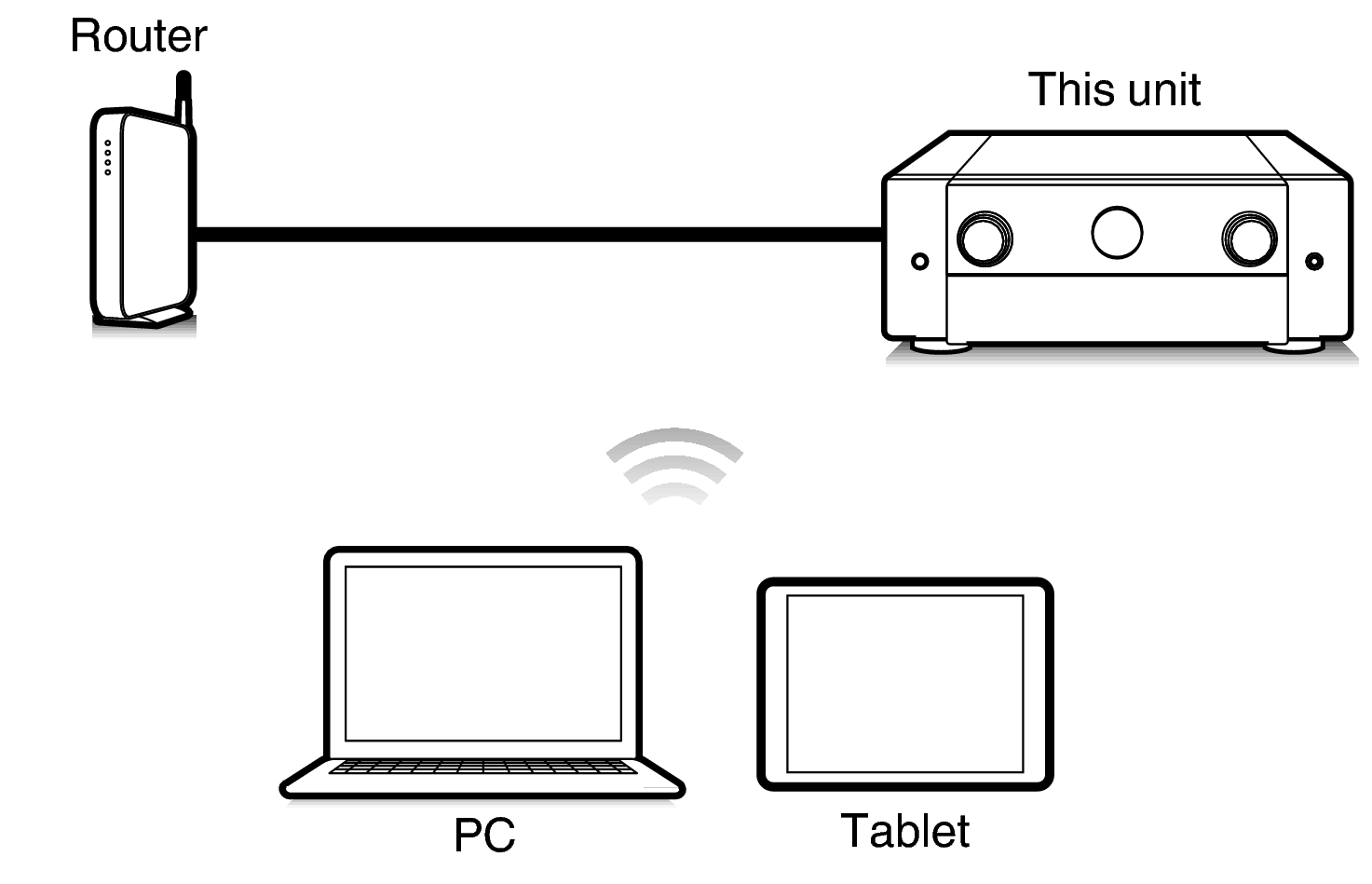

Pict Web C50

This unit and the PC or tablet need to be connected correctly to the network in order to use the web control function.link

Depending on the settings of your security-related software, you may not be able to access this unit from your PC. If this is the case, then change the settings of the security-related software.

Controlling the unit from a web control
