Speaker configuration and “Amp Assign” settings

This unit has a built-in 9-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Speaker Layout” settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback. link

Perform “Speaker Layout” settings to suit the number of rooms and speaker configuration to be installed. link

Playback speaker in each zone		“Amp Assign” settings	Connection page
MAIN ZONE	ZONE2	“Amp Assign” settings	Connection page
5.1-channel playback	2-channel (Pre-out)	Can be set in all “Amp Assign” settings.	link
7.1-channel playback		7.1ch + ZONE2 (Default)	link
9.1-channel playback		9.1ch	link
11.1-channel playback		11.1ch	link
7.1-channel playback (bi-amp connection of front speakers)		7.1ch (Bi-Amp)	link
Second front speakers		7.1ch + Front B	link
7.1-channel playback	2-channel (Speaker out)	7.1ch + ZONE2 (Default)	link
5.1-channel playback (bi-amp connection of front speakers)	2-channel (Speaker out)	5.1ch (Bi-Amp) + ZONE2	link
9.1-channel playback (using this unit as a preamplifier)	Not used	Preamplifier	link

The sound mode that can be selected varies according to the speaker configuration.

The following pages provide basic connection examples.

In addition to the connections described in p. link - link, this unit allows for various speaker connections with the “Speaker Layout” setting.

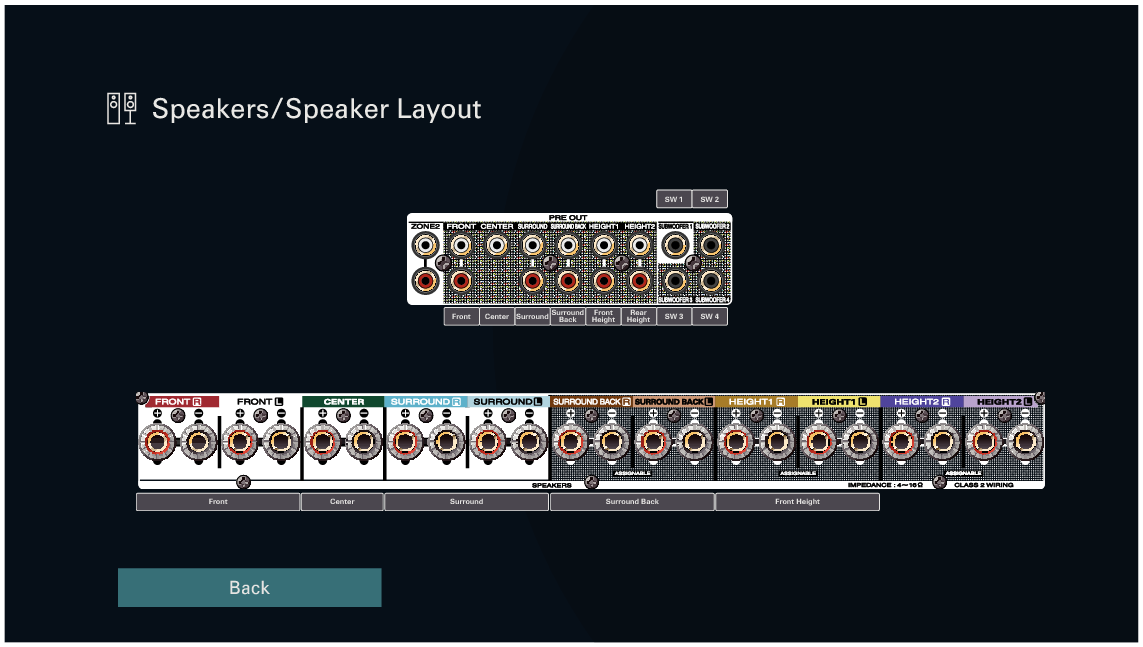

Also refer to the menu screen in “View Terminal Config.” on the “Speaker Layout” setting screen, which shows how to make connections in your environment.

GUI ViewTerminalConfig C50
