Playing back files stored on a PC or NAS

Use this procedure to play music files or playlists stored on DLNA files servers on your local network.

Press HM_Button (HEOS Music).
Use cursor Up/Down to select “Music Servers”, then press ENTER.

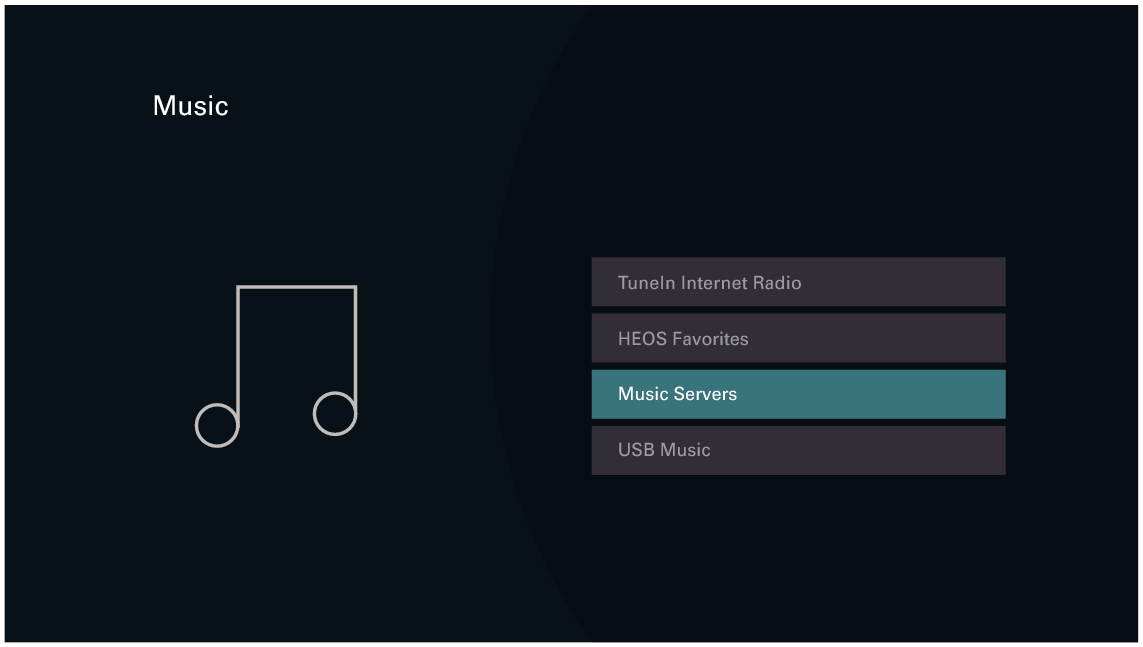

GUI MusicServers Mz
Select the name of your networked PC or NAS (Network Attached Storage) server.
Browse the music on your PC/NAS and select something to play.

When you select something to play you will be asked how you want to queue up your music.

Play Now:

Inserts the item into the queue after the currently playing track and plays the selected item immediately.

Play Now & Replace Queue:

Clears the queue and plays the selected item immediately.

Play Next:

Inserts the item into the queue after the current song and plays it when the current song ends.

Add to End of Queue:

Adds the item to the end of the queue.

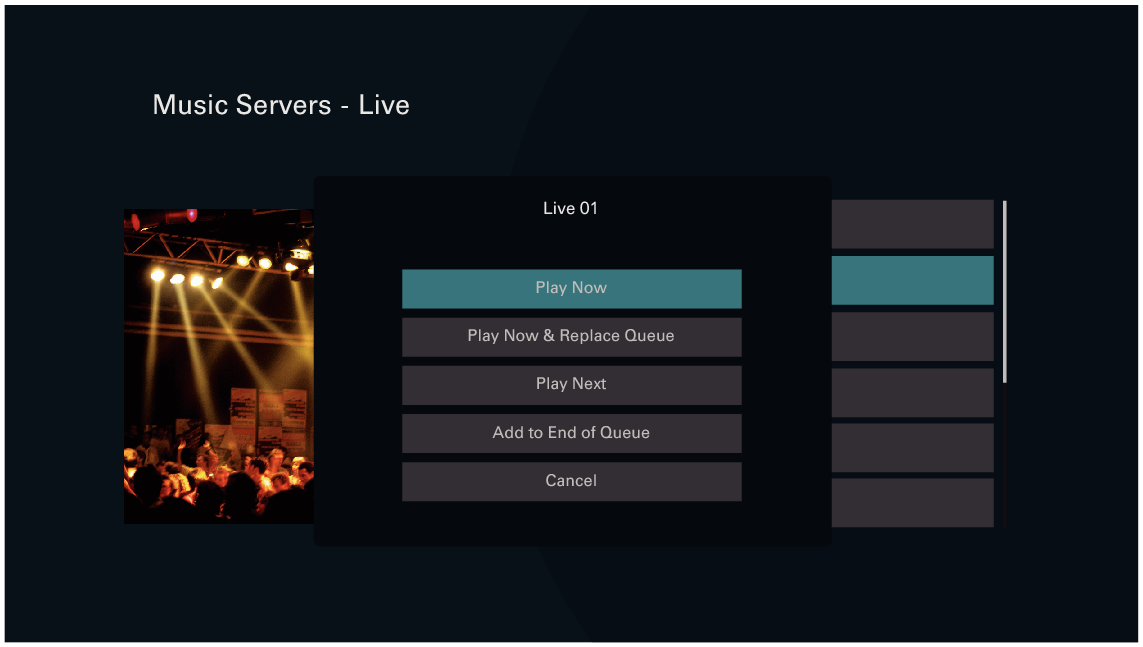

Browse music 02 Mz
Use cursor Up/Down to select the “Play Now” or “Play Now & Replace Queue”, then press ENTER.

Playback starts.

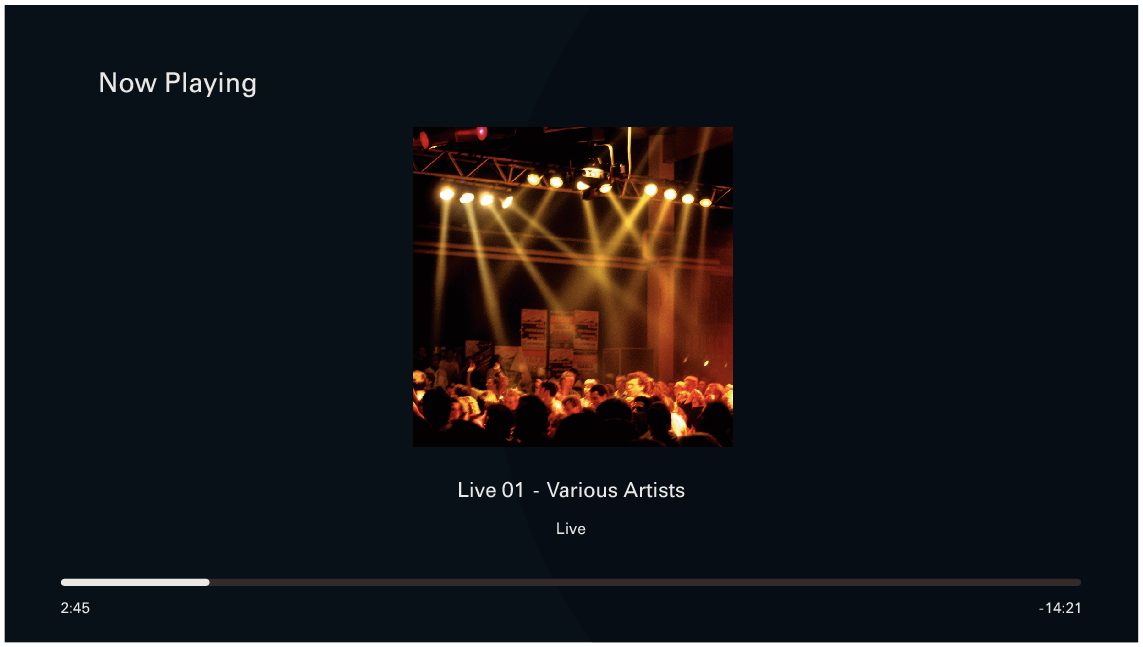

Now Playing 002 Mz

Operation buttons

Function

Operation buttons

Function

PlayPause

Playback / Pause

Skip-Left2 Skip-Right2

Skip to previous track / Skip to next track

CH/PAGE  kurosankaku2 Sankaku-Reverse2

Switch to the previous page/next page in the list display

The display switches between track title, artist name, and album title each time the main unit’s STATUS is pressed.

When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file includes album art data, the album art can be displayed while the music files are playing.

If you use Ver.11 or later of Windows Media Player, the album art for WMA files can be displayed.

NOTE

When playing back music files with your PC or NAS connected through wireless LAN, audio may be interrupted depending on your wireless LAN environment. In this case, connect using a wired LAN.

The order in which the tracks/files are displayed depends on the server specifications. If the tracks/files are not displayed in alphabetical order due to the server specifications, searching by the first letter may not work properly.

Operations accessible through the option menu

Adjusting the audibility of dialog and vocals (Dialog Enhancer)link

Adjusting the volume of each channel to match the input source (Channel Level Adjust)link

Adjusting the tone (Tone)link

Adjusting audio delay (Audio Delay)link

Changing the strength of Tactile Transducer according to the input source (Tactile Transducer)link

Displaying your desired video during audio playback (Video Select)link

Playing the same music in all zones (All Zone Stereo)link

Changing the speaker settings to match the listening environment (Speaker Preset)link

Changing the “Dirac Live Filter” ( Finger See the Dirac Live Manual.)
